Belden 7502A 75 Ohm Flex Vision Coax, (1) 22 AWG (19x34) BC, FPE/PVC Blend, TC Braid Shld 75歐姆 RG-59 超柔軟視覺訊號傳輸同軸電纜

30180492

商品編號: Belden-7502A

Belden7502A 75 Ohm Flex Vision Coax, (1) 22 AWG (19x34) BC, FPE/PVC Blend, TC Braid Shld 75歐姆 RG-59 超柔軟視覺同軸電纜

75 Ohm Flex Vision Coax, (1) 22 AWG (19x34) BC, FPE/PVC Blend, TC Braid Shld

75歐姆的Flex視覺 RG-59 同軸電纜

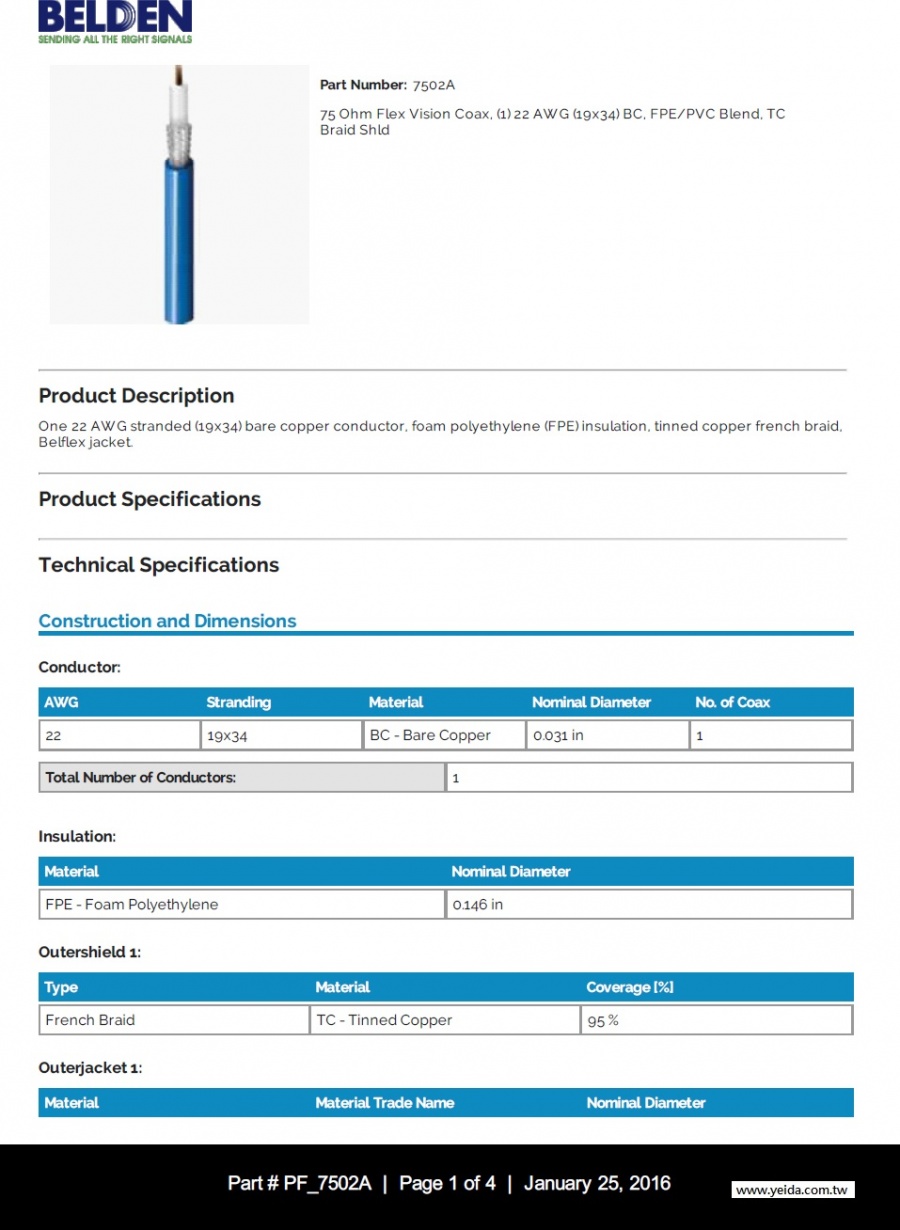

Construction and Dimensions

Conductor:

AWG	Stranding	Material	Nominal Diameter	No. of Coax

19x34

BC - Bare Copper

0.031 in

Total Number of Conductors:

Insulation:

Material	Nominal Diameter

FPE - Foam Polyethylene

0.146 in

Outershield 1:

Type	Material	Coverage [%]

French Braid

TC - Tinned Copper

95 %

Outerjacket 1:

Material	Material Trade Name	Nominal Diameter

PVC Blend - Polyvinyl Chloride Blend

Belflex®

0.242 in

Electrical Characteristics

Conductor DCR:

Nominal Conductor DCR	Nominal Outer Shield DCR

13.4 Ohm/1000ft

6.4 Ohm/1000ft

Capacitance:

Nom. Capacitance Conductor to Shield

18 pF/ft

Impedance:

Nominal Characteristic Impedance

75 Ohm

High Frequency (Nominal/Typical):

Frequency [MHz]	Nom. Insertion Loss

2.2 MHz

0.4 db/100ft

5 MHz

0.5 db/100ft

10 MHz

0.8 db/100ft

30 MHz

1.4 db/100ft

50 MHz

1.8 db/100ft

100 MHz

2.7 db/100ft

Delay:

Nominal Delay	Nominal Velocity of Propagation (VP) [%]

1.3 ns/ft

79 %

High Freq:

Frequency [MHz]

2.2 MHz

5 MHz

10 MHz

30 MHz

50 MHz

100 MHz

Inductance:

Nominal Inductance

0.097 µH/ft

Voltage:

UL Voltage Rating

30 V RMS (UL AWM Style 1354)

Use

Max Recommended Pulling Tension:

38 lbs

Safety

C(UL) Flammability:

FT1

Temperature Range

Operating Temp Range:

-40°C To +80°C

Mechanical Characteristics

Min Bend Radius (Continuous Flexing):

5 in

Min Bend Radius/Minor Axis:

2.5 in

Part Number

Plenum (Y/N):

Standards

CA Prop 65 (CJ for Wire & Cable):

CA Prop 65 (CJ for Wire & Cable)

CSA AWM Specification:

CSA Specification

MII Order #39 (China RoHS):

MII Order #39 (China RoHS)

RG Type:

RG Type

UL AWM Style:

AWM Specification

EU Directive Compliance:

EU Directive 2003/11/EC (BFR)

EU CE Mark:

EU CE Mark
