    首頁 > > Belden- Belden® DataTuff® Cable

    1318SB Upjacketed Category 5e, #24-4pr, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved 雙被覆Cat-5e網路線，＃24-4pr，低煙無鹵護套，CMG-LS，船舶ABS型號認證

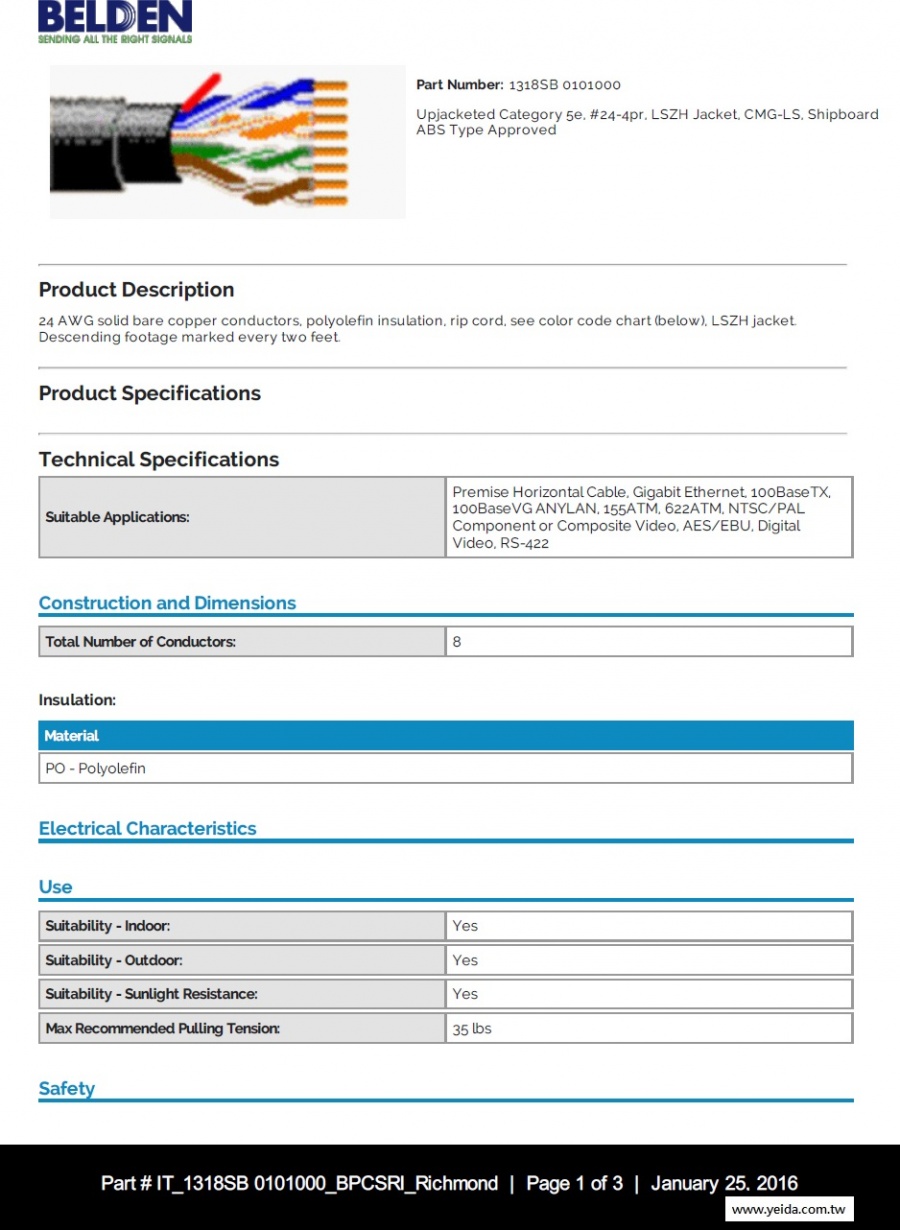

    看原圖
    		30180484




    商品編號: Belden-1318SB

    1318SB Upjacketed Category 5e, #24-4pr, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved 雙被覆Cat-5e網路線，＃24-4pr，低煙無鹵護套，CMG-LS，船舶ABS型號認證



    ★★★★商品說明★★★★

    Upjacketed Category 5e, #24-4pr, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved

    雙被覆Cat-5e網路線，＃24-4pr，低煙無鹵護套，CMG-LS，船舶ABS型號認證

    24 AWG solid bare copper conductors, polyolefin insulation, rip cord, see color code chart (below), LSZH jacket. Descending footage marked every two feet.

    Technical Specifications

    Suitable Applications:

    		Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422

    Construction and Dimensions

    Total Number of Conductors:

    		8

    Insulation:

    Material
    PO - Polyolefin

    Electrical Characteristics

    Use

    Suitability - Indoor:

    		Yes

    Suitability - Outdoor:

    		Yes

    Suitability - Sunlight Resistance:

    		Yes

    Max Recommended Pulling Tension:

    		35 lbs

    Safety

    CSA Flammability:

    		FT4

    ISO/IEC Flammability:

    		60332-1,60332-3-22 (Category A)

    IEEE Flammability:

    		1202

    UL Flammability:

    		UL1685 FT4 Loading, Limited Smoke

    Temperature Range

    Operating Temp Range:

    		-30°C To +105°C

    Mechanical Characteristics

    Min Bend Radius/Minor Axis:

    		3 in

    Part Number

    Plenum (Y/N):

    		No

    Standards

    CA Prop 65 (CJ for Wire & Cable):

    		Yes

    CEC/C(UL) Specification:

    		CMG-LS

    IEEE Specification:

    		Std. 45 Clause 23

    MII Order #39 (China RoHS):

    		Yes

    NEC/(UL) Specification:

    		CMG-LS

    Other Specification:

    		NEMA WC-63.1 Category 5e, UL 444, ABS Type Approval Certificate 06-HS184641H

    EU Directive Compliance:

    		EU Directive 2003/11/EC (BFR)

    EU CE Mark:

    		Yes
