    首頁 > > Belden- Belden® DataTuff® Cable

    1319SB Upjacketed Category 6, #23-4pr, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved 低煙無毒船舶用網路傳輸電纜
    看原圖
    		30180485




    商品編號: BD-1319SB

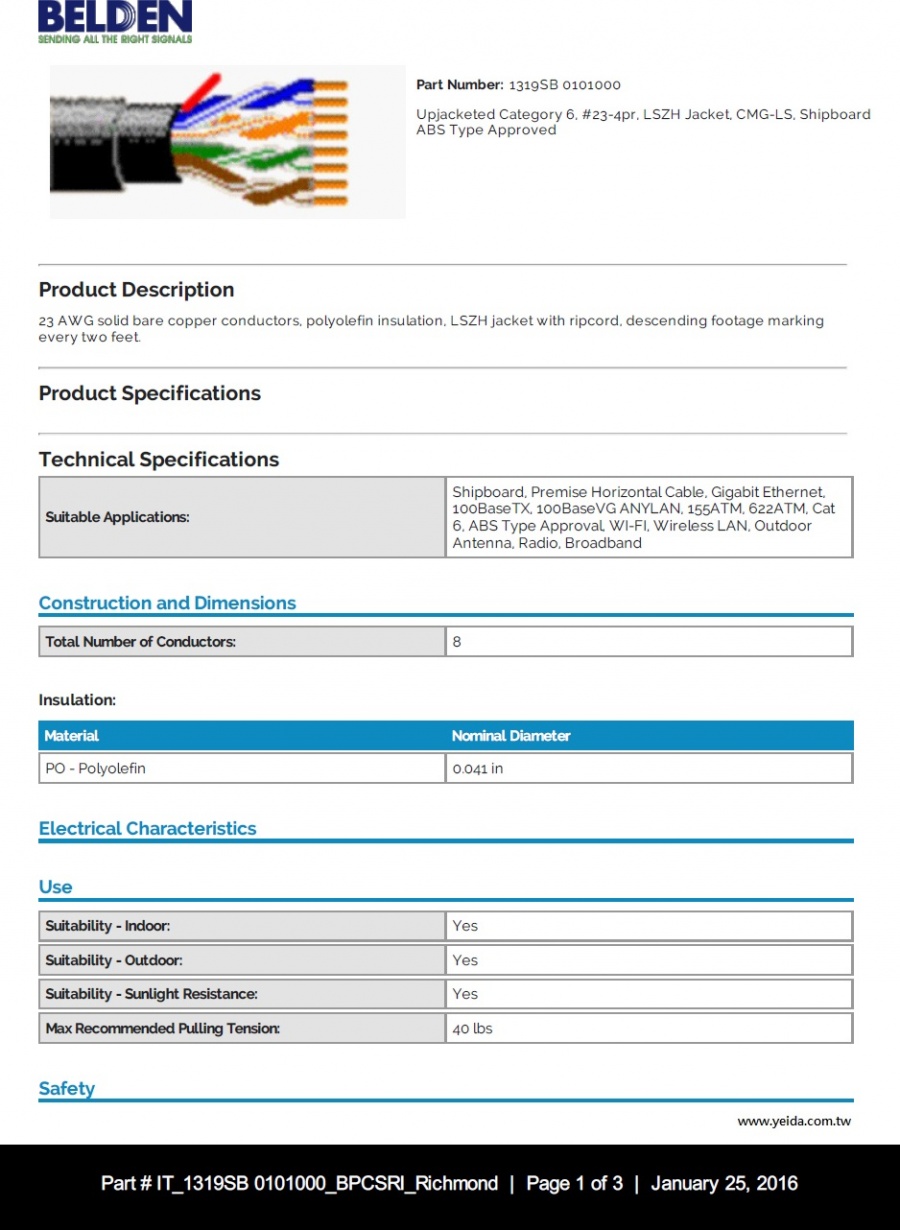

    1319SB Upjacketed Category 6, #23-4pr, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved 低煙無毒船舶用網路傳輸電纜



    ★★★★商品說明★★★★

    1319SB 0101000

    Upjacketed Category 6, #23-4pr, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved

    Technical Specifications

    Suitable Applications:

    		Shipboard, Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, Cat 6, ABS Type Approval, WI-FI, Wireless LAN, Outdoor Antenna, Radio, Broadband

    Construction and Dimensions

    Total Number of Conductors:

    		8

    Insulation:

    MaterialNominal Diameter
    PO - Polyolefin0.041 in

    Electrical Characteristics

    Use

    Suitability - Indoor:

    		Yes

    Suitability - Outdoor:

    		Yes

    Suitability - Sunlight Resistance:

    		Yes

    Max Recommended Pulling Tension:

    		40 lbs

    Safety

    CSA Flammability:

    		FT4,Limited Smoke

    ISO/IEC Flammability:

    		60332-1,60332-3-22 (Category A)

    IEEE Flammability:

    		1202

    UL Flammability:

    		UL1685 FT4 Loading, Limited Smoke

    Temperature Range

    Operating Temp Range:

    		-30°C To +105°C

    Mechanical Characteristics

    Min Bend Radius/Minor Axis:

    		3 in

    Part Number

    Plenum (Y/N):

    		No

    Standards

    Telecommunications Standards:

    		Category 6 - TIA 568.C.2

    CA Prop 65 (CJ for Wire & Cable):

    		Yes

    CEC/C(UL) Specification:

    		CMG-LS

    IEEE Specification:

    		Std. 45 Clause 23

    MII Order #39 (China RoHS):

    		Yes

    NEC/(UL) Specification:

    		CMG-LS

    Other Specification:

    		NEMA WC-63.1 Category 6, UL 444, ABS Type Approval Certificate 06-HS184641G

    EU Directive Compliance:

    		EU Directive 2003/11/EC (BFR)

    EU CE Mark:

    		Yes
