商品編號: Belden-Siamese-Cat5e

Belden-Siamese-Cat5e CCTV PTZ Camera Cable Siamese and Round UTP Composite Cables, Riser- and Plenum-rated (CAT5e + 2C電源線)複合式監控電纜

Composite Surveillance Monitoring Cables
To suit your CCTV/Surveillance installation needs, Belden® offers Banana Peel® Composite cables
for pan/tilt/zoom (PTZ) cameras. Video is achieved with coax, optical fiber or UTP cables; power
and control cables complete the composite

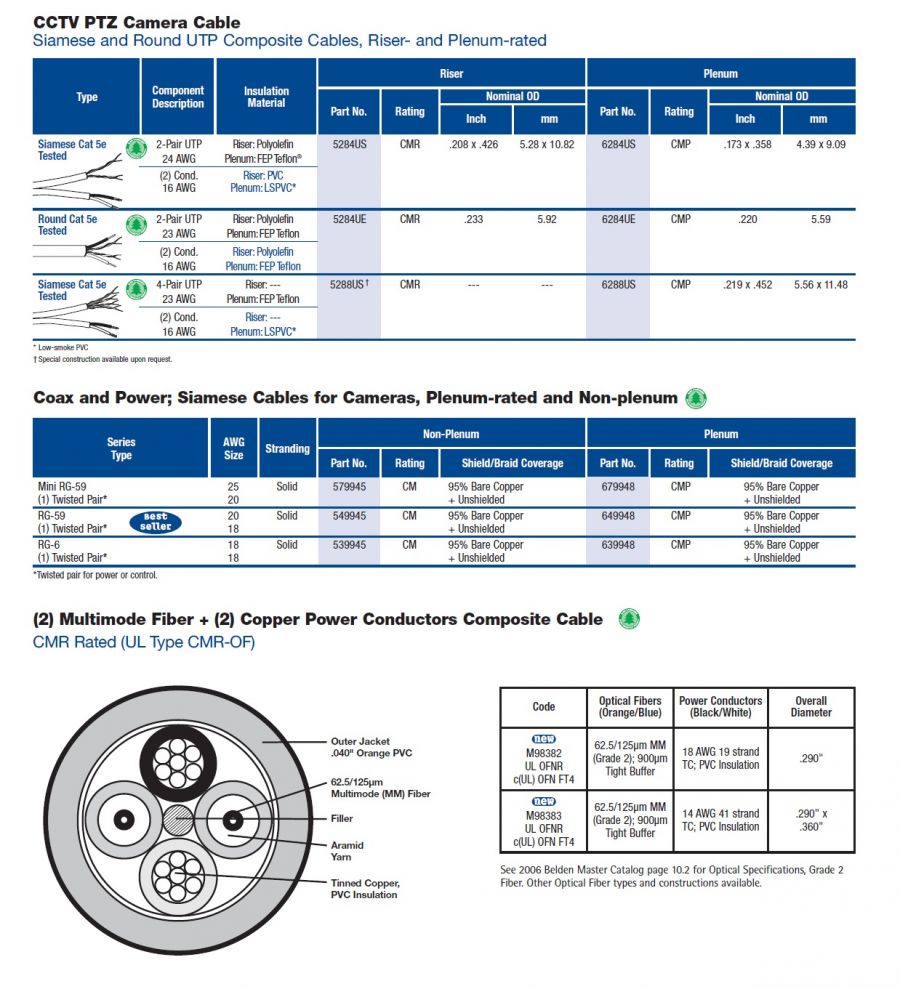

PTZ Camera Cable

Siamese and Round UTP Composite Cables, Riser- and Plenum-rated

Wherever you look today — our offices and
public spaces such as hospitals, airports,
amusement parks, retail establishments,
universities, casinos, sports stadiums and
correctional facilities all have a surveillance
system in place to monitor the people visiting
their facilities and the people working
within them.
　

But whatever the type of equipment used,
the objective of these systems is clear:
protect the people involved with the
facility and the facility’s assets.
　

Surveillance System Camera
Technology

Although traditional analog cameras are
frequently used in security systems, the use
of Digital Signal Processed (DSP) cameras is
trending upwards — in part because they
produce high quality images and they are
better able to handle diverse or extreme
lighting conditions. Also, camera users
typically have more control setting options,
plus DVRs (digital video recorders) enable users
to quickly sort through their recorded images,
while requiring less storage space than
videotapes. Both DSP cameras and DVRs could
be handled with existing coax technology.
　

From an applications standpoint, there are
two types of security cameras available: Fixed
and PTZ (pan/tilt/zoom). If you consider a
CCTV set-up in a casino, the fixed cameras
would be appropriate for high-risk, fixed
areas — entrances and exits, cash registers, etc.
　

The PTZ cameras would be more appropriate
for the gaming tables since the cameras must
be made to move or zoom in on a particular
exchange at the table or a particular customer.
　

New Generation Banana Peel
Composite Cables For PTZ
Installations

For both riser and plenum PTZ applications,
Belden offers composite cables that feature
its revolutionary new Banana Peel design.
Banana Peel PTZ cables offer the following:
• No overall jacket — Banana Peel cables
feature a patent-pending design that affixes
the individual cables to a center spline,
eliminating the need for an overall jacket.

• The absence of the overall jacket eliminates
a whole step in the termination process:
the stripping of the jacket.
• Reduces installation time by requiring less
set-up, pulling and termination time with
the Banana Peel versus individual cables.
• Short circuits, caused by contact with the
center conductor while stripping off the
outer jacket can be prevented.
• The individual cables are color-coded for
easy identification.
• Eliminates the need for pulling several
individual components by using an all-inone
Banana Peel cable (reducing installation
costs and time).
