商品編號: Thermax-20-FWKK-1932 Thermax-20-FWKK-1932, MIL-W-25038/3 (Thermazone IIIK) wire-high-temperature, abrasion resistant(27% Nickel Coated Copper) Awg20(-55 to 260 °C, 600V) 鍍鎳鐵氟龍耐高低溫惡劣環境火焰抗磨損軍規航空航天電線(Awg12 to 22)

★★★★商品說明★★★★

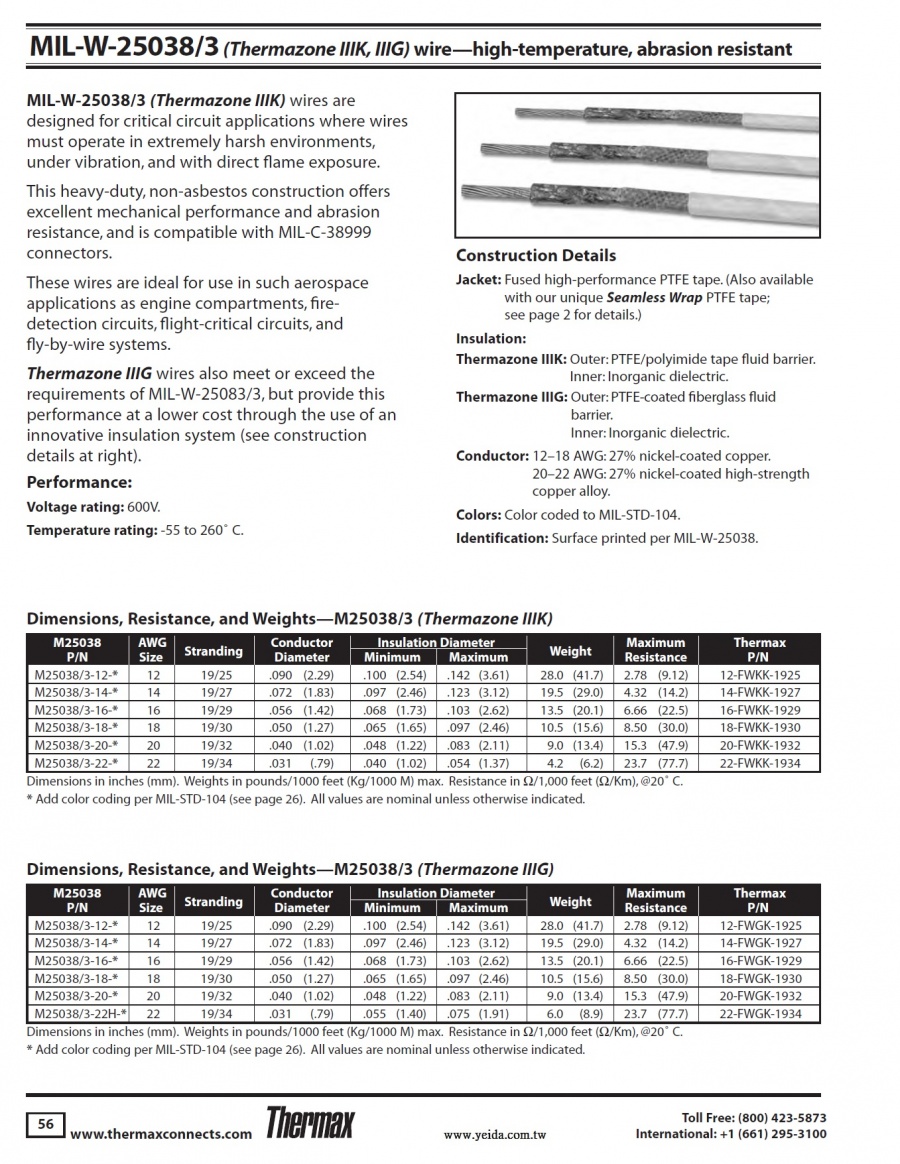

MIL-W-25038/3 (Thermazone IIIK) wire-high-temperature, abrasion resistant
Thermazone IIIK wires are designed for critical circuit applications where wires must operate in extremely harsh environments, under vibration, and with direct flame exposure. Thermazone IIIG wires also meet or exceed the requirements of MIL-W-25083/3, but provides this performance at a lower cost through the use of an innovative insulation system.
　

Specifications

Voltage rating - volts 600 　 Temperature rating °C -55 to 260 　 Conductor Size (AWG) 20 　 Conductor Diameter - inches (mm) .040 (1.02) 　 Conductor 27% Nickel Coated High Strength Copper Alloy 　 Stranding 19/32 　 Insulation Outer: PTFE/polyimide tape fluid barrier. Inner: Inorganic dielectric. 　 Insulation Diameter Minimum - inches (mm) .048 (1.22) 　 Insulation Diameter Maximum - inches (mm) .083 (2.11) 　 Jacket material Fused High Performance PTFE tape 　 Maximum Resistance Ohm/1,000 feet (ohm/Km), @ 20°C 15.3 (47.9) 　 Weight - pounds/1000 feet (Kg/1000m) 9.0 (13.4)

Item #		Conductor Size (AWG)		Conductor Diameter - inches (mm)		Conductor		Stranding		Insulation Diameter Minimum - inches (mm)		Insulation Diameter Maximum - inches (mm)		Maximum Resistance Ohm/1,000 feet (ohm/Km), @ 20°C
	12-FWKK-1925	12		.090 (2.29)		27% Nickel Coated Copper		19/25		.100 (2.54)		.142 (3.61)		2.78 (9.12)
	14-FWKK-1927	14		.072 (1.83)		27% Nickel Coated Copper		19/27		.097 (2.46)		.123 (3.12)		4.32 (14.2)
	16-FWKK-1929	16		.056 (1.42)		27% Nickel Coated Copper		19/29		.068 (1.73)		.103 (2.62)		6.66 (22.5)
	18-FWKK-1930	18		.050 (1.27)		27% Nickel Coated Copper		19/30		.065 (1.65)		.097 (2.46)		8.50 (30.0)
	20-FWKK-1932	20		.040 (1.02)		27% Nickel Coated High Strength Copper Alloy		19/32		.048 (1.22)		.083 (2.11)		15.3 (47.9)
	22-FWKK-1934	22		.031 (.79)		27% Nickel Coated High Strength Copper Alloy		19/34		.040 (1.02)		.054 (1.37)		23.7 (77.7)
