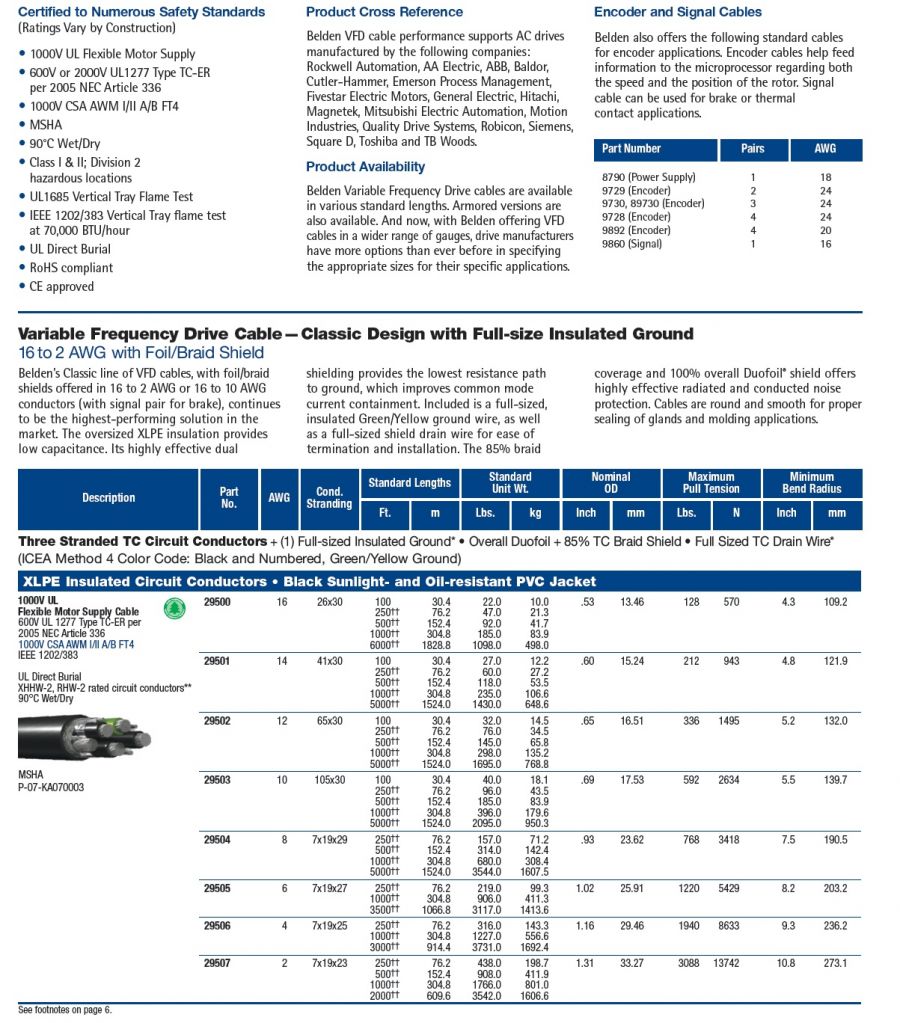

Belden-29500 Awg16 3C with Foil/Braid Shield- 1000V UL Flexible Motor Supply Cable(變頻馬達控制線)

5077490

商品編號: Belden-29500

Belden-29500 Awg16 3C with Foil/Braid Shield- 1000V UL Flexible Motor Supply Cable(柔性變頻馬達驅動控制電纜)

Multi-Conductor - 1000V UL Flexible Motor Supply Cable
4-cond. (3) stranded tinned copper circuit conductors, (1) ground wire with PVC insulation, XLPE insulation, Overall Duofoil® (100% coverage) plus a tinned copper braid shield (85% coverage) , tinned copper drain wire, Oil & Sun-resistant PVC jacket.

Usage (Overall)

Suitable Applications:

AC Motor Drives, VFD, Variable Frequency Drive (變頻馬達驅動控制線)

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
3	16	26x30	TC - Tinned Copper

Ground Wire

Ground Wire (Y/N):

Ground Wire AWG:

Ground Wire Stranding:

26x30

Ground Wire Conductor Material:

TC - Tinned Copper

Ground Wire Insulation Material:

PVC - Polyvinyl Chloride

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
XLPE - Cross Linked Polyethylene	.045

Insulation Resistance:

300 Megaohms/1000 ft.

Outer Shield

Outer Shield Material:

Layer #	Outer Shield Trade Name	Type	Outer Shield Material	Coverage (%)
1	Duofoil®	Tape	Aluminum Foil-Polyester Tape	100
2		Braid	TC - Tinned Copper	85

Outer Shield Drain Wire AWG:

AWG	Stranding	Drain Wire Conductor Material
16	26x30	TC - Tinned Copper

Outer Jacket

Outer Jacket Material:

Outer Jacket Material

PVC - Polyvinyl Chloride

Overall Cabling

Overall Nominal Diameter:

0.530 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-40°C To +90°C Dry, +90°C Wet

UL Temperature Rating:

90°C Wet/Dry

Bulk Cable Weight:

160 lbs/1000 ft.

Max. Recommended Pulling Tension:

128 lbs.

Min. Bend Radius (Install)/Minor Axis:

4.250 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

RHW-2 Type, TC-ER, Unlisted Singles, WTTC

NEC Articles:

336 - ER

CSA Specification:

1000 V AWM I/II A/B

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

10/13/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

PMSHA Specification:

P-07-KA070003

Other Specification:

1000V UL Flexible Motor Supply Cable

Flame Test

UL Flame Test:

UL1685 UL Loading

CSA Flame Test:

FT4

IEEE Flame Test:

1202, IEEE 383 Vertical Tray Flame Test (70,000 BTU)

Suitability

Suitability - Indoor:

Yes

Suitability - Outdoor:

Yes

Suitability - Burial:

Yes

Sunlight Resistance:

Yes

Oil Resistance:

Yes

★★★★商品規格描述★★★★

Electrical Characteristics (Overall)

Nom. Characteristic Impedance:

Impedance (Ohm)

Nom. Inductance:

Inductance (µH/ft)

.2298

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft)

Nom. Capacitance Cond. to Other Conductor & Shield:

Capacitance (pF/ft)

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

4.0

Max. Operating Voltage - UL:

Voltage

1000 V RMS (Flexible Motor Supply Cable)

600 V RMS (NEC Type TC)

Max. Recommended Current:

Current

18 Amps per conductor @ 25°C
