Pre-Connectorized Assemblies

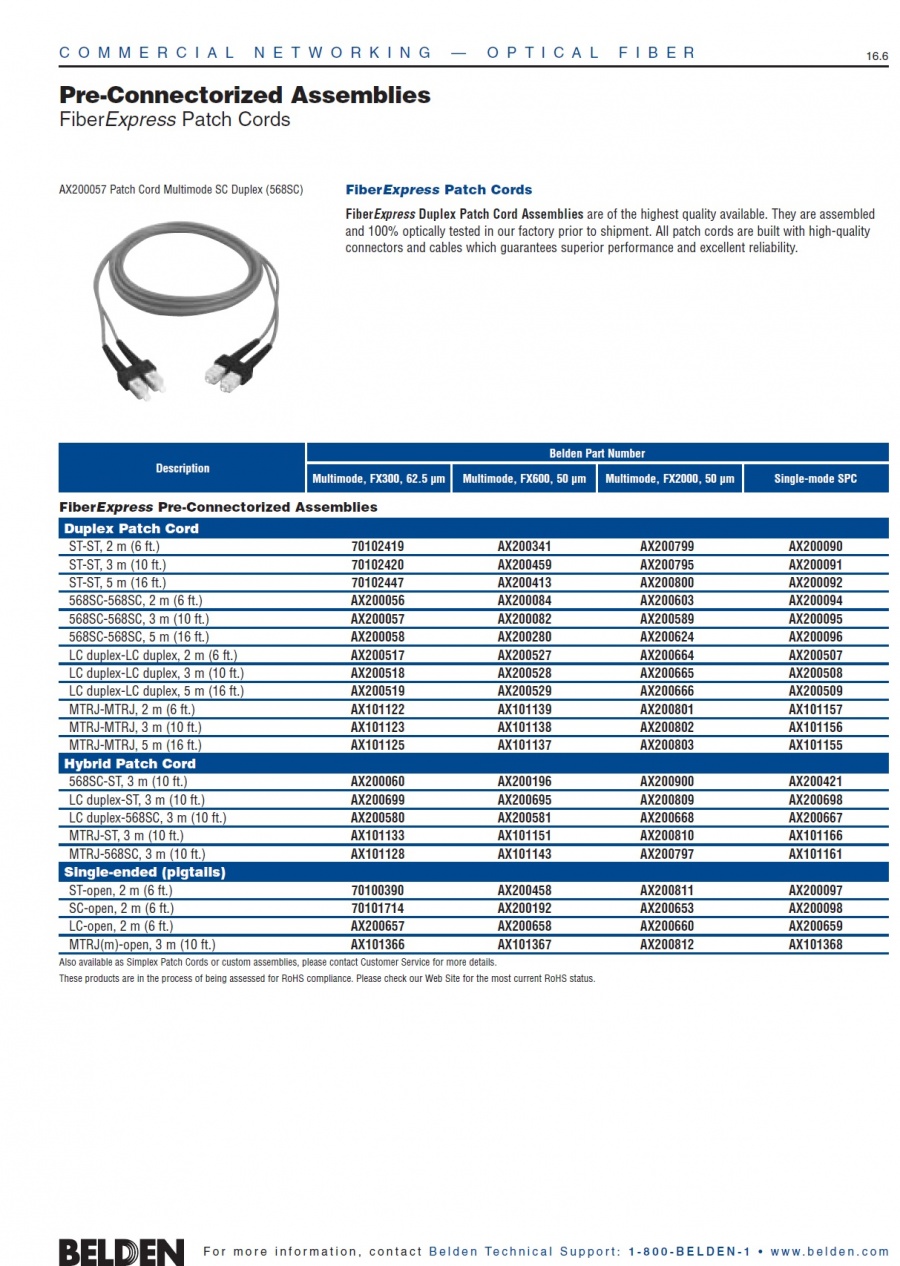

FiberExpress Patch Cords

FiberExpress Patch Cords
FiberExpress Duplex Patch Cord Assemblies are of the highest quality available. They are assembled
and 100% optically tested in our factory prior to shipment. All patch cords are built with high-quality
connectors and cables which guarantees superior performance and excellent reliability.

FiberExpress Pre-Connectorized Assemblies

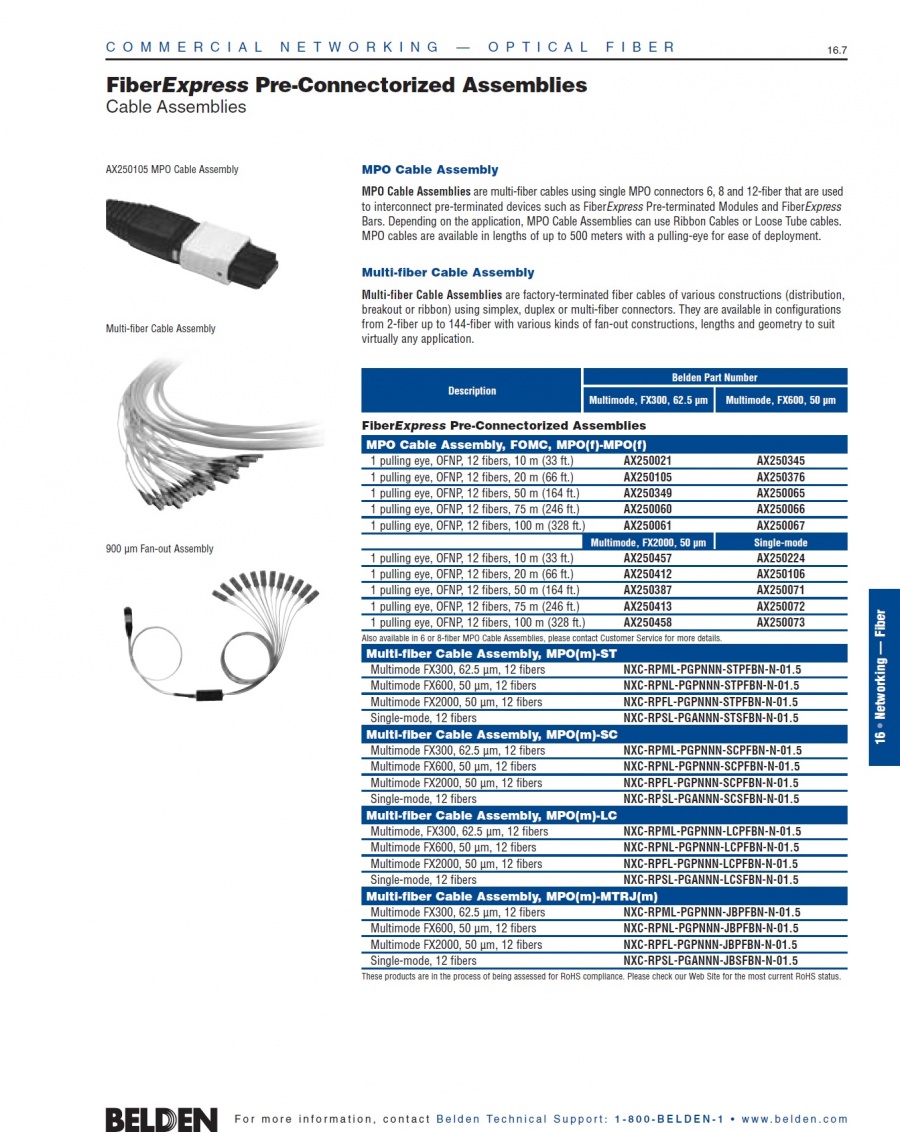

Cable Assemblies

MPO Cable Assembly
MPO Cable Assemblies are multi-fiber cables using single MPO connectors 6, 8 and 12-fiber that are used
to interconnect pre-terminated devices such as FiberExpress Pre-terminated Modules and FiberExpress
Bars. Depending on the application, MPO Cable Assemblies can use Ribbon Cables or Loose Tube cables.
MPO cables are available in lengths of up to 500 meters with a pulling-eye for ease of deployment.
　

Multi-fiber Cable Assembly
Multi-fiber Cable Assemblies are factory-terminated fiber cables of various constructions (distribution,
breakout or ribbon) using simplex, duplex or multi-fiber connectors. They are available in configurations
from 2-fiber up to 144-fiber with various kinds of fan-out constructions, lengths and geometry to suit
virtually any application.

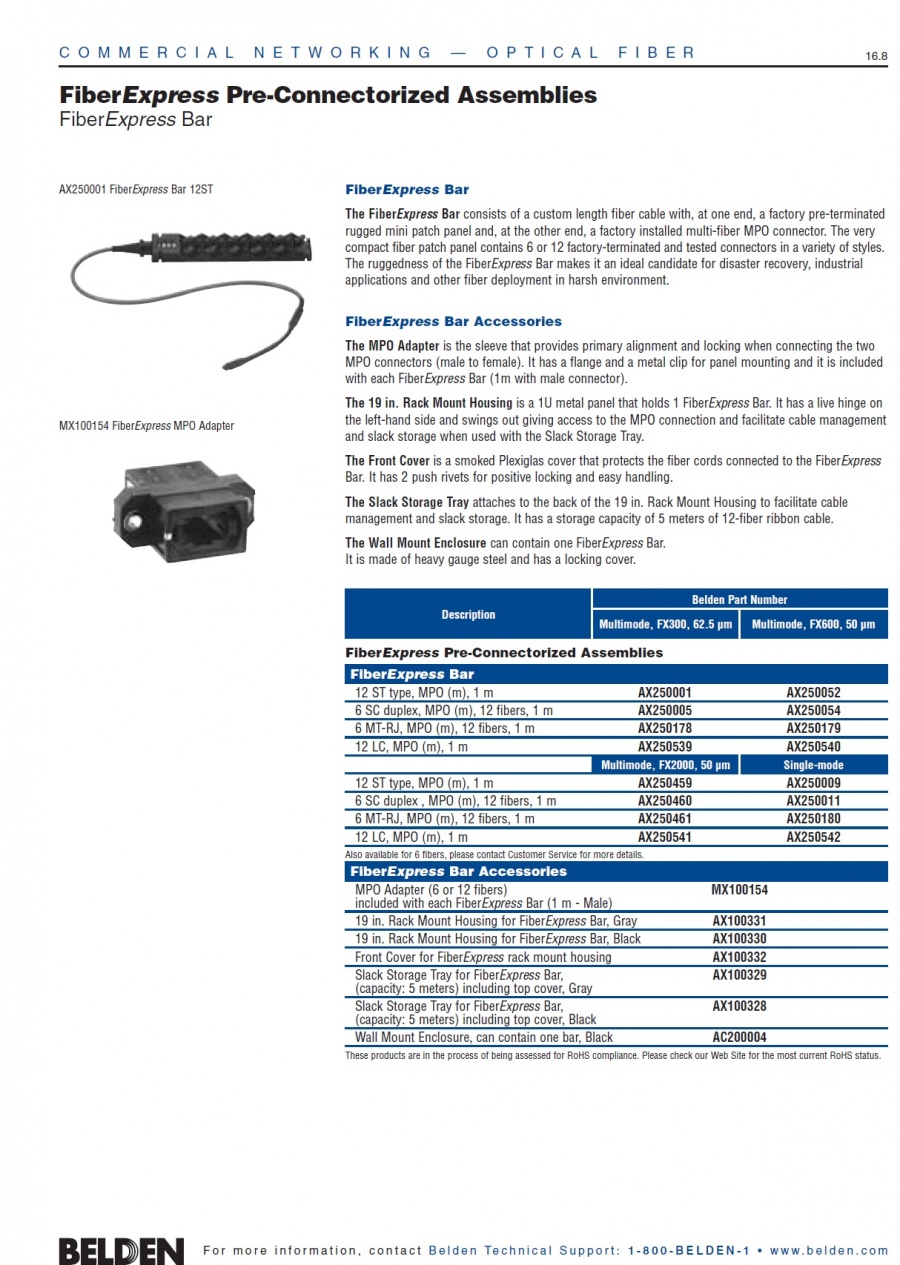

FiberExpress Bar
The FiberExpress Bar consists of a custom length fiber cable with, at one end, a factory pre-terminated
rugged mini patch panel and, at the other end, a factory installed multi-fiber MPO connector. The very
compact fiber patch panel contains 6 or 12 factory-terminated and tested connectors in a variety of styles.
The ruggedness of the FiberExpress Bar makes it an ideal candidate for disaster recovery, industrial
applications and other fiber deployment in harsh environment.
　

FiberExpress Bar Accessories
The MPO Adapter is the sleeve that provides primary alignment and locking when connecting the two
MPO connectors (male to female). It has a flange and a metal clip for panel mounting and it is included
with each FiberExpress Bar (1m with male connector).
　

The 19 in. Rack Mount Housing is a 1U metal panel that holds 1 FiberExpress Bar. It has a live hinge on
the left-hand side and swings out giving access to the MPO connection and facilitate cable management
and slack storage when used with the Slack Storage Tray.
　

The Front Cover is a smoked Plexiglas cover that protects the fiber cords connected to the FiberExpress
Bar. It has 2 push rivets for positive locking and easy handling.
T

he Slack Storage Tray attaches to the back of the 19 in. Rack Mount Housing to facilitate cable
management and slack storage. It has a storage capacity of 5 meters of 12-fiber ribbon cable.
The Wall Mount Enclosure can contain one FiberExpress Bar.
It is made of heavy gauge steel and has a locking cover.
