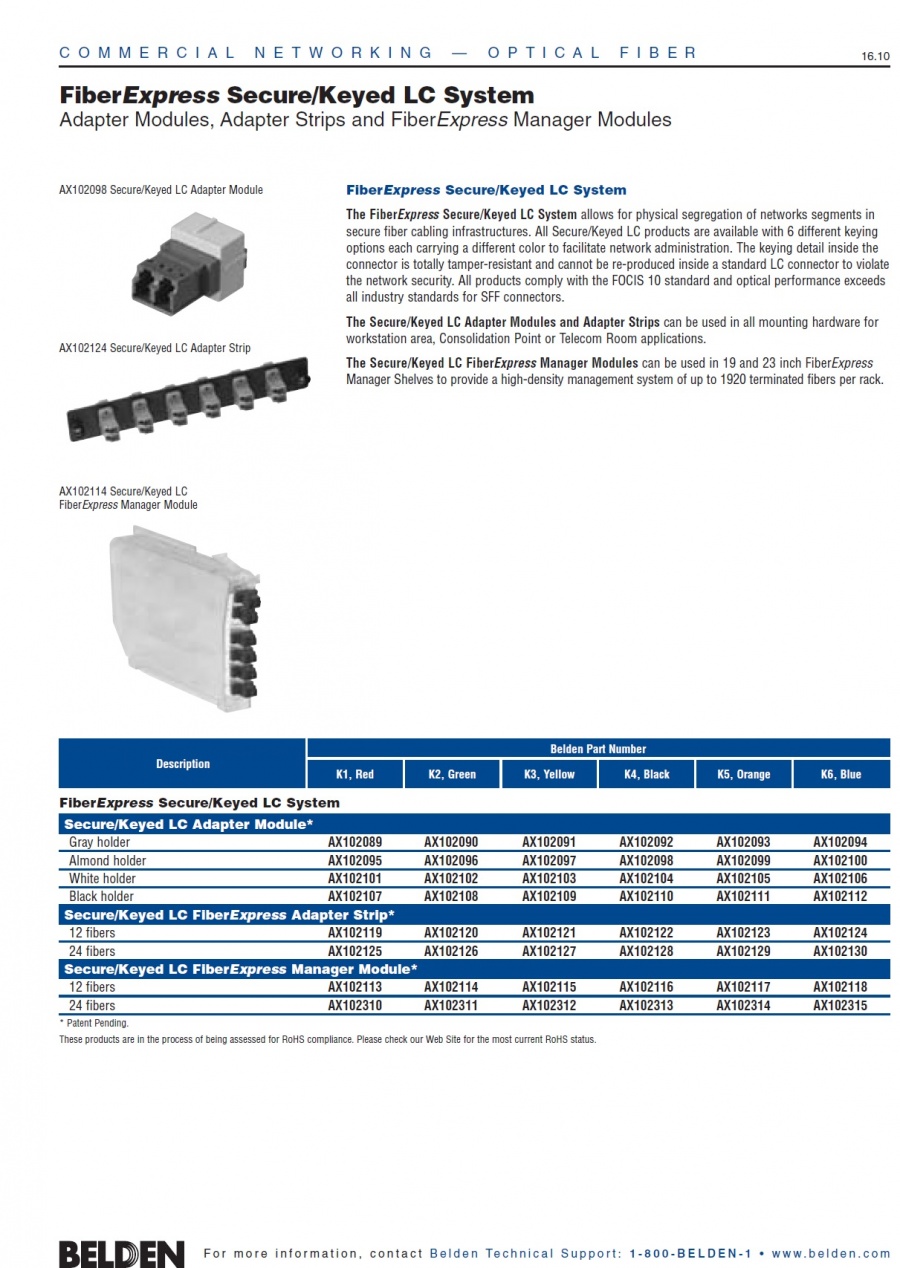

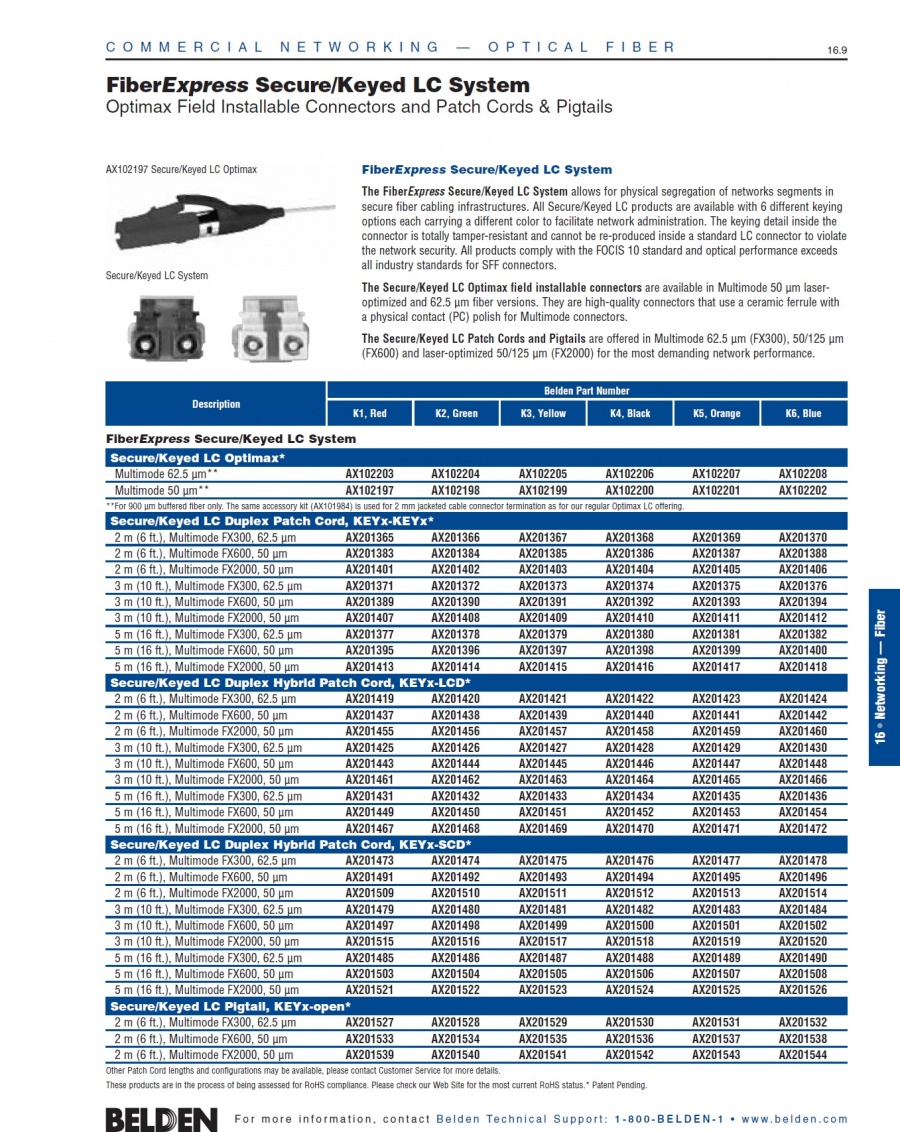

FiberExpress Secure/Keyed LC System
Optimax Field Installable Connectors and Patch Cords & Pigtails
　

Belden-AX102197 Secure/Keyed LC Optimax
             Secure/Keyed LC System

Adapter Modules, Adapter Strips and FiberExpress Manager Modules

Belden-AX102098 Secure/Keyed LC Adapter Module
Belden-AX102124 Secure/Keyed LC Adapter Strip

Belden-AX102114 Secure/Keyed LC
             FiberExpress Manager Module

Rack Components and Modules

Belden-AX100934 FiberExpress Manager Shelf
Belden-AX101943 FiberExpress Manager 1U Rack Mount
            Patch Panel
Belden-AX102032 FiberExpress Manager 1U Cable
            Management Accessory
Belden-AX101525 Connector Module Pre-terminated
            MPO-MT-RJ

FiberExpress Secure/Keyed LC System
Optimax Field Installable Connectors and Patch Cords & Pigtails
　

FiberExpress Secure/Keyed LC System
The FiberExpress Secure/Keyed LC System allows for physical segregation of networks segments in
secure fiber cabling infrastructures. All Secure/Keyed LC products are available with 6 different keying
options each carrying a different color to facilitate network administration. The keying detail inside the
connector is totally tamper-resistant and cannot be re-produced inside a standard LC connector to violate
the network security. All products comply with the FOCIS 10 standard and optical performance exceeds
all industry standards for SFF connectors.
　

The Secure/Keyed LC Optimax field installable connectors are available in Multimode 50 μm laseroptimized
and 62.5 μm fiber versions. They are high-quality connectors that use a ceramic ferrule with
a physical contact (PC) polish for Multimode connectors.
　

The Secure/Keyed LC Patch Cords and Pigtails are offered in Multimode 62.5 μm (FX300), 50/125 μm
(FX600) and laser-optimized 50/125 μm (FX2000) for the most demanding network performance.

Adapter Modules, Adapter Strips and FiberExpress Manager Modules

FiberExpress Secure/Keyed LC System
The FiberExpress Secure/Keyed LC System allows for physical segregation of networks segments in
secure fiber cabling infrastructures. All Secure/Keyed LC products are available with 6 different keying
options each carrying a different color to facilitate network administration. The keying detail inside the
connector is totally tamper-resistant and cannot be re-produced inside a standard LC connector to violate
the network security. All products comply with the FOCIS 10 standard and optical performance exceeds
all industry standards for SFF connectors.
　

The Secure/Keyed LC Adapter Modules and Adapter Strips can be used in all mounting hardware for
workstation area, Consolidation Point or Telecom Room applications.
　

The Secure/Keyed LC FiberExpress Manager Modules can be used in 19 and 23 inch FiberExpress
Manager Shelves to provide a high-density management system of up to 1920 terminated fibers per rack.

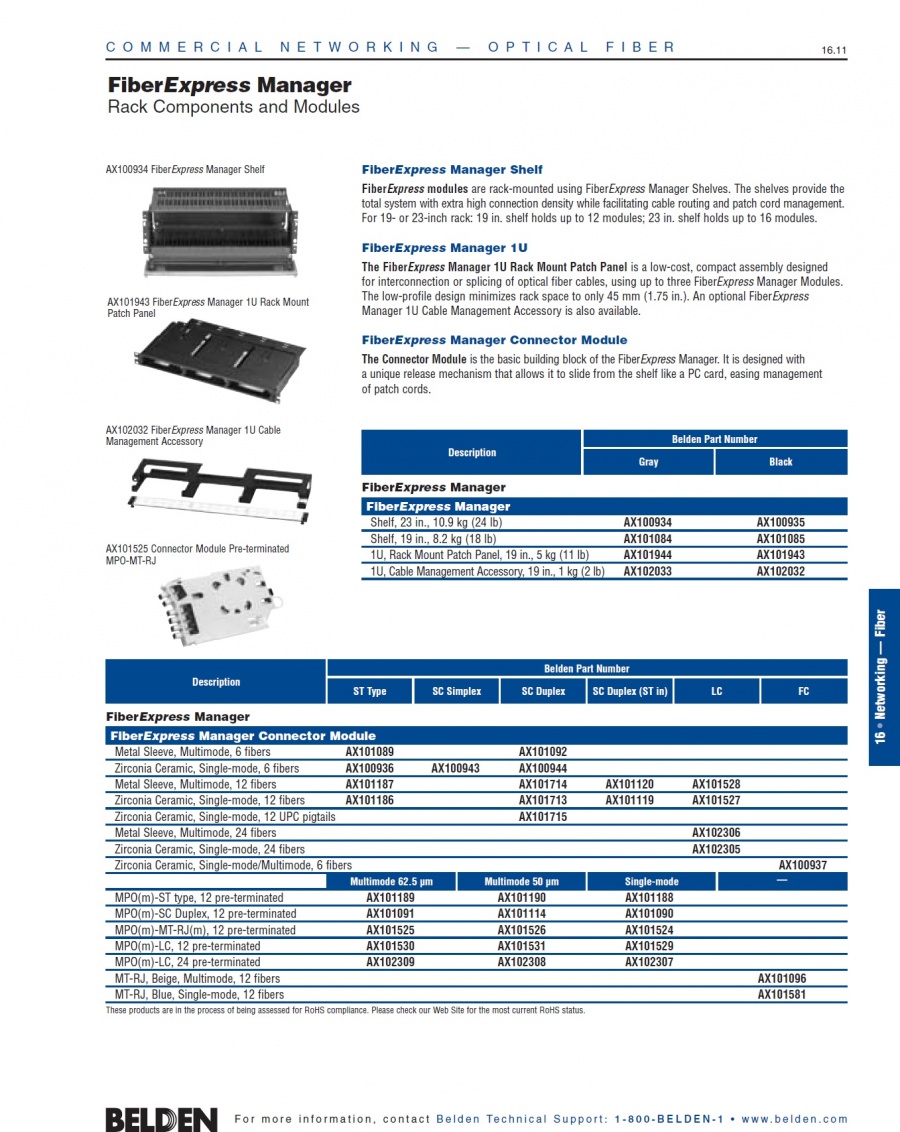

Rack Components and Modules
FiberExpress Manager Shelf
FiberExpress modules are rack-mounted using FiberExpress Manager Shelves. The shelves provide the
total system with extra high connection density while facilitating cable routing and patch cord management.
For 19- or 23-inch rack: 19 in. shelf holds up to 12 modules; 23 in. shelf holds up to 16 modules.
　

FiberExpress Manager 1U
The FiberExpress Manager 1U Rack Mount Patch Panel is a low-cost, compact assembly designed
for interconnection or splicing of optical fiber cables, using up to three FiberExpress Manager Modules.
The low-profile design minimizes rack space to only 45 mm (1.75 in.). An optional FiberExpress
Manager 1U Cable Management Accessory is also available.
　

FiberExpress Manager Connector Module
The Connector Module is the basic building block of the FiberExpress Manager. It is designed with
a unique release mechanism that allows it to slide from the shelf like a PC card, easing management
of patch cords.
