FiberExpress Outlets
MediaFlex Plates and Inserts

Belden-AX101869 MediaFlex Plate, Double Gang
Belden-AX101874 MediaFlex Adapter Box, Double Gang
Belden-AX101756 MediaFlex MDVO (style) Insert,
             2-port, Angled
Belden-AX101937 MediaFlex SC Duplex Insert, Angled

MDVO Multimedia Outlet Boxes & Modules and Multi-User Outlet Boxes

Belden-A0643205 MDVO Multimedia Outlet Box,
              shown here as terminated
Belden-A0407005 MDVO SC Fiber Module
Belden-A0649254 SC Duplex Adapter
Belden-AX101467 MDVO MT-RJ Fiber Module
Belden-AX100222 Multi-User Outlet Box,
              shown here with modules                                                                                                                                                                                  Belden-A0407010 MDVO ST Compatible Fiber Module

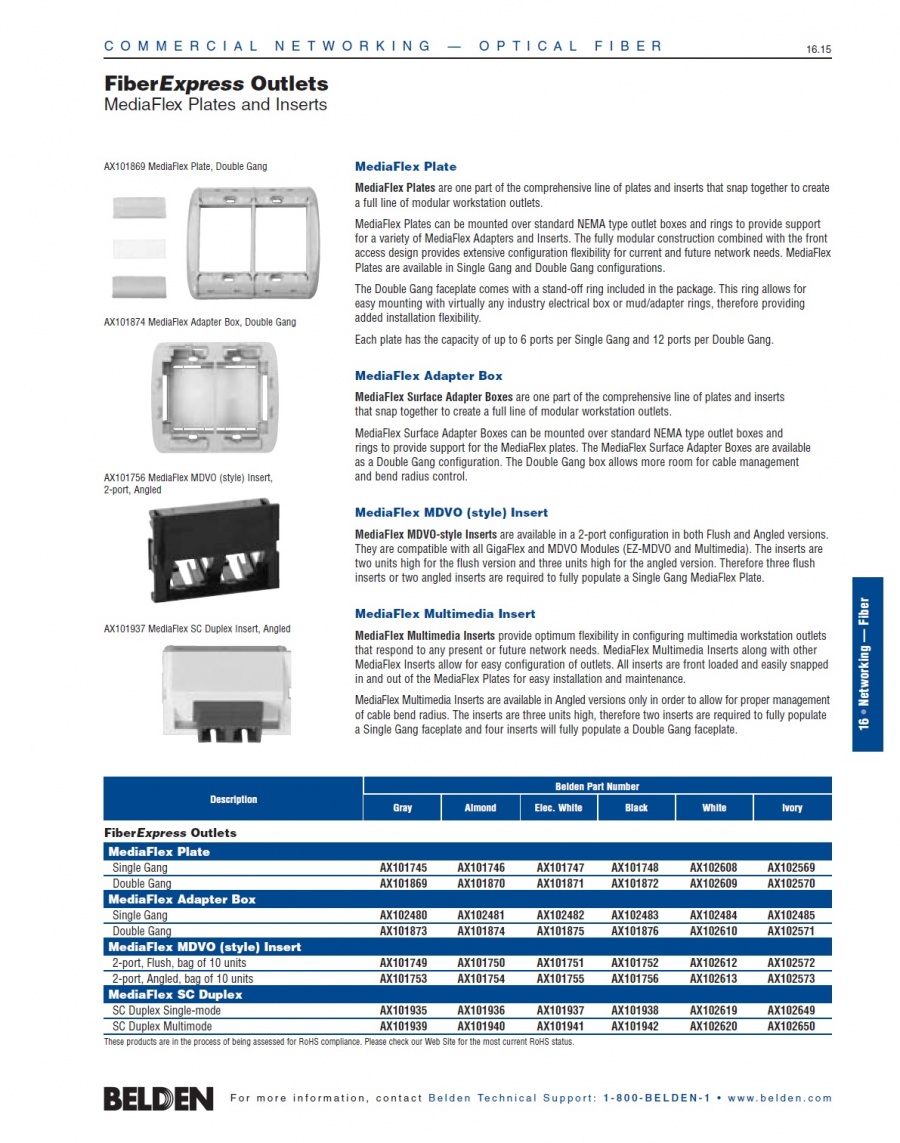

FiberExpress Outlets
MediaFlex Plates and Inserts
　

MediaFlex Plate
MediaFlex Plates are one part of the comprehensive line of plates and inserts that snap together to create
a full line of modular workstation outlets.
　

MediaFlex Plates can be mounted over standard NEMA type outlet boxes and rings to provide support
for a variety of MediaFlex Adapters and Inserts. The fully modular construction combined with the front
access design provides extensive configuration flexibility for current and future network needs. MediaFlex
Plates are available in Single Gang and Double Gang configurations.
　

The Double Gang faceplate comes with a stand-off ring included in the package. This ring allows for
easy mounting with virtually any industry electrical box or mud/adapter rings, therefore providing
added installation flexibility.
　

Each plate has the capacity of up to 6 ports per Single Gang and 12 ports per Double Gang.
　

MediaFlex Adapter Box
MediaFlex Surface Adapter Boxes are one part of the comprehensive line of plates and inserts
that snap together to create a full line of modular workstation outlets.
　

MediaFlex Surface Adapter Boxes can be mounted over standard NEMA type outlet boxes and
rings to provide support for the MediaFlex plates. The MediaFlex Surface Adapter Boxes are available
as a Double Gang configuration. The Double Gang box allows more room for cable management
and bend radius control.
　

MediaFlex MDVO (style) Insert
MediaFlex MDVO-style Inserts are available in a 2-port configuration in both Flush and Angled versions.
They are compatible with all GigaFlex and MDVO Modules (EZ-MDVO and Multimedia). The inserts are
two units high for the flush version and three units high for the angled version. Therefore three flush
inserts or two angled inserts are required to fully populate a Single Gang MediaFlex Plate.
　

MediaFlex Multimedia Insert
MediaFlex Multimedia Inserts provide optimum flexibility in configuring multimedia workstation outlets
that respond to any present or future network needs. MediaFlex Multimedia Inserts along with other
MediaFlex Inserts allow for easy configuration of outlets. All inserts are front loaded and easily snapped
in and out of the MediaFlex Plates for easy installation and maintenance.
　

MediaFlex Multimedia Inserts are available in Angled versions only in order to allow for proper management
of cable bend radius. The inserts are three units high, therefore two inserts are required to fully populate
a Single Gang faceplate and four inserts will fully populate a Double Gang faceplate.

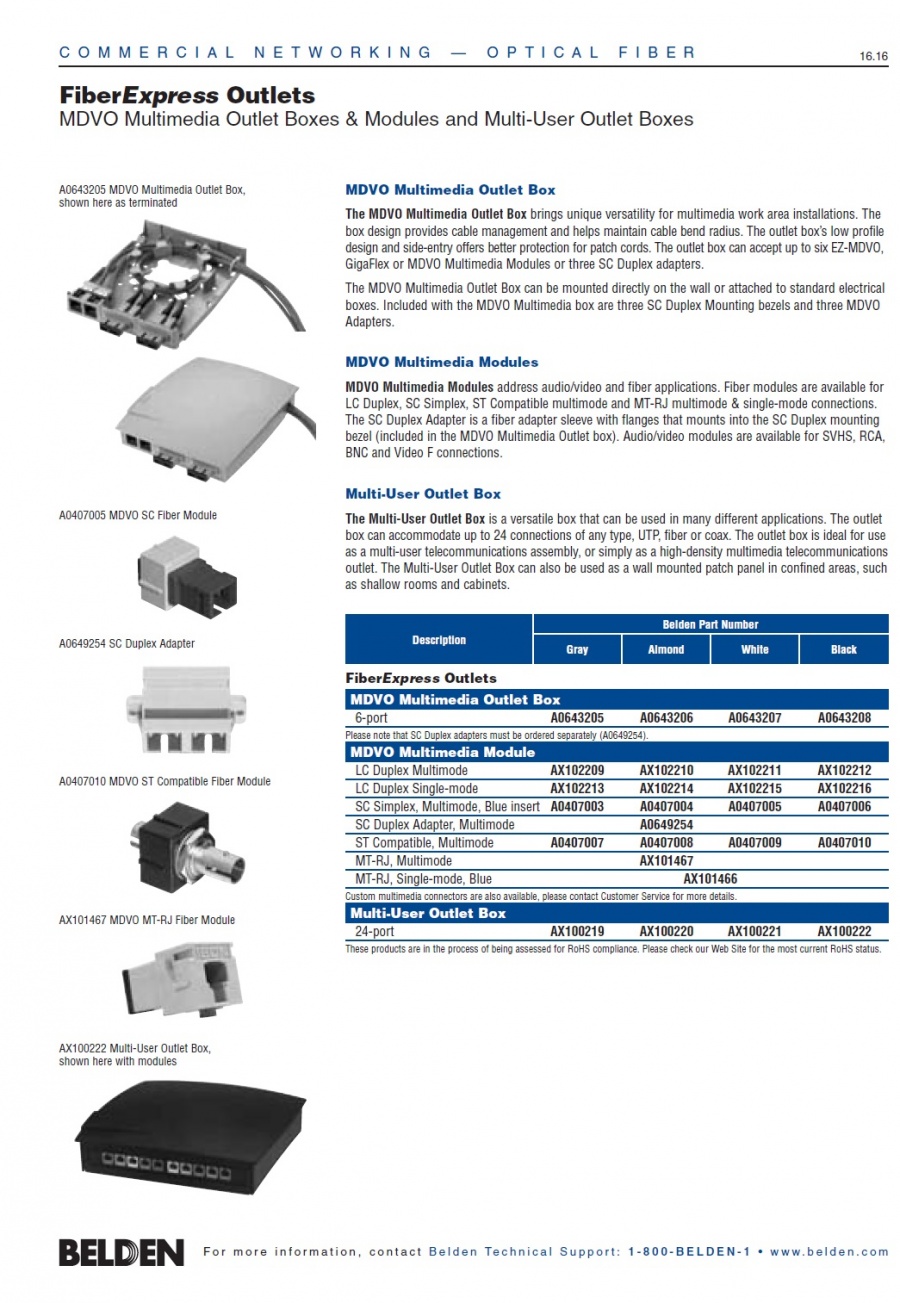

FiberExpress Outlets
MDVO Multimedia Outlet Boxes & Modules and Multi-User Outlet Boxes
　

MDVO Multimedia Outlet Box
The MDVO Multimedia Outlet Box brings unique versatility for multimedia work area installations. The
box design provides cable management and helps maintain cable bend radius. The outlet box’s low profile
design and side-entry offers better protection for patch cords. The outlet box can accept up to six EZ-MDVO,
　

GigaFlex or MDVO Multimedia Modules or three SC Duplex adapters.
The MDVO Multimedia Outlet Box can be mounted directly on the wall or attached to standard electrical
boxes. Included with the MDVO Multimedia box are three SC Duplex Mounting bezels and three MDVO
Adapters.
　

MDVO Multimedia Modules
MDVO Multimedia Modules address audio/video and fiber applications. Fiber modules are available for
LC Duplex, SC Simplex, ST Compatible multimode and MT-RJ multimode & single-mode connections.
The SC Duplex Adapter is a fiber adapter sleeve with flanges that mounts into the SC Duplex mounting
bezel (included in the MDVO Multimedia Outlet box). Audio/video modules are available for SVHS, RCA,
BNC and Video F connections.
　

Multi-User Outlet Box
The Multi-User Outlet Box is a versatile box that can be used in many different applications. The outlet
box can accommodate up to 24 connections of any type, UTP, fiber or coax. The outlet box is ideal for use
as a multi-user telecommunications assembly, or simply as a high-density multimedia telecommunications
outlet. The Multi-User Outlet Box can also be used as a wall mounted patch panel in confined areas, such
as shallow rooms and cabinets.
