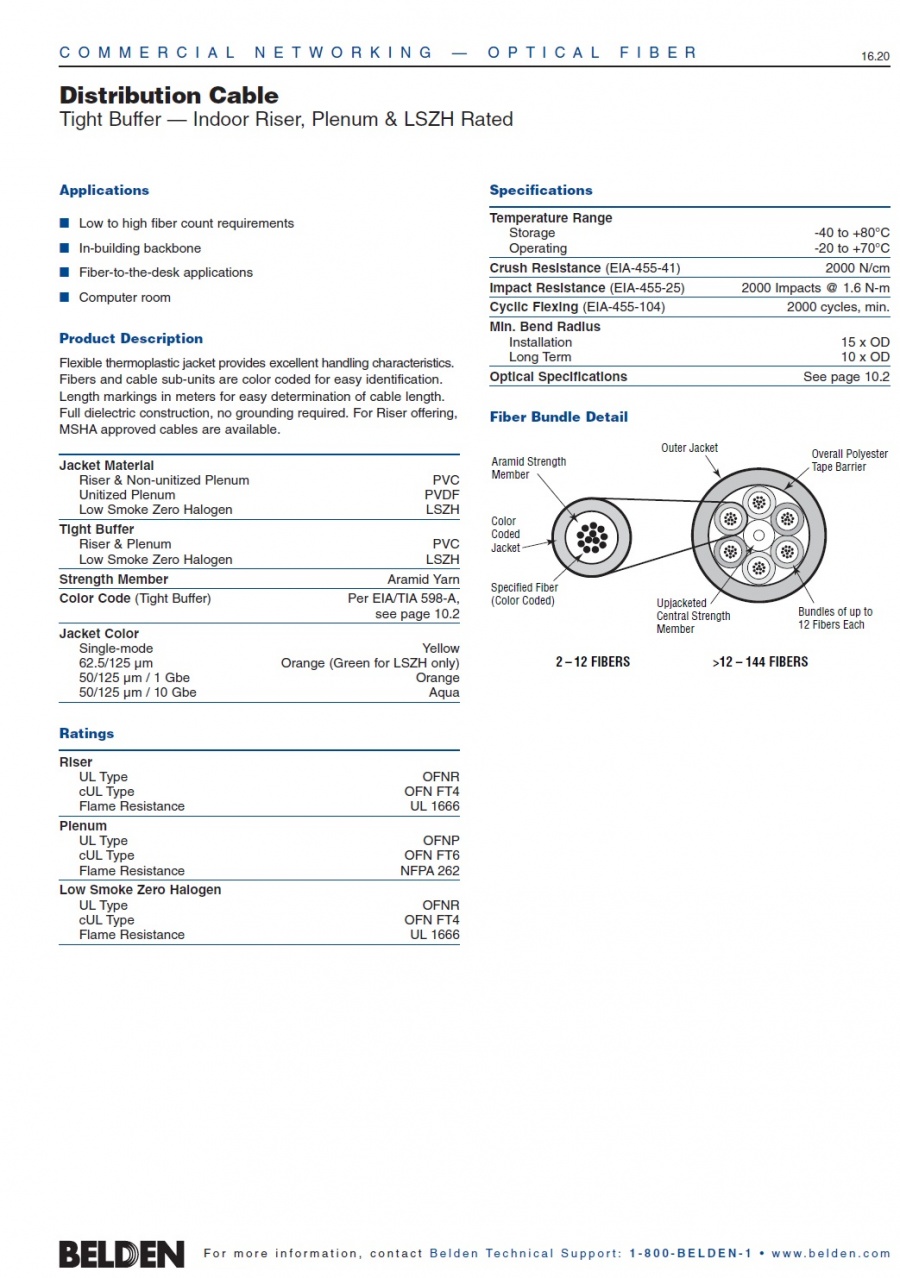

Distribution Cable
Tight Buffer — Indoor Riser, Plenum & LSZH Rated

Applications
■ Low to high fiber count requirements
■ In-building backbone
■ Fiber-to-the-desk applications
■ Computer room
　

Product Description
Flexible thermoplastic jacket provides excellent handling characteristics.
Fibers and cable sub-units are color coded for easy identification.
Length markings in meters for easy determination of cable length.
Full dielectric construction, no grounding required. For Riser offering,
MSHA approved cables are available.

Jacket Material
Riser & Non-unitized Plenum PVC
Unitized Plenum PVDF
Low Smoke Zero Halogen LSZH
　

Tight Buffer
Riser & Plenum PVC
Low Smoke Zero Halogen LSZH
Strength Member Aramid Yarn
Color Code (Tight Buffer) Per EIA/TIA 598-A,
see page 10.2
Jacket Color
Single-mode Yellow
62.5/125 μm Orange (Green for LSZH only)
50/125 μm / 1 Gbe Orange
50/125 μm / 10 Gbe Aqua
Ratings
Riser
UL Type OFNR
cUL Type OFN FT4
Flame Resistance UL 1666
Plenum
UL Type OFNP
cUL Type OFN FT6
Flame Resistance NFPA 262
Low Smoke Zero Halogen
UL Type OFNR
cUL Type OFN FT4
Flame Resistance UL 1666

Specifications
Temperature Range
Storage -40 to +80°C
Operating -20 to +70°C
Crush Resistance(EIA-455-41) 2000 N/cm
Impact Resistance (EIA-455-25) 2000 Impacts @ 1.6 N-m
Cyclic Flexing (EIA-455-104) 2000 cycles, min.
Min. Bend Radius
Installation 15 x OD
Long Term 10 x OD
　

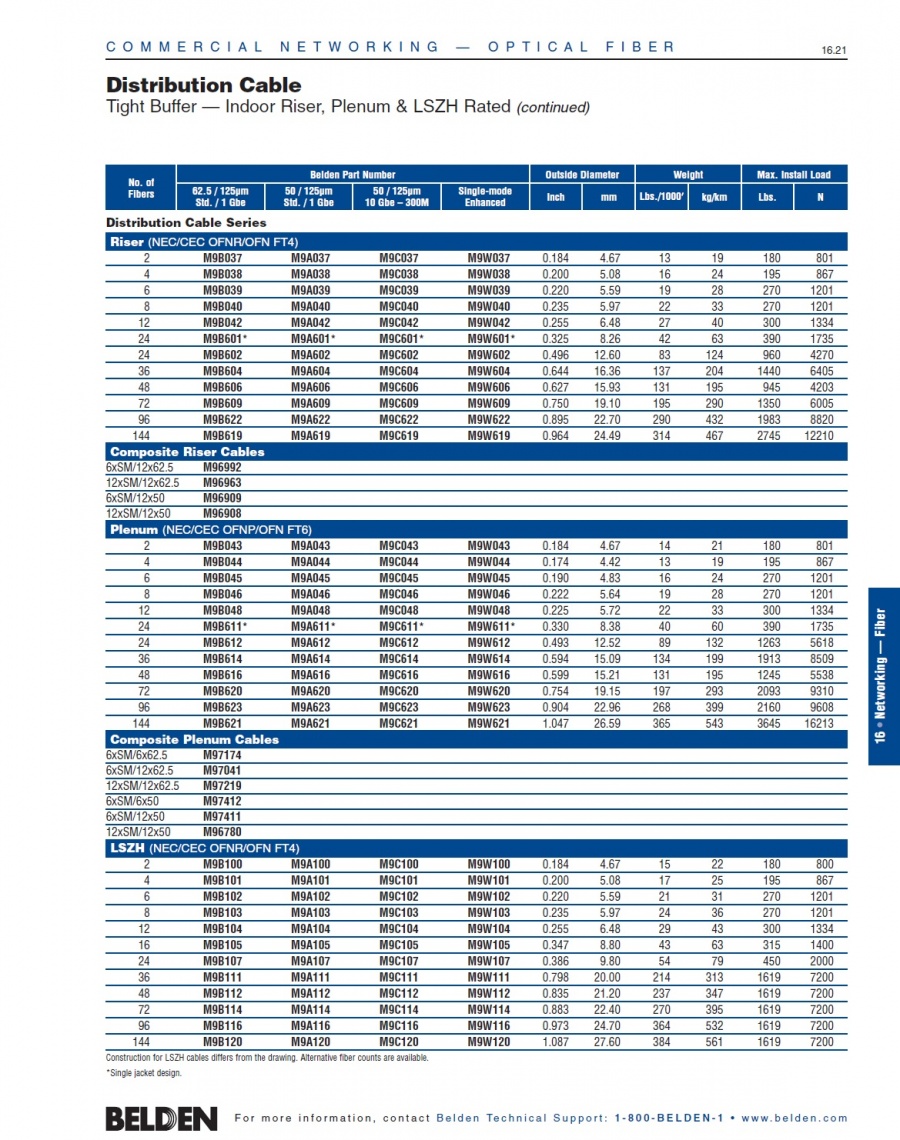

Belden- Distribution Cable Series
Riser (NEC/CEC OFNR/OFN FT4)
Belden- 2C M9B037 M9A037 M9C037 M9W037
Belden- 4C M9B038 M9A038 M9C038 M9W038
Belden- 6C M9B039 M9A039 M9C039 M9W039
Belden- 8C M9B040 M9A040 M9C040 M9W040
Belden- 12C M9B042 M9A042 M9C042 M9W042
Belden- 24C M9B601* M9A601* M9C601* M9W601*
Belden- 24C M9B602 M9A602 M9C602 M9W602
Belden- 36C M9B604 M9A604 M9C604 M9W604
Belden- 48C M9B606 M9A606 M9C606 M9W606
Belden- 72C M9B609 M9A609 M9C609 M9W609
Belden- 96C M9B622 M9A622 M9C622 M9W622
Belden- 144C M9B619 M9A619 M9C619 M9W619
　

Belden- Composite Riser Cables
6CxSM/12x62.5 Belden- M96992
12CxSM/12x62.5 Belden- M96963
6CxSM/12x50 Belden- M96909
12CxSM/12x50 Belden- M96908
　

Belden- Plenum (NEC/CEC OFNP/OFN FT6)
Belden- 2C M9B043 M9A043 M9C043 M9W043
Belden- 4C M9B044 M9A044 M9C044 M9W044
Belden- 6C M9B045 M9A045 M9C045 M9W045
Belden- 8C M9B046 M9A046 M9C046 M9W046
Belden- 12C M9B048 M9A048 M9C048 M9W048
Belden- 24C M9B611* M9A611* M9C611* M9W611*
Belden- 24C M9B612 M9A612 M9C612 M9W612
Belden- 36C M9B614 M9A614 M9C614 M9W614
Belden- 48C M9B616 M9A616 M9C616 M9W616
Belden- 72C M9B620 M9A620 M9C620 M9W620
Belden- 96C M9B623 M9A623 M9C623 M9W623
Belden- 144C M9B621 M9A621 M9C621 M9W621

Belden- Composite Plenum Cables
6CxSM/6x62.5 Belden- M97174
6CxSM/12x62.5 Belden- M97041
12CxSM/12x62.5 Belden- M97219
6CxSM/6x50 Belden- M97412
6CxSM/12x50 Belden- M97411
12CxSM/12x50 Belden- M96780
　

Belden-  LSZH (NEC/CEC OFNR/OFN FT4)

2C Belden- M9B100 M9A100 M9C100 M9W100
4C Belden- M9B101 M9A101 M9C101 M9W101
6C Belden- M9B102 M9A102 M9C102 M9W102
8C Belden- M9B103 M9A103 M9C103 M9W103
12C Belden- M9B104 M9A104 M9C104 M9W104
16C Belden- M9B105 M9A105 M9C105 M9W105
24C Belden- M9B107 M9A107 M9C107 M9W107
36C Belden- M9B111 M9A111 M9C111 M9W111
48C Belden- M9B112 M9A112 M9C112 M9W112
72C Belden- M9B114 M9A114 M9C114 M9W114
96C Belden- M9B116 M9A116 M9C116 M9W116
144C Belden- M9B120 M9A120 M9C120 M9W120
