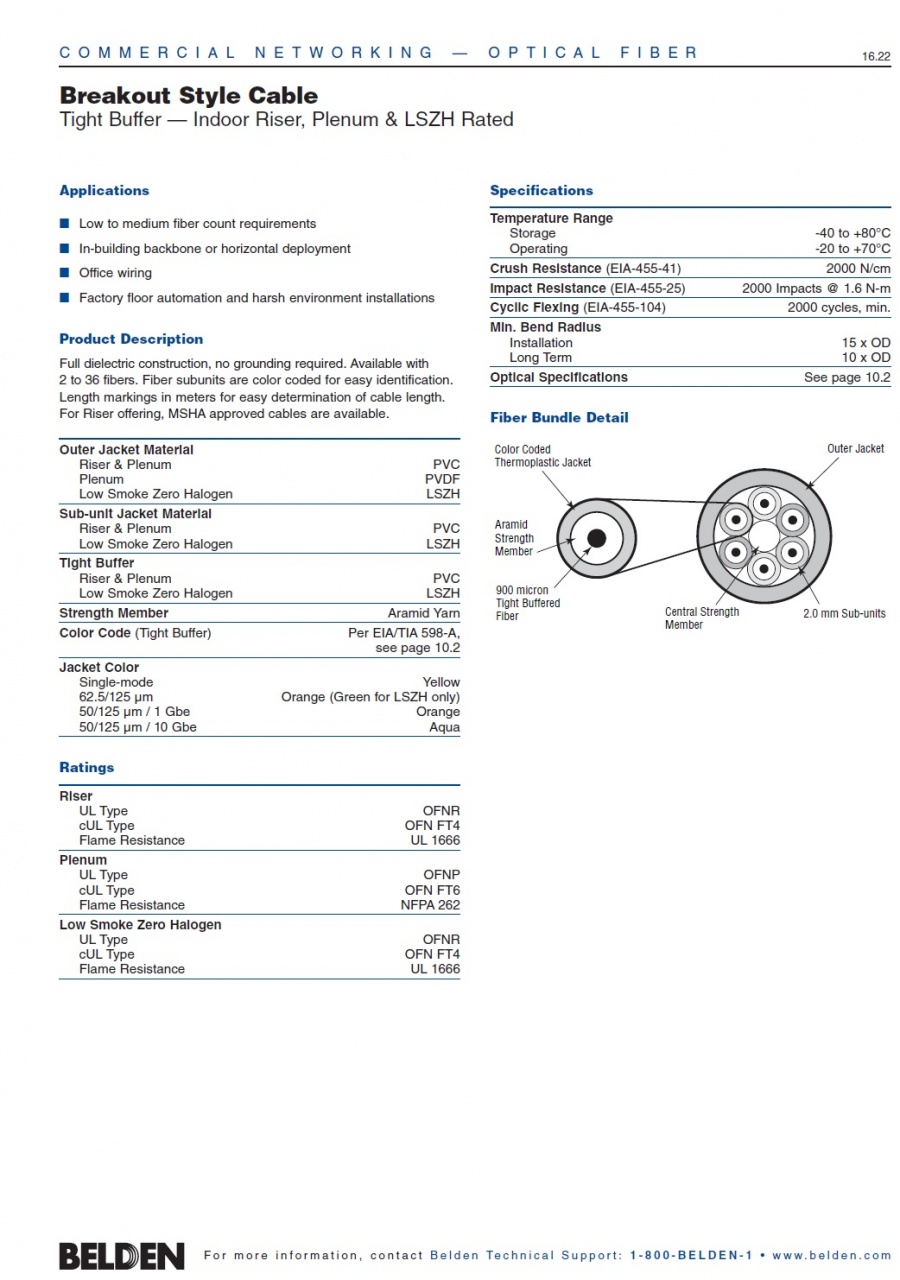

Breakout Style Cable
Tight Buffer — Indoor Riser, Plenum & LSZH Rated

Applications
■ Low to medium fiber count requirements
■ In-building backbone or horizontal deployment
■ Office wiring
■ Factory floor automation and harsh environment installations
　

Product Description
Full dielectric construction, no grounding required. Available with
2 to 36 fibers. Fiber subunits are color coded for easy identification.
Length markings in meters for easy determination of cable length.
For Riser offering, MSHA approved cables are available.
　

Outer Jacket Material
Riser & Plenum PVC
Plenum PVDF
Low Smoke Zero Halogen LSZH
Sub-unit Jacket Material
Riser & Plenum PVC
Low Smoke Zero Halogen LSZH
　

Tight Buffer
Riser & Plenum PVC
Low Smoke Zero Halogen LSZH
Strength Member Aramid Yarn
Color Code (Tight Buffer) Per EIA/TIA 598-A,
see page 10.2
　

Jacket Color
Single-mode Yellow
62.5/125 μm Orange (Green for LSZH only)
50/125 μm / 1 Gbe Orange
50/125 μm / 10 Gbe Aqua
　

Ratings
Riser
UL Type OFNR
cUL Type OFN FT4
Flame Resistance UL 1666
Plenum
UL Type OFNP
cUL Type OFN FT6
Flame Resistance NFPA 262
Low Smoke Zero Halogen
UL Type OFNR
cUL Type OFN FT4
Flame Resistance UL 1666

Specifications
Temperature Range
Storage -40 to +80°C
Operating -20 to +70°C
Crush Resistance (EIA-455-41) 2000 N/cm
Impact Resistance (EIA-455-25) 2000 Impacts @ 1.6 N-m
Cyclic Flexing (EIA-455-104) 2000 cycles, min.
Min. Bend Radius
Installation 15 x OD
Long Term 10 x OD
Optical Specifications See page 10.2

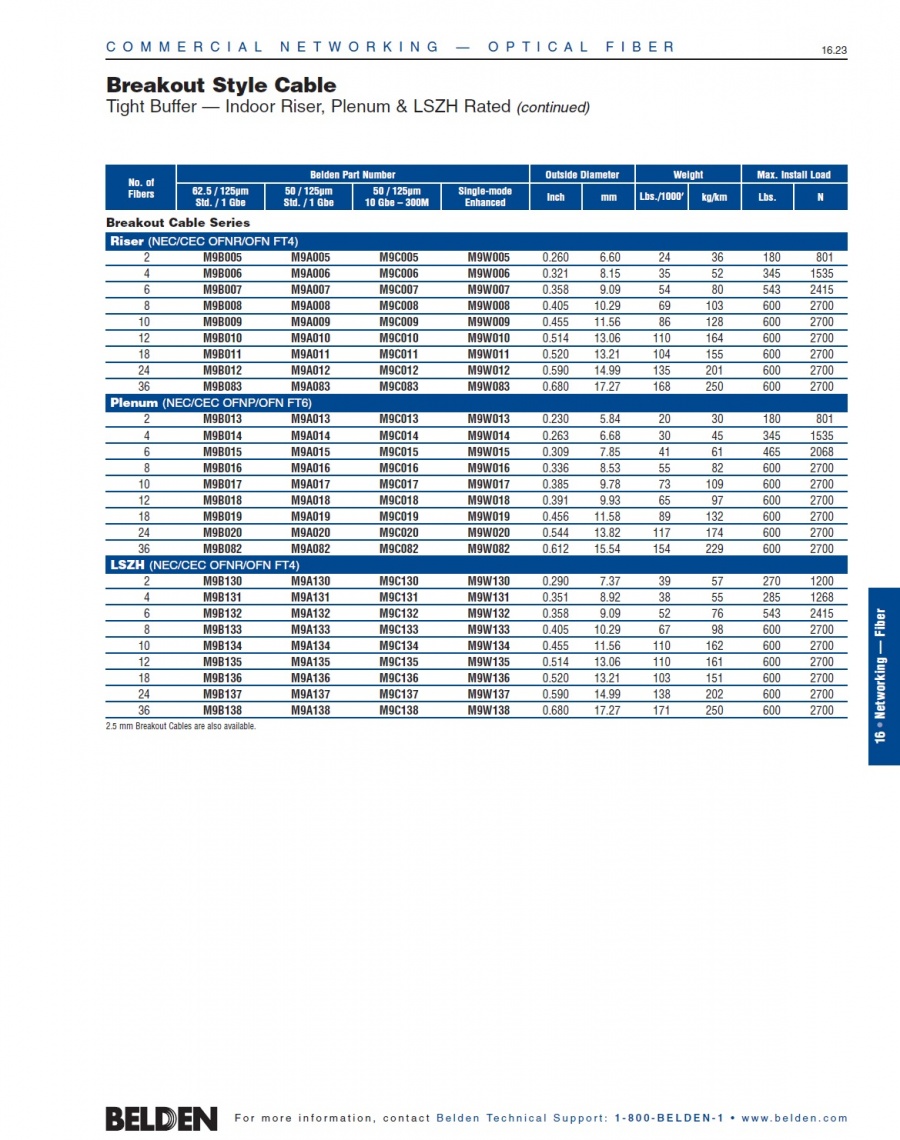

Belden- Breakout Cable Series
Riser (NEC/CEC OFNR/OFN FT4)
Belden- 2C M9B005 M9A005 M9C005 M9W005
Belden- 4C M9B006 M9A006 M9C006 M9W006
Belden- 6C M9B007 M9A007 M9C007 M9W007
Belden- 8C M9B008 M9A008 M9C008 M9W008
Belden- 10C M9B009 M9A009 M9C009 M9W009
Belden- 12C M9B010 M9A010 M9C010 M9W010
Belden- 18C M9B011 M9A011 M9C011 M9W011
Belden- 24C M9B012 M9A012 M9C012 M9W012
Belden- 36C M9B083 M9A083 M9C083 M9W083
　

Belden- Plenum (NEC/CEC OFNP/OFN FT6)
Belden- 2C M9B013 M9A013 M9C013 M9W013
Belden- 4C M9B014 M9A014 M9C014 M9W014
Belden- 6C M9B015 M9A015 M9C015 M9W015
Belden- 8C M9B016 M9A016 M9C016 M9W016
Belden- 10C M9B017 M9A017 M9C017 M9W017
Belden- 12C M9B018 M9A018 M9C018 M9W018
Belden- 18C M9B019 M9A019 M9C019 M9W019
Belden- 24C M9B020 M9A020 M9C020 M9W020
Belden- 36C M9B082 M9A082 M9C082 M9W082
　

Belden-  LSZH (NEC/CEC OFNR/OFN FT4)
Belden- 2C M9B130 M9A130 M9C130 M9W130
Belden- 4C M9B131 M9A131 M9C131 M9W131
Belden- 6C M9B132 M9A132 M9C132 M9W132
Belden- 8C M9B133 M9A133 M9C133 M9W133
Belden- 10C M9B134 M9A134 M9C134 M9W134
Belden- 12C M9B135 M9A135 M9C135 M9W135
Belden- 18C M9B136 M9A136 M9C136 M9W136
Belden- 24C M9B137 M9A137 M9C137 M9W137
Belden- 36C M9B138 M9A138 M9C138 M9W138
