■ ENG vehicles
■ Outdoor news, sporting or other events
■ Digital camera transmission
■ Military communications
■ Re-deployable communications

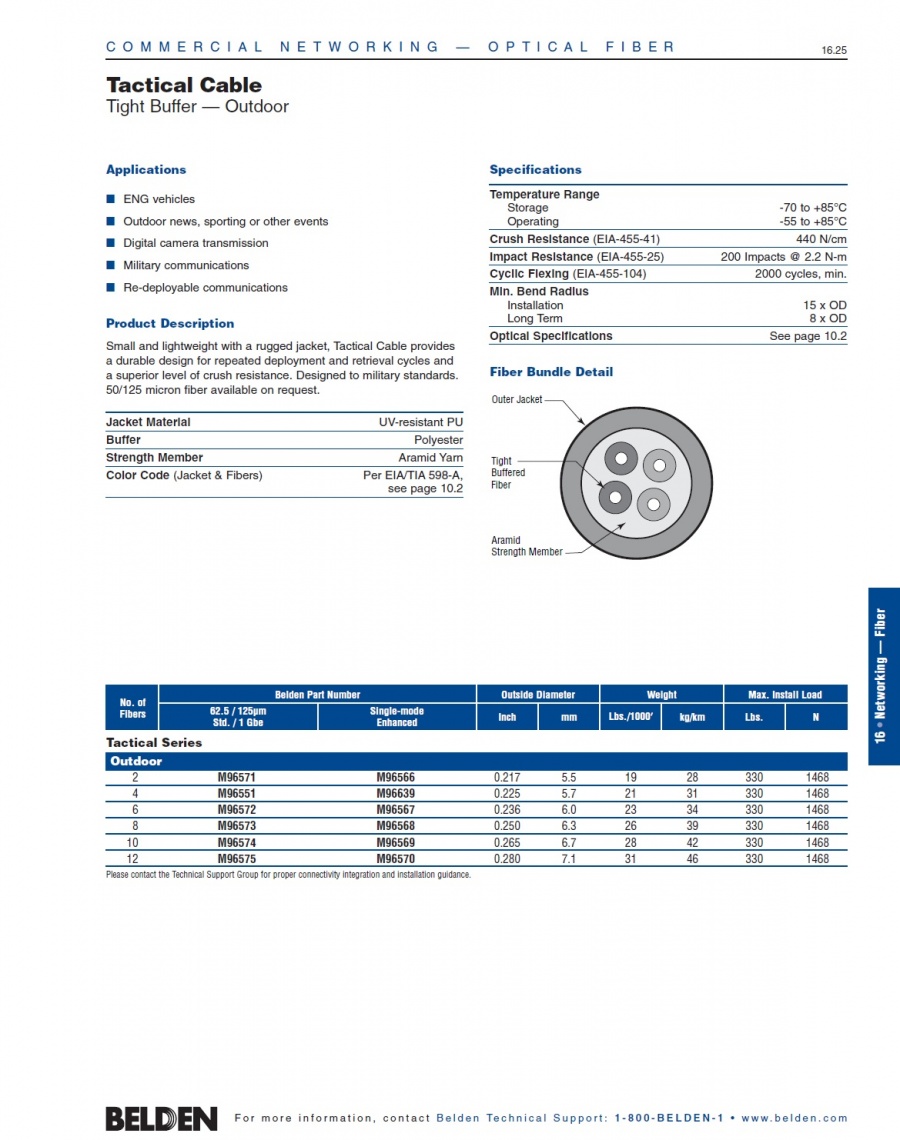

Tactical Cable
Tight Buffer — Outdoor
　

Specifications
Temperature Range
Storage -70 to +85°C
Operating -55 to +85°C
Crush Resistance (EIA-455-41) 440 N/cm
Impact Resistance (EIA-455-25) 200 Impacts @ 2.2 N-m
Cyclic Flexing(EIA-455-104) 2000 cycles, min.
Min. Bend Radius
Installation 15 x OD
Long Term 8 x OD
Optical Specifications See page 10.2
Fiber Bundle Detail
　

Applications
■ ENG vehicles
■ Outdoor news, sporting or other events
■ Digital camera transmission
■ Military communications
■ Re-deployable communications
　

Product Description
Small and lightweight with a rugged jacket, Tactical Cable provides
a durable design for repeated deployment and retrieval cycles and
a superior level of crush resistance. Designed to military standards.
50/125 micron fiber available on request.
Jacket Material UV-resistant PU
Buffer Polyester
Strength Member Aramid Yarn
Color Code (Jacket & Fibers) Per EIA/TIA 598-A,
　

Belden- Tactical Series
Outdoor
Belden- 2C M96571 M96566
Belden- 4C M96551 M96639
Belden- 6C M96572 M96567
Belden- 8C M96573 M96568
Belden- 10C M96574 M96569
Belden- 12C M96575 M96570
