商品編號: Belden-Fiber-2Jacket
Belden-Double Jacket, Heavy-Duty or Armored Fiber Optical Cable Loose Tube Outdoor 鬆式加強型雙被覆室內外光纖電纜
Double Jacket, Armored Cable
Loose Tube – Outdoor, and Indoor/Outdoor Riser Rated
Specifications
Temperature Range (Outdoor)
Storage -50 to +80°C
Operating -40 to +70°C
Temperature Range (Riser)
Storage -40 to +80°C
Operating -40 to +70°C
Crush Resistance (EIA-455-41) 2000 N/cm
Impact Resistance (EIA-455-25) 2000 Impacts @ 1.6 N-m
Min. Bend Radius
Installation 20 x OD
Long Term 15 x OD
Ratings
Riser
UL Type OFCR
cUL Type OFC FT4
Flame Resistance UL 1666
Applications
■ Direct burial
■ Low to high fiber count requirements
■ Inter-building duct installations
■ Indoor/outdoor
■ Industrial outside plant
Product Description
Gel-filled buffer tube prevents water migration. Available as
Riser rated cable, thereby eliminating the need for service entrance
splicing to in-building cable. Rodent resistant. Available in sizes up
to 216 fibers. Length markings in meters for easy determination of
cable length.
Jacket Material
Outdoor PE
Riser PVC
Buffer Tube
Outdoor PBT
Riser PVC
Strength Member Aramid Yarn
Central Strength Member E-Glass
Armor Corrugated Steel Tape
Color Code (Buffer) Per EIA/TIA 598-A,
Jacket Color Black
Belden Loose Tube Series — Armored
Outdoor
6 6 M9B381T M9A381T M9C381T M9W381T
12 6 M9B382T M9A382T M9C382T M9W382T
24 6 M9B384T M9A384T M9C384T M9W384T
36 6 M9B386T M9A386T M9C386T M9W386T
48 12 M9B389T M9A389T M9C389T M9W389T
72 12 M9B391T M9A391T M9C391T M9W391T
96 12 M9B398T M9A398T M9C398T M9W398T
144 12 M9B393T M9A393T M9C393T M9W393T
216 12 M9B400T M9A400T M9C400T M9W400T
Belden Riser (NEC/CEC OFCR/OFC FT4)
6 6 M9B890 M9A890 M9C890 M9W890
12 6 M9B891 M9A891 M9C891 M9W891
24 6 M9B892 M9A892 M9C892 M9W892
36 6 M9B893 M9A893 M9C893 M9W893
48 12 M9B894 M9A894 M9C894 M9W894
72 12 M9B895 M9A895 M9C895 M9W895
96 12 M9B896 M9A896 M9C896 M9W896
144 12 M9B897 M9A897 M9C897 M9W897
Belden Loose Tube Series — Heavy Duty
Outdoor
2 2 M9B840 M9A840 M9C840 M9W840
4 4 M9B841 M9A841 M9C841 M9W841
6 6 M9B842 M9A842 M9C842 M9W842
8 4 M9B843 M9A843 M9C843 M9W843
12 6 M9B844 M9A844 M9C844 M9W844
18 6 M9B845 M9A845 M9C845 M9W845
24 6 M9B846 M9A846 M9C846 M9W846
36 6 M9B847 M9A847 M9C847 M9W847
48 12 M9B848 M9A848 M9C848 M9W848
72 12 M9B849 M9A849 M9C849 M9W849
96 12 M9B820 M9A820 M9C820 M9W820
144 12 M9B821 M9A821 M9C821 M9W821
216 12 M9B822 M9A822 M9C822 M9W822

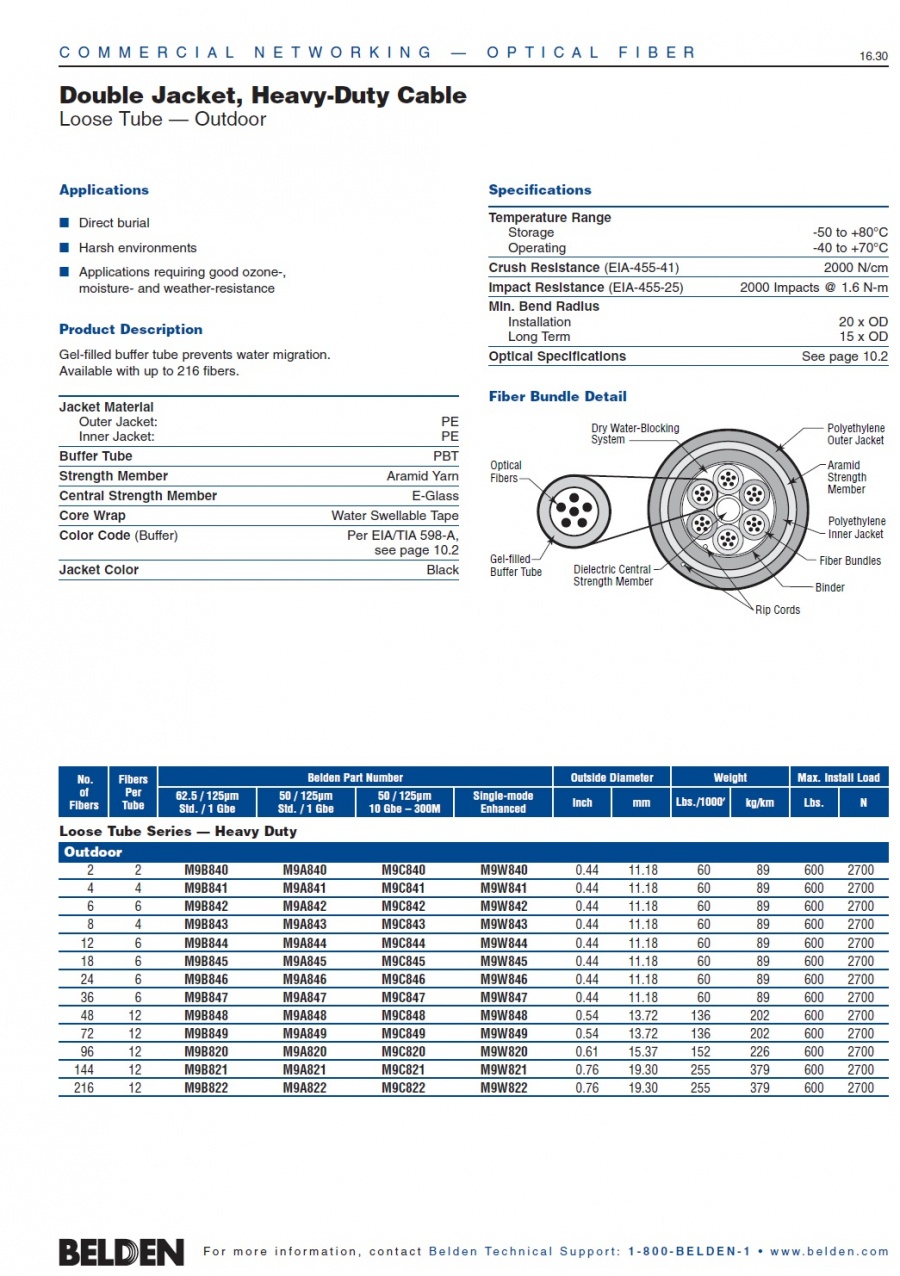

Double Jacket, Heavy-Duty Cable
Loose Tube — Outdoor
Applications
■ Direct burial
■ Harsh environments
■ Applications requiring good ozone-,
moisture- and weather-resistance
Product Description
Gel-filled buffer tube prevents water migration.
Available with up to 216 fibers.
Specifications
Temperature Range
Storage -50 to +80°C
Operating -40 to +70°C
Crush Resistance (EIA-455-41) 2000 N/cm
Impact Resistance (EIA-455-25) 2000 Impacts @ 1.6 N-m
Min. Bend Radius
Installation 20 x OD
Long Term 15 x OD
Jacket Material
Outer Jacket: PE
Inner Jacket: PE
Buffer Tube PBT
Strength Member Aramid Yarn
Central Strength Member E-Glass
Core Wrap Water Swellable Tape
Color Code (Buffer) Per EIA/TIA 598-A,
Jacket Color Black
|
