商品編號: Belden-9964

Belden-9964 MIL-W-16878 (Type B) 20 AWG x 4C TC, TC braid shield 600V 105°C PVC/Nylon -PVC jacket. 白色軍規PVC尼龍絕緣PVC被覆鍍錫銅網隔離電纜


9964    Multi-Conductor - Communication and Instrumentation Cable 20 AWG stranded (19x32) tinned copper conductors, conductors cabled, nylon skin over insulation, PVC insulation, tinned copper braid shield (90% shield coverage), PVC jacket. For more Information please call 1-800-Belden1 Put Ups and Colors: Item # Putup Ship Weight Color Notes Item Desc 9964 009100 100 FT 4.300 LB WHITE 　 4 #20 PVC SHLD PVC 9964 0091000 1,000 FT 39.000 LB WHITE C 4 #20 PVC SHLD PVC 9964 009500 500 FT 18.000 LB WHITE 　 4 #20 PVC SHLD PVC Notes: 　 C = CRATE REEL PUT-UP. 　 Physical Characteristics (Overall) Conductor AWG: # Conductors AWG Stranding Conductor Material 4 20 19x32 TC - Tinned Copper Insulation Insulation Material: Layer # Insulation Material Wall Thickness (in.) 1 PVC - Polyvinyl Chloride .011 2 Nylon .004 Insulation Resistance: 700 megohms/1000 ft. @ 500 VDC Outer Shield Outer Shield Material: Type Outer Shield Material Coverage (%) Braid TC - Tinned Copper 90 Outer Jacket Outer Jacket Material: Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride .025 Overall Cabling Overall Cabling Lay Length & Direction: Length (in.) Twists (ft.) 2 6 Overall Cabling Color Code Chart: Number Color 1 White 2 Black 3 Red 4 Green Overall Nominal Diameter: 0.226 in. Mechanical Characteristics (Overall) Operating Temperature Range: -20°C To +105°C UL Temperature Rating: 105°C Bulk Cable Weight: 35.500 lbs/1000 ft. Max. Recommended Pulling Tension: 60 lbs. Min. Bend Radius (Install)/Minor Axis: 2.250 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes Military Specification: MIL-W-16878E/17 (insulated conductor) Flame Test UL Flame Test: UL1685 UL Loading, VW-1 Plenum/Non-Plenum Plenum (Y/N): No Electrical Characteristics (Overall) Nom. Capacitance Conductor to Conductor: Capacitance (pF/ft) 40 Nom. Capacitance Cond. to Other Conductor & Shield: Capacitance (pF/ft) 100 Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/1000 ft) 9.0 Nominal Outer Shield DC Resistance: DCR @ 20°C (Ohm/1000 ft) 4.9 Max. Operating Voltage - UL: Voltage 600 V RMS Max. Recommended Current: Current 3.8 Amps per conductor @ 25°C
★★★★商品規格描述★★★★

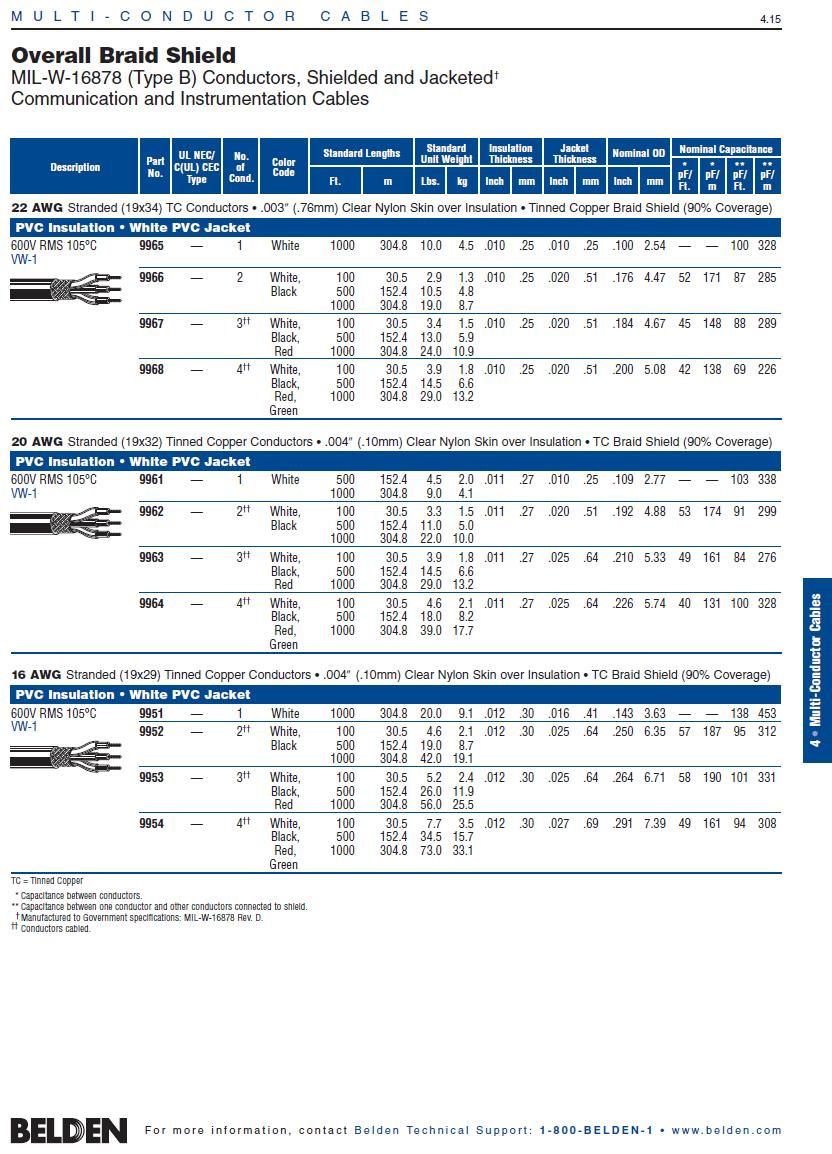

Overall Braid Shield
MIL-W-16878 (Type B) Conductors, Shielded and Jacketed†
Communication and Instrumentation Cables
　

22 AWG Stranded (19x34) TC Conductors • .003″ (.76mm) Clear Nylon Skin over Insulation • Tinned Copper Braid Shield (90% Coverage)
PVC Insulation • White PVC Jacket
600V RMS 105°CBelden-9965 — 1C
VW-1
Belden-9966 — 2C
Belden-9967 — 3C††
Belden-9968 — 4C††
　

20 AWG Stranded (19x32) Tinned Copper Conductors • .004″ (.10mm) Clear Nylon Skin over Insulation • TC Braid Shield (90% Coverage)
PVC Insulation • White PVC Jacket
600V RMS 105°CBelden-9961 — 1C
Belden-9962 — 2C††
Belden-9963 — 3C††
Belden-9964 — 4C††
　

16 AWG Stranded (19x29) Tinned Copper Conductors • .004″ (.10mm) Clear Nylon Skin over Insulation • TC Braid Shield (90% Coverage)
PVC Insulation • White PVC Jacket
600V RMS 105°CBelden-9951 — 1C VW-1

Belden-9952 — 2C††
Belden-9953 — 3C††
Belden-9954 — 4C††
