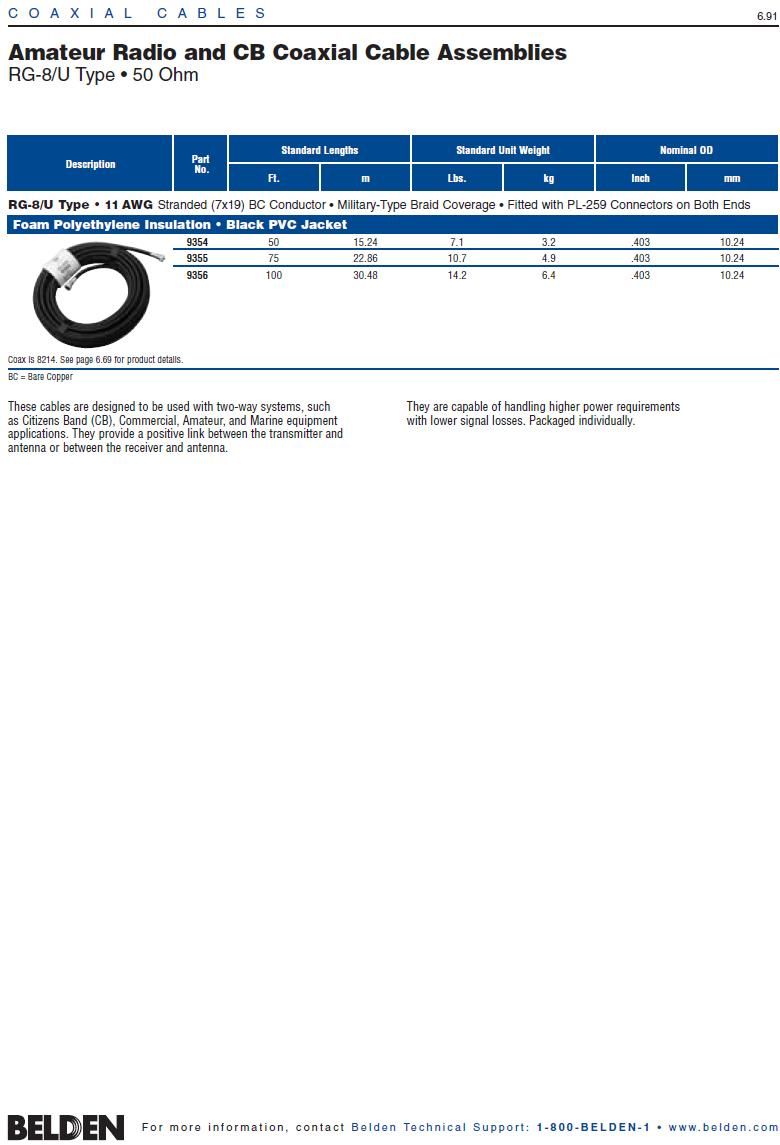

    Belden 9354 Amateur Radio and RG-8/U (Belden8214) +with PL-259 connectors assemblies RG8同軸電纜接頭組裝(50FT)
    看原圖
    		468092

    商品編號: Belden-9354

    Belden 9354 Amateur Radio and RG-8/U (Belden8214) +with PL-259 connectors assemblies RG8同軸電纜接頭組裝 (15.25M=50FT)

    RG-8/U Type, 11 AWG stranded (7x19) BC conductor, foam polyethylene insulation, military-type braid coverage, fitted with PL-259 connectors on both ends, PVC jacket.


    　 Coax - RG-8/U Type
    RG-8/U Type, 11 AWG stranded (7x19) BC conductor, foam polyethylene insulation, military-type braid coverage, fitted with PL-259 connectors on both ends, PVC jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material
    1 11 7x19 BC - Bare Copper
    Insulation
    Insulation Material:
    Insulation Material
    FPE - Foam Polyethylene
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid BC - Bare Copper 97
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.403 in.
    Length
    Coaxial Cable Assembly Length: 50
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 10/13/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    RG Type: 8/U
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Other Electrical Characteristic 1: Cable is 8214. See tech data for 8214.
    Notes (Overall)
    Notes: These cables are designed to be used with two-way systems, such as Citizens Band (CB), Commercial, Amateur, and Marine equipment applications. They provide a positive link between the transmitter and antenna or between the receiver and antenna. They are capable of handling higher power requirements with lower signal losses. Packaged individually.
