    首頁 > > Belden-Other-Misc-RG-Type(其他同軸電纜)

    Belden-Bundled RGB Coaxial and Triaxial Cables 同軸電纜
    看原圖
    		5673932

    商品編號: Belden-Bundled

    Belden-Bundled RGB Coaxial and Triaxial Cables 同軸電纜

    RG Coaxial and Triaxial Reference Guide
    　

    Bundled Coax
    Bundled Coax Belden-1520A  Belden 7/.012″ TC FHDPE DF/90% TC PVC  75Ω (Ohm)  Sub-Miniature
    Bundled Coax Belden-1521A  Belden 7/.012″ TC FHDPE DF/90% TC PVC 75Ω (Ohm)  Sub-Miniature RGB
    Bundled Coax Belden-1522A  Belden 7/.012″ TC FHDPE DF/90% TC PVC  75Ω (Ohm)  Sub-Miniature RGB
    Bundled Coax Belden-1406B  Belden 7/.019″ BC FHDPE DF/93% TC PVC  75Ω (Ohm)  Miniature RGB
    Bundled Coax Belden-1407B  Belden 7/.019″ BC FHDPE DF/93% TC PVC  75Ω (Ohm)Miniature RGB
    Bundled Coax Belden-1417B  Belden 7/.019″ BC FHDPE DF/93% TC PVC  75Ω (Ohm)  Miniature  RGB
    Bundled Coax Belden-1164B  Belden 7/.019″ BC FHDPE DF/93% TC PVC  75Ω (Ohm)   RGB
    Bundled Coax Belden-1167B  Belden 7/.019″ BC FHDPE DF/93% TC PVC  75Ω (Ohm)  RGB
    Bundled Coax Belden-1418B  Belden 7/.019″ BC FHDPE DF/93% TC PVC RGB
    Bundled Coax Belden-1277R  Belden 1/.018″ TC FPFA DB/95% TC PVC  75Ω (Ohm)  RGB
    Bundled Coax Belden-1278R  Belden 1/.018″ TC FPFA DB/95% TC PVC  75Ω (Ohm)   RGB
    Bundled Coax Belden-1279R  Belden 1/.018″ TC FPFA DB/95% TC PVC  75Ω (Ohm)   RGB
    Bundled Coax Belden-1280R  Belden 1/.018″ TC FPFA DB/95% TC PVC  75Ω (Ohm)   RGB
    Bundled Coax Belden-1277P  Belden 1/.018″ TC FPFA DB/95% TC PVC  75Ω (Ohm)  RGB Plenum
    Bundled Coax Belden-1278P  Belden 1/.018″ TC FPFA DB/95% TC PVC  75Ω (Ohm)  RGB Plenum
    Bundled Coax Belden-1279P  Belden 1/.018″ TC FPFA DB/95% TC PVC  75Ω (Ohm)  RGB Plenum
    Bundled Coax Belden-1280P  Belden 1/.018″ TC FPFA DB/95% TC PVC  75Ω (Ohm)  RGB Plenum
    Bundled Coax Belden-1281S3  Belden 1/.018″ TC GIFHDPE DB/95% TC PVC  75Ω (Ohm)  RGB BananaPeel®
    Bundled Coax Belden-1281S4  Belden 1/.018″ TC GIFHDPE DB/95% TC PVC  75Ω (Ohm)  RGB BananaPeel
    Bundled Coax Belden-1281S5  Belden 1/.018″ TC GIFHDPE DB/95% TC PVC  75Ω (Ohm)  RGB BananaPeel
    Bundled Coax Belden-1281S6  Belden 1/.018″ TC GIFHDPE DB/95% TC PVC  75Ω (Ohm)  RGB BananaPeel
    Bundled Coax Belden-1282S3  Belden 1/.018″ TC FPFA DB/95% TC FLM  75Ω (Ohm)   RGB BananaPeel Plenum
    Bundled Coax Belden-1282S4  Belden 1/.018″ TC FPFA DB/95% TC FLM  75Ω (Ohm)  RGB BananaPeel Plenum
    Bundled Coax Belden-1282S5  Belden 1/.018″ TC FPFA DB/95% TC FLM  75Ω (Ohm)  RGB BananaPeel Plenum
    Bundled Coax Belden-1282S6  Belden 1/.018″ TC FPFA DB/95% TC FLM  75Ω (Ohm)  RGB BananaPeel Plenum
    RG-6 TypeBelden-7710A  Belden 1/.040″ BC GIFPE DF/95% TC PVC-M  75Ω (Ohm)  Bundled SDI Coax
    RG-6 TypeBelden-7711A  Belden 1/.040″ BC GIFPE DF/95% TC PVC-M  75Ω (Ohm)  Bundled SDI Coax
    RG-6 TypeBelden-7712A  Belden 1/.040″ BC GIFPE DF/95% TC PVC-M  75Ω (Ohm)  Bundled SDI Coax
    RG-6 TypeBelden-7713A  Belden 1/.040″ BC GIFPE DF/95% TC PVC-M  75Ω (Ohm)  Bundled SDI Coax
    RG-59/U Type Belden-7787A  Belden 1/.023″ BC GIFHDPE DF/95% TC PVC  75Ω (Ohm)  Bundled (Miniature)
    RG-59/U Type Belden-7788A  Belden 1/.023″ BC GIFHDPE DF/95% TC PVC  75 Bundled (Miniature)
    RG-59/U Type Belden-7789A  Belden 1/.023″ BC GIFHDPE DF/95% TC PVC  75Ω (Ohm)  Bundled (Miniature)
    RG-59/U Type Belden-7790A  Belden 1/.023″ BC GIFHDPE DF/95% TC PVC  75Ω (Ohm)   Bundled (Miniature)
    RG-59/U Type Belden-7791A  Belden 1/.023″ BC GIFHDPE DF/95% TC PVC  75Ω (Ohm)  Bundled (Miniature)
    RG-59/U Type Belden-7792A  Belden 1/.023″ BC GIFHDPE DF/95% TC PVC  75Ω (Ohm)  Bundled (Miniature)
    RG-59/U Type Belden-7794A  Belden 1/.032″ BC GIFHDPE DF/95% TC PVC  75Ω (Ohm)  Bundled
    RG-59/U Type Belden-7795A  Belden 1/.032″ BC GIFHDPE DF/95% TC PVC  75Ω (Ohm)  Bundled
    RG-59/U Type Belden-7796A  Belden 1/.032″ BC GIFHDPE DF/95% TC PVC  75Ω (Ohm)  Bundled
    RG-59/U Type Belden-7798A  Belden 1/.032″ BC GIFHDPE DF/95% TC PVC  75 Bundled
    RG-59/U Type Belden-1283S3  Belden 1/.032″ TC FFEP DF/95% TC PVC  75Ω (Ohm)  Bundled RGB Coax BananaPeel Plenum
    RG-59/U Type Belden-1283S5  Belden 1/.032″ TC FFEP DF/95% TC PVC  75Ω (Ohm)  Bundled RGB Coax BananaPeel Plenum
    RG-59/U Type Belden-1283S6  Belden 1/.032″ TC FFEP DF/95% TC PVC  75Ω (Ohm)  Bundled RGB Coax BananaPeel Plenum





    ★★★★商品規格描述★★★★

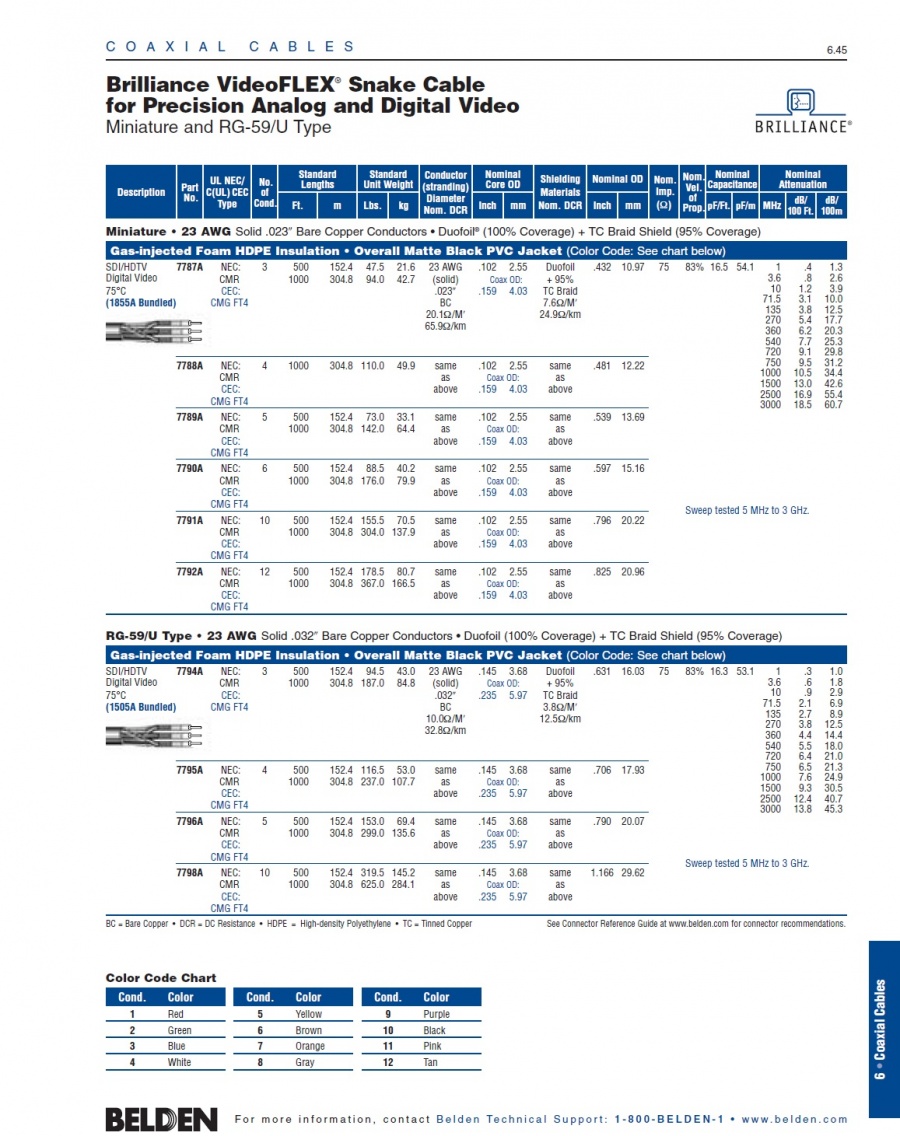

    Brilliance VideoFLEX® Snake Cable
    for Precision Analog and Digital Video
    Miniature and RG-59/U Type

    Miniature • 23 AWG Solid .023″ Bare Copper Conductors • Duofoil® (100% Coverage) + TC Braid Shield (95% Coverage)
    Gas-injected Foam HDPE Insulation • Overall Matte Black PVC Jacket

    RG-59/U Type • 23 AWG Solid .032″ Bare Copper Conductors • Duofoil (100% Coverage) + TC Braid Shield (95% Coverage)
    Gas-injected Foam HDPE Insulation • Overall Matte Black PVC Jacket

    RG-59/U • 20 AWG Solid .032″ Bare Copper Conductors • Duofoil® (100% Coverage) + Tinned Copper Braid Shield (95% Coverage)
    Plenum • Foam FEP Insulation • Plenum-Grade PVC Jackets  • Center Spline • No Overall Jacket

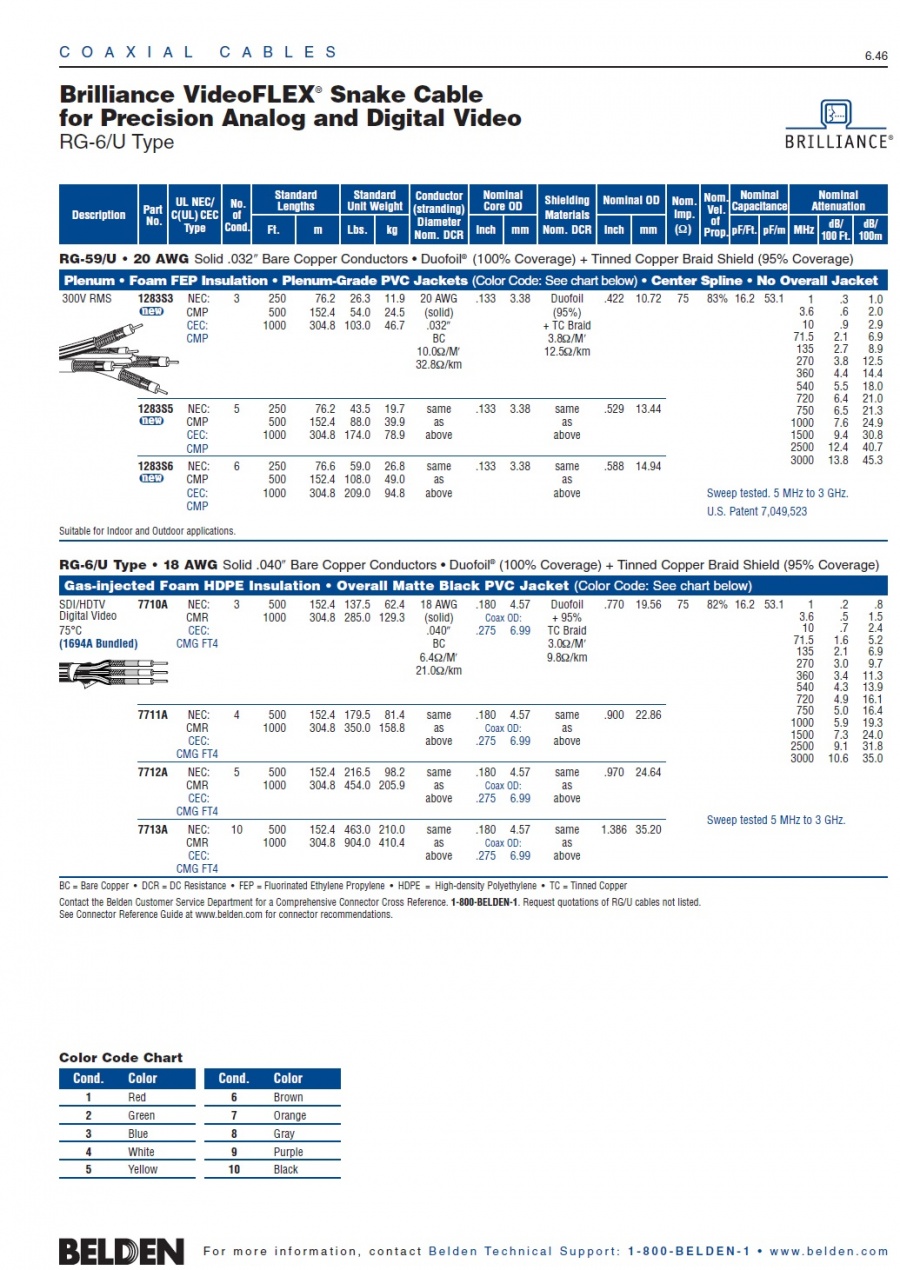

    RG-6/U Type

    RG-6/U Type • 18 AWG Solid .040″ Bare Copper Conductors • Duofoil® (100% Coverage) + Tinned Copper Braid Shield (95% Coverage)
    Gas-injected Foam HDPE Insulation • Overall Matte Black PVC Jacket

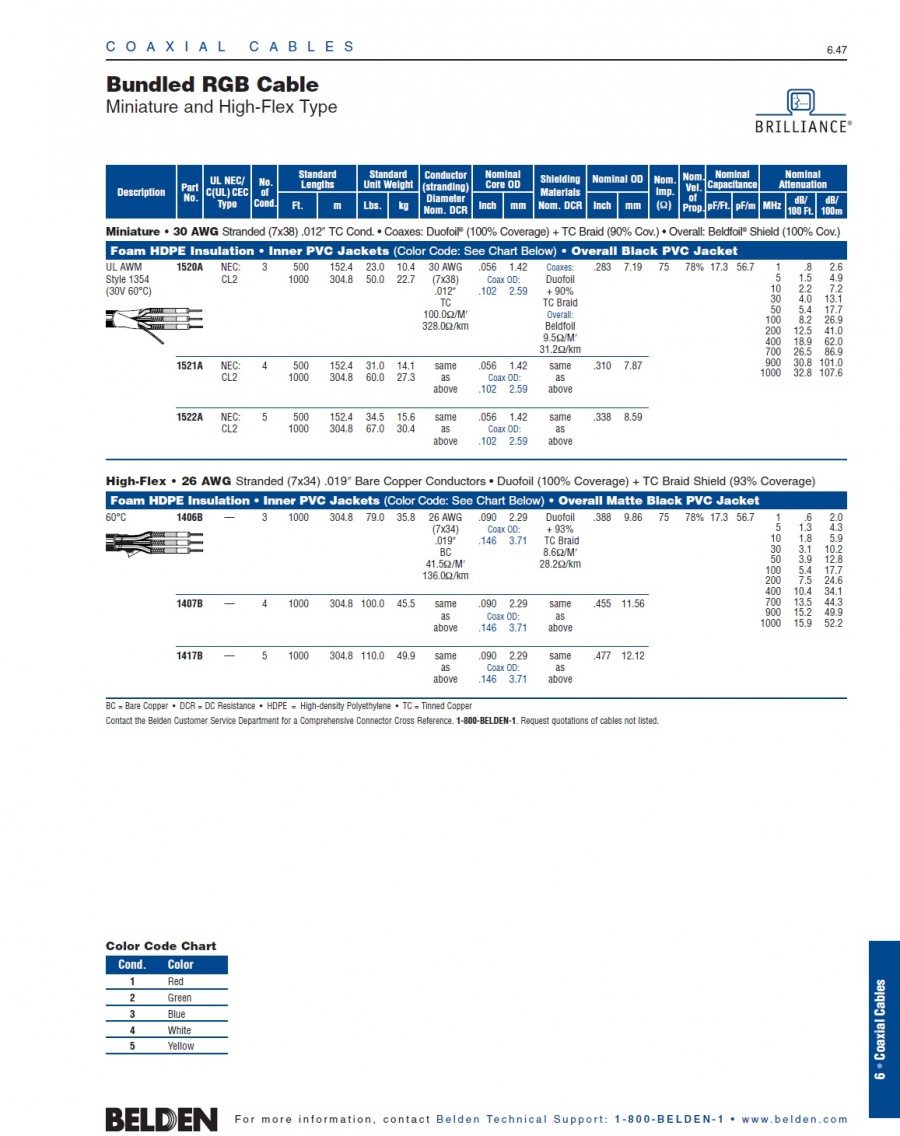

    Bundled RGB Cable
    Miniature and High-Flex Type

    Miniature • 30 AWG Stranded (7x38) .012″ TC Cond. • Coaxes: Duofoil® (100% Coverage) + TC Braid (90% Cov.) • Overall: Beldfoil® Shield (100% Cov.)
    Foam HDPE Insulation • Inner PVC Jackets  • Overall Black PVC Jacket

    High-Flex • 26 AWG Stranded (7x34) .019″ Bare Copper Conductors • Duofoil (100% Coverage) + TC Braid Shield (93% Coverage)
    Foam HDPE Insulation • Inner PVC Jackets • Overall Matte Black PVC Jacket

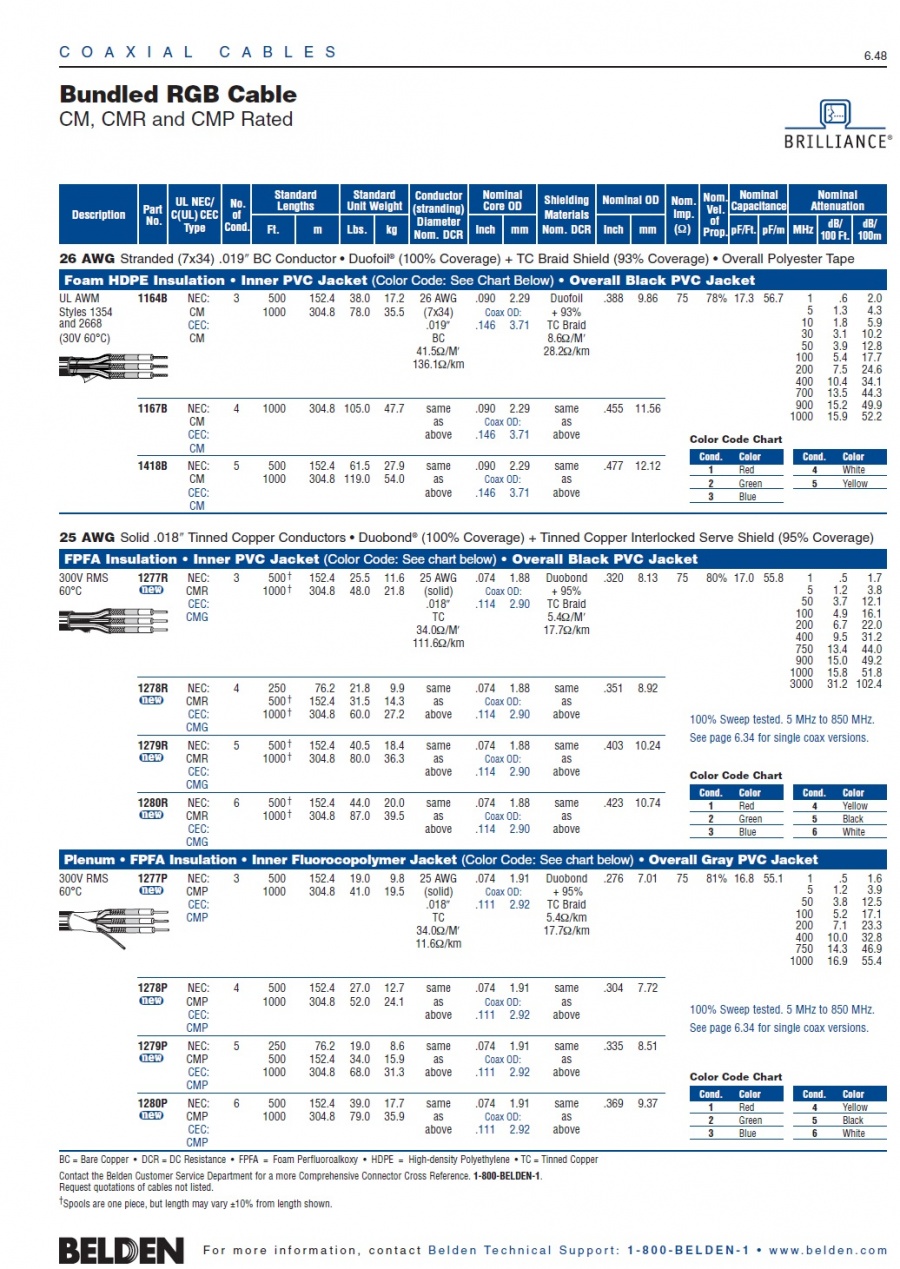

    Bundled RGB Cable
    CM, CMR and CMP Rated

    26 AWG Stranded (7x34) .019″ BC Conductor • Duofoil® (100% Coverage) + TC Braid Shield (93% Coverage) • Overall Polyester Tape
    Foam HDPE Insulation • Inner PVC Jacket  • Overall Black PVC Jacket

    25 AWG Solid .018″ Tinned Copper Conductors • Duobond® (100% Coverage) + Tinned Copper Interlocked Serve Shield (95% Coverage)
    FPFA Insulation • Inner PVC Jacket • Overall Black PVC Jacket

    Plenum • FPFA Insulation • Inner Fluorocopolymer Jacket (Color Code: See chart below) • Overall Gray PVC Jacket

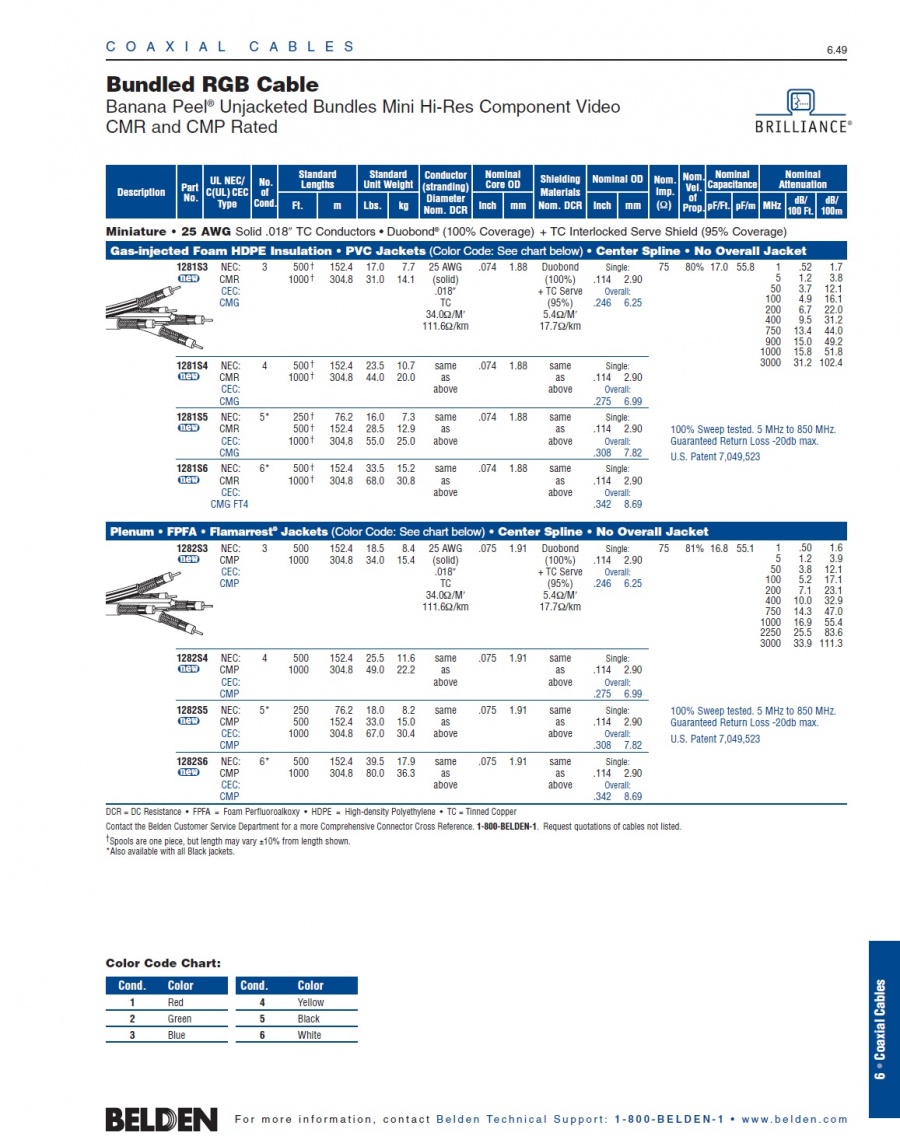

    Bundled RGB Cable
    Banana Peel® Unjacketed Bundles Mini Hi-Res Component Video
    CMR and CMP Rated

    Miniature • 25 AWG Solid .018″ TC Conductors • Duobond® (100% Coverage) + TC Interlocked Serve Shield (95% Coverage)
    Gas-injected Foam HDPE Insulation • PVC Jackets  • Center Spline • No Overall Jacket

    Plenum • FPFA • Flamarrest® Jackets (Color Code: See chart below) • Center Spline • No Overall Jacket
