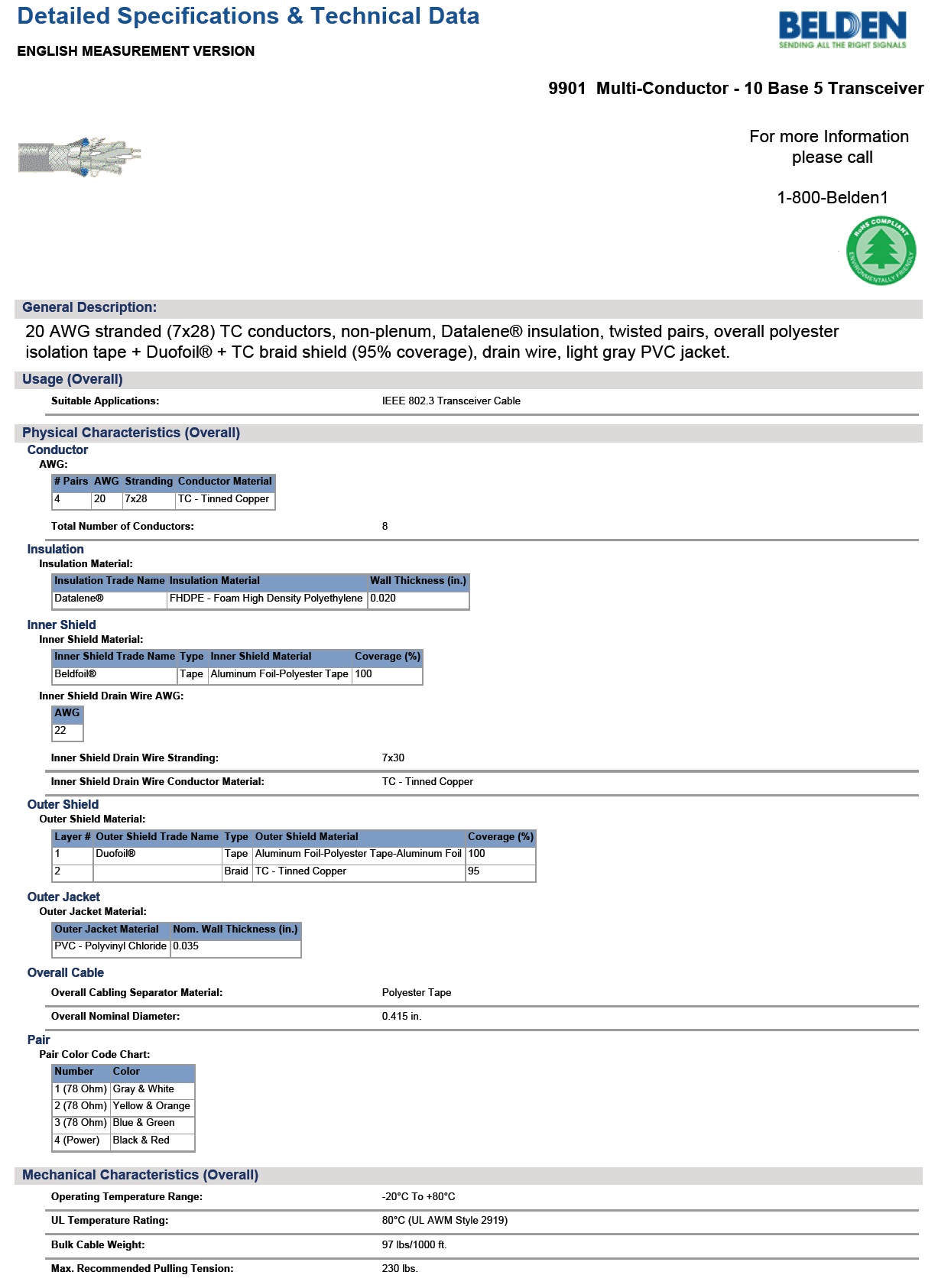

BELDEN 9901 Multi-Conductor - 10 Base 5 Transceiver
General Description:
20 AWG stranded (7x28) TC conductors, non-plenum, Datalene® insulation, twisted pairs, overall polyester isolation tape + Duofoil® + TC braid shield (95% coverage), drain wire, light gray PVC jacket.
Usage (Overall):
Suitable Applications: IEEE 802.3 Transceiver Cable
Physical Characteristics (Overall)
Conductor AWG:
# Pairs AWG Stranding Conductor Material
4 20 7x28 TC - Tinned Copper
Insulation
Insulation Material:
Insulation Trade Name Insulation Material Wall Thickness (in.)
Datalene® FHDPE - Foam High Density Polyethylene 0.020
Inner Shield Drain Wire AWG:
AWG: 22
Inner Shield Drain Wire Stranding: 7x30
Inner Shield Drain Wire Conductor Material: TC - Tinned Copper
|
|
