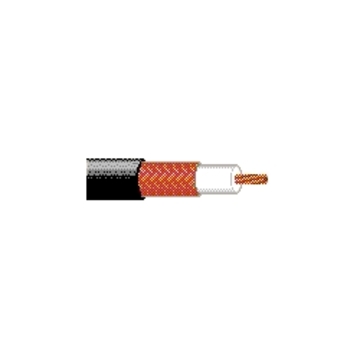

    Belden 8241F 22 AWG stranded (7x30) .030 RG-59 移動式超柔軟麥克風線同軸電纜
    看原圖
    		BELDEN-8241F

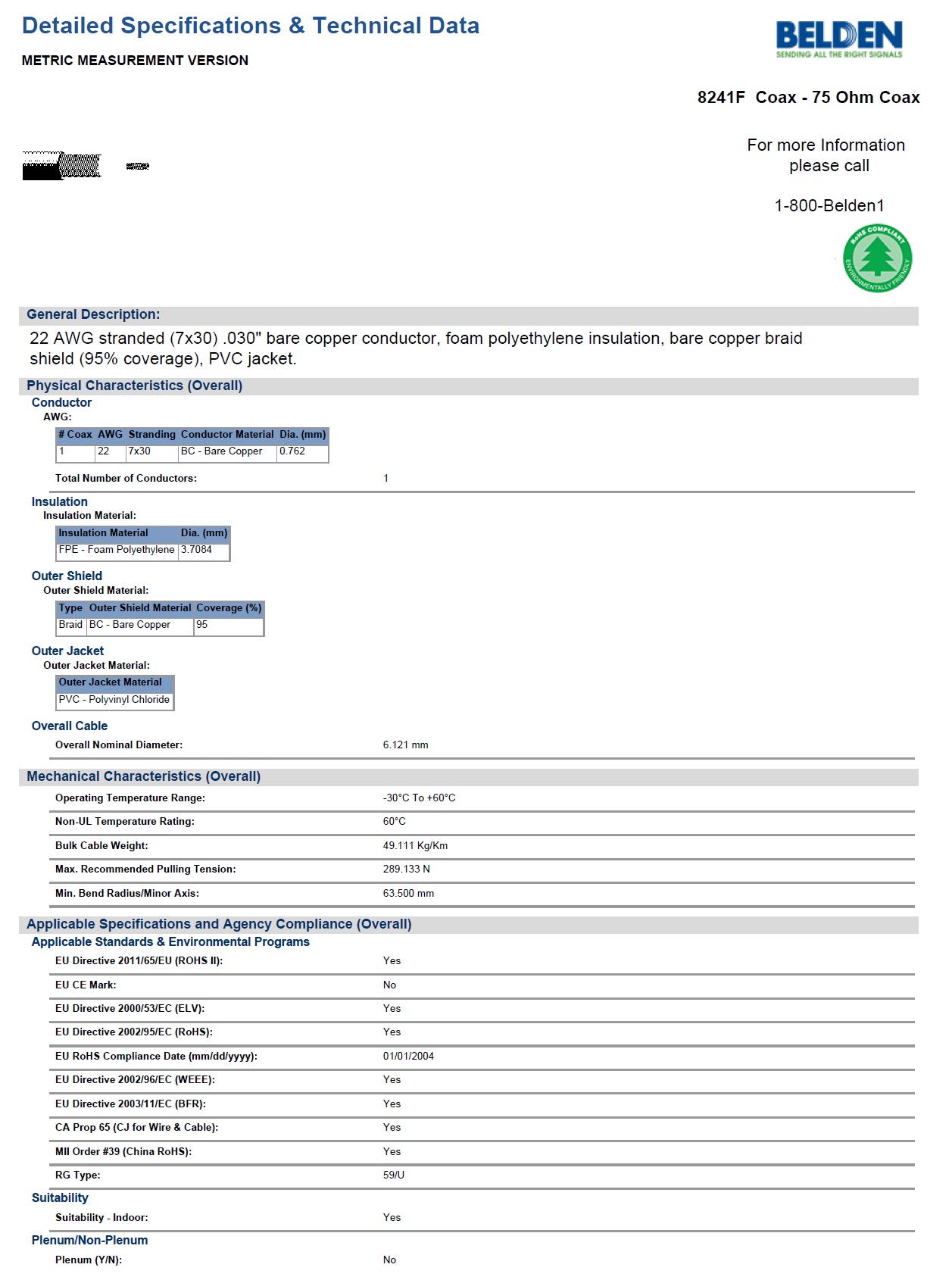

    Belden 8241F  Coax - 75 Ohm Coax     RG-59 移動式超柔軟麥克風線同軸電纜

    General Description: 22 AWG stranded (7x30) .030" bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

    Conductor AWG: # Coax AWG Stranding Conductor Material Dia. (mm) 1 22 7x30 BC - Bare Copper 0.762

    Physical Characteristics (Overall) Conductor AWG:
     # Coax AWG Stranding Conductor Material Dia. (mm)
      1 22 7x30 BC - Bare Copper 0.762

    Insulation
    Insulation Material:
    Insulation Material Dia. (mm)
    FPE - Foam Polyethylene  3.7084

    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid BC - Bare Copper 95


    Outer Jacket Material PVC - Polyvinyl Chloride

    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +60°C
    Non-UL Temperature Rating: 60°C
    Bulk Cable Weight: 49.111 Kg/Km
    Max. Recommended Pulling Tension: 289.133 N
    Min. Bend Radius/Minor Axis: 63.500 mm
