商品編號: BD-9231

Belden-9231 20 AWG solid .031" bare copper conductor, PE insulation, TC braid shields (95% coverage), PVC jacket. 75Ω DS3/4 RG-59/U Type 雙鍍錫銅網隔離通訊同軸電纜

9231    Coax - RG-59/U Type 20 AWG solid .031" bare copper conductor, polyethylene insulation, tinned copper braid shields (95% coverage), PVC jacket. For more Information please call 1-800-Belden1 Click here for Certificate Put Ups and Colors: Item # Putup Ship Weight Color Notes Item Desc 9231 0081000 1,000 FT 76.000 LB GRAY C #20 PE DBL BRD PVC 9231 008500 500 FT 39.000 LB GRAY 　 #20 PE DBL BRD PVC Notes: 　 C = CRATE REEL PUT-UP. 　 Physical Characteristics (Overall) Conductor AWG: # Coax AWG Stranding Conductor Material Dia. (in.) 1 20 Solid BC - Bare Copper .031 Total Number of Conductors: 1 Insulation Insulation Material: Insulation Material Dia. (in.) PE - Polyethylene .198 Outer Shield Outer Shield Material: Layer # Type Outer Shield Material Coverage (%) 1 Braid TC - Tinned Copper 95.000 2 Braid TC - Tinned Copper 95.000 Outer Jacket Outer Jacket Material: Outer Jacket Material PVCNC - Polyvinyl Chloride Non-Contaminating Overall Cable Overall Nominal Diameter: 0.305 in. Mechanical Characteristics (Overall) Operating Temperature Range: -40°C To +60°C UL Temperature Rating: 60°C Bulk Cable Weight: 71 lbs/1000 ft. Max. Recommended Pulling Tension: 168 lbs. Min. Bend Radius/Minor Axis: 3 in. Min. Bend Radius (Continuous Flexing): 6 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CMH CEC/C(UL) Specification: CMH EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes RG Type: 59/U Flame Test UL Flame Test: UL1685 UL Loading, VW-1 Suitability Suitability - Indoor: Yes Suitability - Outdoor: Yes Suitability - Aerial: Yes - When supported by a messenger wire Plenum/Non-Plenum Plenum (Y/N): No Electrical Characteristics (Overall) Nom. Characteristic Impedance: Impedance (Ohm) 75 Nom. Inductance: Inductance (µH/ft) 0.118 Nom. Capacitance Conductor to Shield: Capacitance (pF/ft) 21 Nominal Velocity of Propagation: VP (%) 66 Nominal Delay: Delay (ns/ft) 1.54 Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/1000 ft) 9.9 Nominal Outer Shield DC Resistance: DCR @ 20°C (Ohm/1000 ft) 1.1 Nom. Attenuation: Freq. (MHz) Attenuation (dB/100 ft.) 1 0.3 3.6 0.5 10 0.8 71.5 2.0 135 3.5 270 4.3 360 5.0 540 6.2 720 7.2 750 7.4 1000 9.1 Max. Operating Voltage - UL: Voltage 300 V RMS Max. Operating Voltage - Non-UL: Voltage 1700 V RMS Other Electrical Characteristic 1: Impedance tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination. 75 +/- 1.5 Ohms Other Electrical Characteristic 2: Return Loss tested in accordance with ASTM D-4566 paragraph 45.3, using a 75 ohm fixed bridge and termination. 720A Series is available by special request. Minimum Return Loss: Start Freq. (MHz) Stop Freq. (MHz) Min. RL (dB) 5 216 27 217 850 23 Sweep Test Sweep Testing: 100% sweep tested. 5 Mhz to 850 MHz. Notes (Overall) Notes: Non-Plenum versions comply with Telcordia Specification GR-139-CORE.

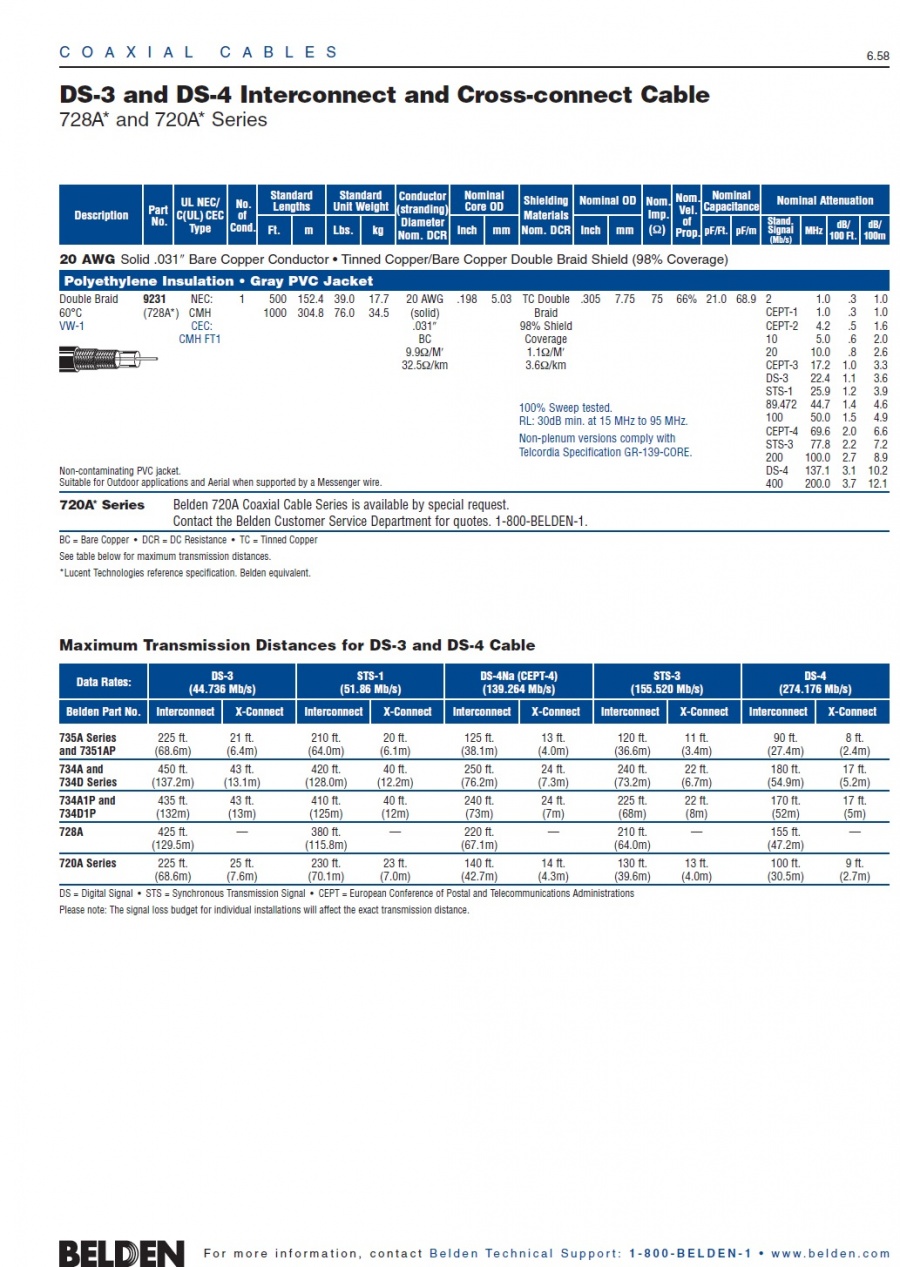

RG Coaxial and Triaxial Reference Guide

DS-3 and DS-4 Interconnect and Cross-connect Cable
728A Type RG-59Belden- 9231 BC PE Inner PVC-NC .
734A Type DS3-4 Belden-734A1 BC GIFHDPE BF/85% TC PVC
734A Type DS3-4 Belden-734A BC GIFHDPE BF/85% TC PVC
734A Type DS3-4 Belden-734A1P  BC FFEP BF/85% TC FLM
734A Type DS3-4 Belden-734A6  BC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D1  SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D12  SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D1P  SPC FFEP BF/85% TC FLM
734D Type DS3-4 Belden-734D1T  SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D2  SPC GIFHDPE BF/85% TC PVC

734D Type DS3-4Belden-734D2T SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D6  SPC GIFHDPE BF/85% TC PVC
735A Type DS3-4 Belden-735A1  SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A12 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A16  SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A1P SPC FFEP BF/93% TC FLM
735A Type DS3-4 Belden-735A1T SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-73502T SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A2  SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A24 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A3 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A6  SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A8  SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A9  SPC FHDPE BF/93% TC PVC
