Belden735A1 Coax - DS3/4 Tele Coaxial Cable 26 AWG, Solid SPC, FHDPE, Beldfoil, 93% TC braid shield CMR, FT4 75Ω DS3-4 1芯鍍銀通訊同軸電纜

162656

商品編號: Belden-735A1

Belden-735A1 Coax - DS3/4 Tele Coaxial Cable 26 AWG, Solid SPC, FHDPE, Beldfoil, 93% TC braid shield CMR, FT4 75Ω DS3-4 1芯鍍銀通訊同軸電纜

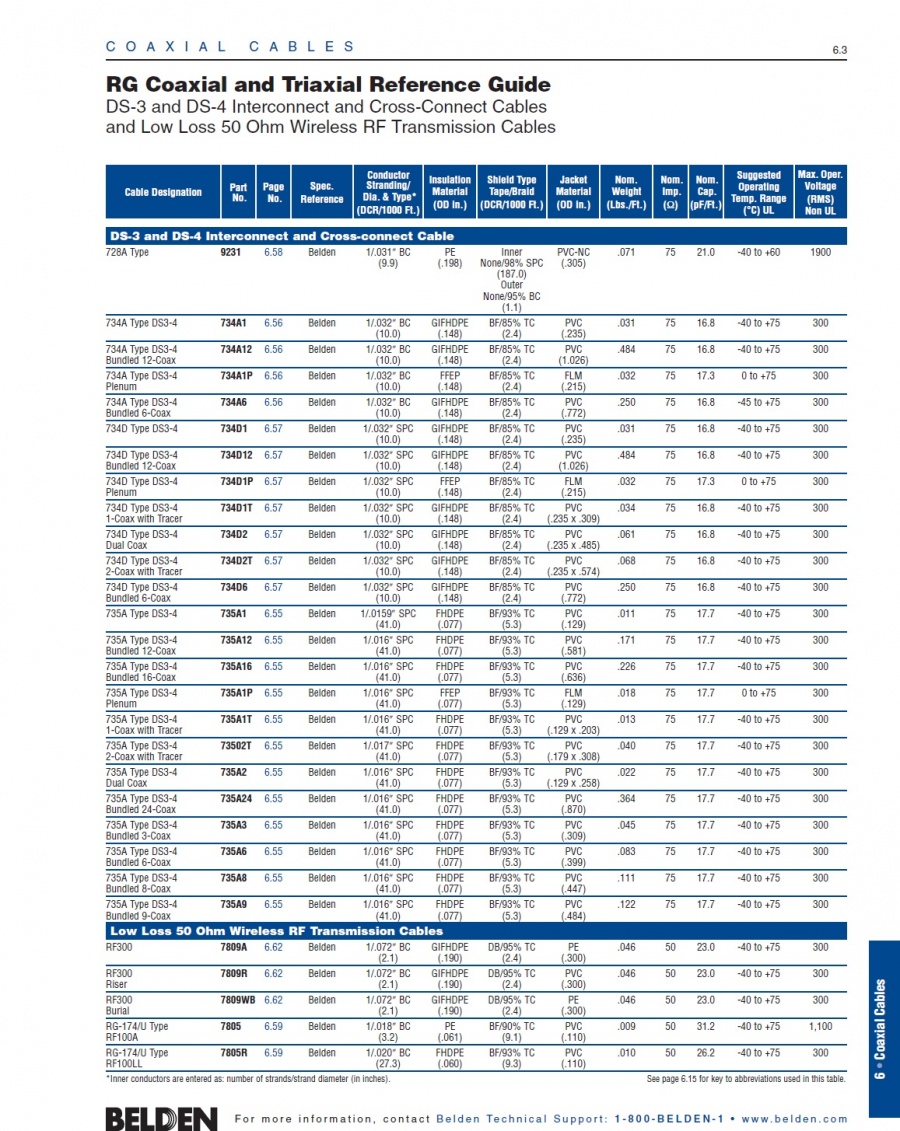

RG Coaxial and Triaxial Reference Guide

DS-3 and DS-4 Interconnect and Cross-connect Cable
728A Type Belden-9231 BC PE Inner PVC-NC .
734A Type DS3-4 Belden-734A1 BC GIFHDPE BF/85% TC PVC
734A Type DS3-4 Belden-734A BC GIFHDPE BF/85% TC PVC
734A Type DS3-4 Belden-734A1P BC FFEP BF/85% TC FLM
734A Type DS3-4 Belden-734A6 BC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D1 SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D12 SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D1P SPC FFEP BF/85% TC FLM
734D Type DS3-4 Belden-734D1T SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D2 SPC GIFHDPE BF/85% TC PVC

734D Type DS3-4Belden-734D2T SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D6 SPC GIFHDPE BF/85% TC PVC
735A Type DS3-4 Belden-735A1 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A12 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A16 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A1P SPC FFEP BF/93% TC FLM
735A Type DS3-4 Belden-735A1T SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-73502T SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A2 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A24 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A3 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A6 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A8 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A9 SPC FHDPE BF/93% TC PVC

735A1 Coax - DS3/4 Telecommunications Cable

Total # Cond.	# Coax
1	1

RG Type	AWG	Stranding	Type	Insulation	Shield
59/U	26	Solid	SPC - Silver Plated Copper	Foam PE - Foam Polyethylene	Aluminum Foil-Polyester Tape/Braid Shield

Jacket	Nom. Core OD (in.)	Nom. OD (in.)	Nom. Cond. DCR (Ohms/M)	Nom. Imp. (Ohms)	Nom. Vel. Of Prop. (%)	Nom. Cap. (pF/ft)
PVC - Polyvinyl Chloride	.0770	.1290	41.000	75.0	76.0	17.700

Description

Coax, 1 coax, 26 AWG, Solid SPC - Silver Plated Copper conductor, Foam PE - Foam high density Polyethylene, Aluminum Foil-Polyester Tape (Beldfoil) shield with 100% shield coverage plus tinned copper braid shield with 93% shield coverage, PVC- Polyvinyl Chloride jacket. Applicable Specification: UL/NEC CMR, C(UL) CMG. Flame Resistance: UL1666, CSA FT4. Use: Suitable for indoor and outdoor applications. 735A Type DS3-4 Coaxial Cable. Coaxial DS-3 Telecommunications Cable. BELDFOIL is a Belden registered trademark.

Disclaimer: Great effort is made to ensure the accuracy of the information presented, but errors or omissions may occur. This listing of information is presented as a courtesy and does not ensure that a product with these specifications is available. Specification and availability should be confirmed with a call to our sales representative or to Customer Service. Have a question? Call us at 1-800-BELDEN-1 or send us a comment

★★★★商品規格描述★★★★

735A1

.

I. DESCRIPTION:

------------

735A TYPE DS3-4 COAXIAL CABLE.

.

II. ELECTRICAL CHARACTERISTICS:

--------------------------

* NOM. IMPEDANCE: 75 OHMS

NOM. INDUCTANCE: .19 MICRO-H/FT

NOM. CAPACITANCE CONDUCTOR

TO SHIELD: 17.7 PF/FT

NOM. VELOCITY OF PROPAGATION: 76 %

NOM.DELAY: 1.34 NS/FT

NOM. CONDUCTOR DC RESISTANCE

@ 20 DEG. C: 41 OHMS/1000 FT.

NOM. SHIELD DC RESISTANCE

@ 20 DEG. C: 5.3 OHMS/1000 FT.

** STRUCTURAL RETURN LOSS: 30 DB MIN.,

15 - 90 MHZ

MAX. OPERATING VOLTAGE: 300 VRMS (UL)

.

MAX. ATTENUATION:

MHZ DB/100 FT. MHZ DB/100 FT.

----- ---------- ----- ----------

1 0.60 44.736 3.6

CEPT-1 1.024 0.61 50 3.8

CEPT-2 4.224 1.1 CEPT-4 69.632 4.5

5 1.2 STS-3 77.760 4.8

10 1.7 100 5.5

CEPT-3 17.184 2.2 DS4 137.088 6.4

DS3 22.368 2.5 200 7.8

STS-1 25.920 2.7

.

III. PHYSICAL CHARACTERISTICS:

------------------------

TEMPERATURE RATING: - 40 TO + 75 DEG. C

MIN. BEND RADIUS: 0.90 "

MIN. FLEXING RADIUS: 1.25 "

MAX. PULLING TENSION: 25 LBS.

NOM. WEIGHT/1000 FT: 11.1 LBS.

CONDUCTOR MATERIAL & NOM DIA: 26AWG SOLID SILVER

PLATED COPPER, .0159"

INSULATION MATERIAL & NOM DIA: FOAM HIGH DENSITY

POLYETHYLENE, .077"

SHIELD TYPE & % COVERAGE: 1ST LAYER - BELDFOIL

100% COV.

2ND LAYER - TC BRAID

93% COV.

JACKET MATERIAL & NOM DIA: PVC

.129"

.

APPLICABLE SPECIFICATIONS: UL/NEC: CMR

C(UL): CMG

COMPLIES WITH ALL THE REQUIREMENTS OF BELLCORE

SPECIFICATION GR-139-CORE.

.

FLAME RESISTANCE: UL: UL-1666

CSA: UL-1666 (FT4)

.

USE: SUITABLE FOR INDOOR AND OUTDOOR APPLICATIONS

.

* TESTED IN ACCORDANCE WITH ASTM D-4566 PARAGRAPH 43.2,

OPTION 2 USING A 75 OHM FIXED BRIDGE AND TERMINATION.

.

** TESTED IN ACCORDANCE WITH ASTM D-4566 PARAGRAPH 45.3,

USING A 75 OHM FIXED BRIDGE AND TERMINATION.
