商品編號: Belden-735A2
Belden735A2 26 AWG Solid .016" (.40mm) SPC, F-HDPE, Beldfoil® + 93% TC Braid Shield, PVC jacket. 75Ω DS3-4 2芯鍍銀通訊同軸電纜
RG Coaxial and Triaxial Reference Guide

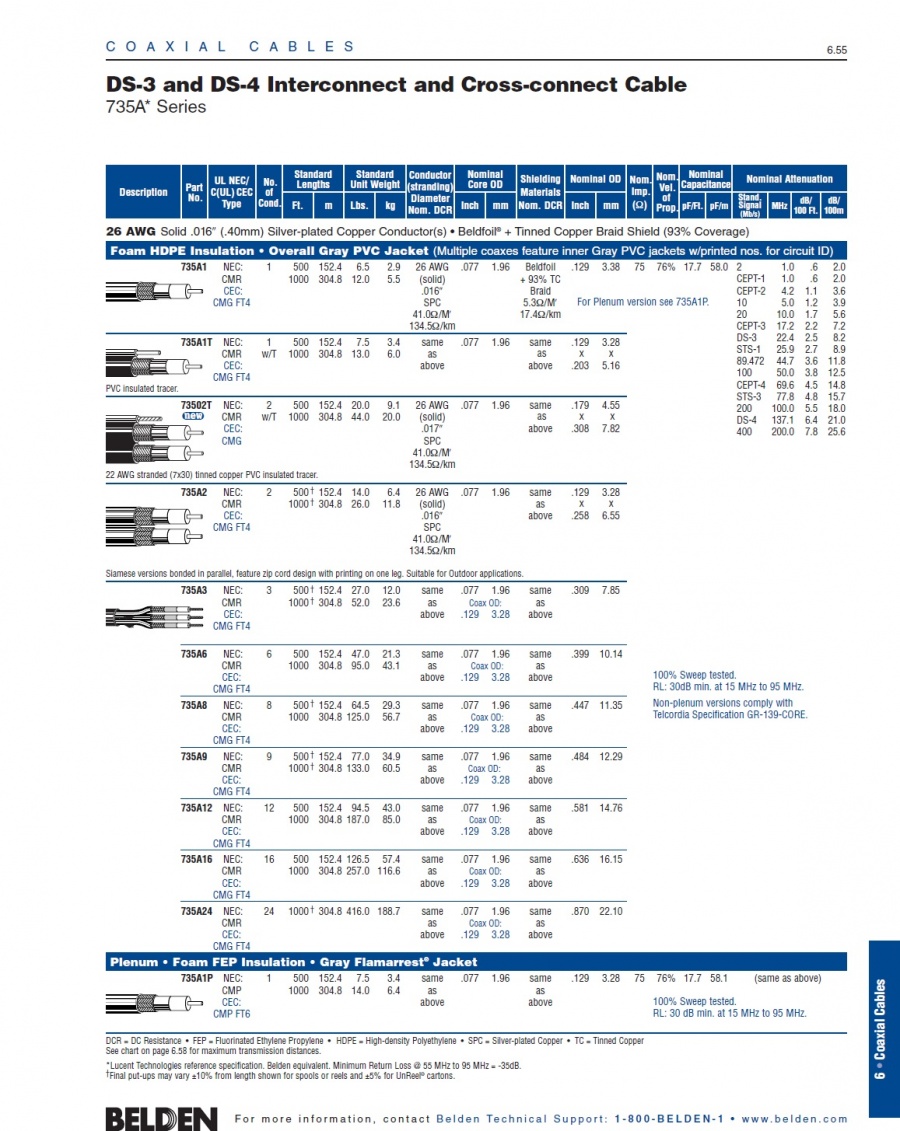

DS-3 and DS-4 Interconnect and Cross-connect Cable
728A Type Belden-9231 BC PE Inner PVC-NC .
734A Type DS3-4 Belden-734A1 BC GIFHDPE BF/85% TC PVC
734A Type DS3-4 Belden-734A BC GIFHDPE BF/85% TC PVC
734A Type DS3-4 Belden-734A1P BC FFEP BF/85% TC FLM
734A Type DS3-4 Belden-734A6 BC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D1 SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D12 SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D1P SPC FFEP BF/85% TC FLM
734D Type DS3-4 Belden-734D1T SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D2 SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4Belden-734D2T SPC GIFHDPE BF/85% TC PVC
734D Type DS3-4 Belden-734D6 SPC GIFHDPE BF/85% TC PVC
735A Type DS3-4 Belden-735A1 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A12 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A16 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A1P SPC FFEP BF/93% TC FLM
735A Type DS3-4 Belden-735A1T SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-73502T SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A2 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A24 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A3 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A6 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A8 SPC FHDPE BF/93% TC PVC
735A Type DS3-4 Belden-735A9 SPC FHDPE BF/93% TC PVC
| DESCRIPTION: |
| 26 AWG Solid .016" (.40mm) Silver-Plated Copper, Foam HDPE Insulation, Beldfoil® plus 93% Tinned Copper Braid Shield, PVC jacket. |
|
|
| PHYSICAL CHARACTERISTICS : |
|
|
| |
|
| CONDUCTOR : |
| Number of Coax: |
2 |
| Total Number of Conductors: |
2 |
| AWG: |
26 |
| Stranding: |
Solid |
| Conductor Material: |
SPC - Silver Plated Copper |
|
| |
|
| INSULATION : |
| Insulation Material: |
FHDPE - Foam High Density Polyethylene |
| Insulation Diameter: |
.077 in. |
|
| |
|
| OUTER SHIELD : |
| Outer Shield Material Trade Name: |
Beldfoil® |
| Outer Shield Type: |
Tape/Braid |
| Outer Shield Material: |
|
| Layer Number |
Trade Name |
Type |
Material |
% Coverage (%) |
| 1 |
Beldfoil® |
Tape |
Aluminum Foil-Polyester |
100 |
| 2 |
|
Braid |
Tinned Copper |
93 |
|
|
|
| |
|
| OUTER JACKET : |
| Outer Jacket Material: |
PVC - Polyvinyl Chloride |
|
| |
|
| OVERALL NOMINAL DIAMETER : |
| Overall Nominal Diameter: |
.129 x .258 in. |
|
|
| MECHANICAL CHARACTERISTICS : |
|
|
| Operating Temperature Range: |
-40°C To +75°C |
| Bulk Cable Weight: |
22.2 lbs/1000 ft. |
| Max. Recommended Pulling Tension: |
50 lbs. |
| Min. Bend Radius (Overall): |
0.9 in. |
| Min. Flexing Radius: |
1.25 in. |
|
| APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE : |
|
|
| |
|
| APPLICABLE STANDARDS : |
| NEC/(UL) Specification: |
CMR |
| CEC/C(UL) Specification: |
CMG |
| Other Specification: |
Telcordia Specification GR-139-Core |
|
| |
|
| FLAME TEST : |
| UL Flame Test: |
UL1666 Vertical Shaft |
| C(UL) Flame Test: |
FT4 |
|
| |
|
| SUITABILITY : |
| Suitability - Indoor: |
Y |
| Suitability - Outdoor: |
Y |
|
|
| ELECTRICAL CHARACTERISTICS : |
|
|
| Nom. Characteristic Impedance: |
75 Ω |
| Nom. Inductance: |
.19 µH/ft |
| Nom. Capacitance Conductor to Shield: |
17.7 pF/ft |
| Nominal Velocity of Propagation: |
76 % |
| Nominal Delay: |
1.34 ns/ft |
| Nom. Conductor DC Resistance @ 20 Deg. C: |
41 Ω/1000 ft |
| Nominal Outer Shield DC Resistance: |
5.3 Ω/1000 ft |
| Minimum Return Loss: |
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Minimum Return Loss (dB) |
| |
|
15 |
95 |
30 |
|
|
|
| Nom. Attenuation (DS3/4): |
|
| Description |
Std. Signal (Mb/s) |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Nom. Attenuation (DS3/4) (dB/100 ft.) |
| |
2 |
1.0 |
|
|
.6 |
| |
CEPT-1 |
1.0 |
|
|
.6 |
| |
CEPT-2 |
4.2 |
|
|
1.1 |
| |
10 |
5.0 |
|
|
1.2 |
| |
20 |
10.0 |
|
|
1.7 |
| |
CEPT-3 |
17.2 |
|
|
2.2 |
| |
DS-3 |
22.4 |
|
|
2.5 |
| |
STS-1 |
25.9 |
|
|
2.7 |
| |
89.472 |
44.7 |
|
|
3.6 |
| |
100 |
50.0 |
|
|
3.8 |
| |
CEPT-4 |
69.6 |
|
|
4.5 |
| |
STS-3 |
77.8 |
|
|
4.8 |
| |
200 |
100 |
|
|
5.5 |
| |
DS-4 |
137.1 |
|
|
6.4 |
| |
400 |
200.0 |
|
|
7.8 |
|
|
|
| Max. Operating Voltage - UL: |
300 V RMS |
| Other Electrical Characteristic 1: |
Impedance tested in accordance with ASTM D-4566 Paragraph 43.2, Option 2 using a 75 Ohm Fixed Bridge and Termination. |
| Other Electrical Characteristic 2: |
RL tested in Accordance with ASTM D-4566 Paragraph 45.3, using a 75 Ohm Fixed Bridge and Termination. |
| Other Electrical Characteristic 3: |
100% Sweep tested |
|
|
| Notes: |
Siamese version feature zip cord design with printing on one leg. |
|
|
| Item |
Description |
Put-Up (ft.) |
Ship Weight (lbs.) |
Jacket Color |
Notes |
| 735A2 0081000 |
#26 PE BRD PVC DUAL |
1000 |
25 |
GRAY |
C Z |
| 735A2 008500 |
#26 PE BRD PVC DUAL |
500 |
14 |
GRAY |
C Z |
|
C = CRATE REEL PUT-UP.
Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
|
|
|
