    Belden735A1P 26 AWG Solid (.40mm) SPC, FFEP , Beldfoil® plus 93% TC Braid Shield, Flamarrest® jacket.CMP 75Ω DS3-4 1芯鍍銀鐵氟龍通訊同軸電纜
    看原圖
    		162659

    商品編號: Belden-735A1P

    735A1P 26 AWG Solid .016" (.40mm) SPC, FFEP , Beldfoil® plus 93% TC Braid Shield, Flamarrest® jacket.CMP 75Ω DS3-4 1芯鍍銀鐵氟龍通訊同軸電纜

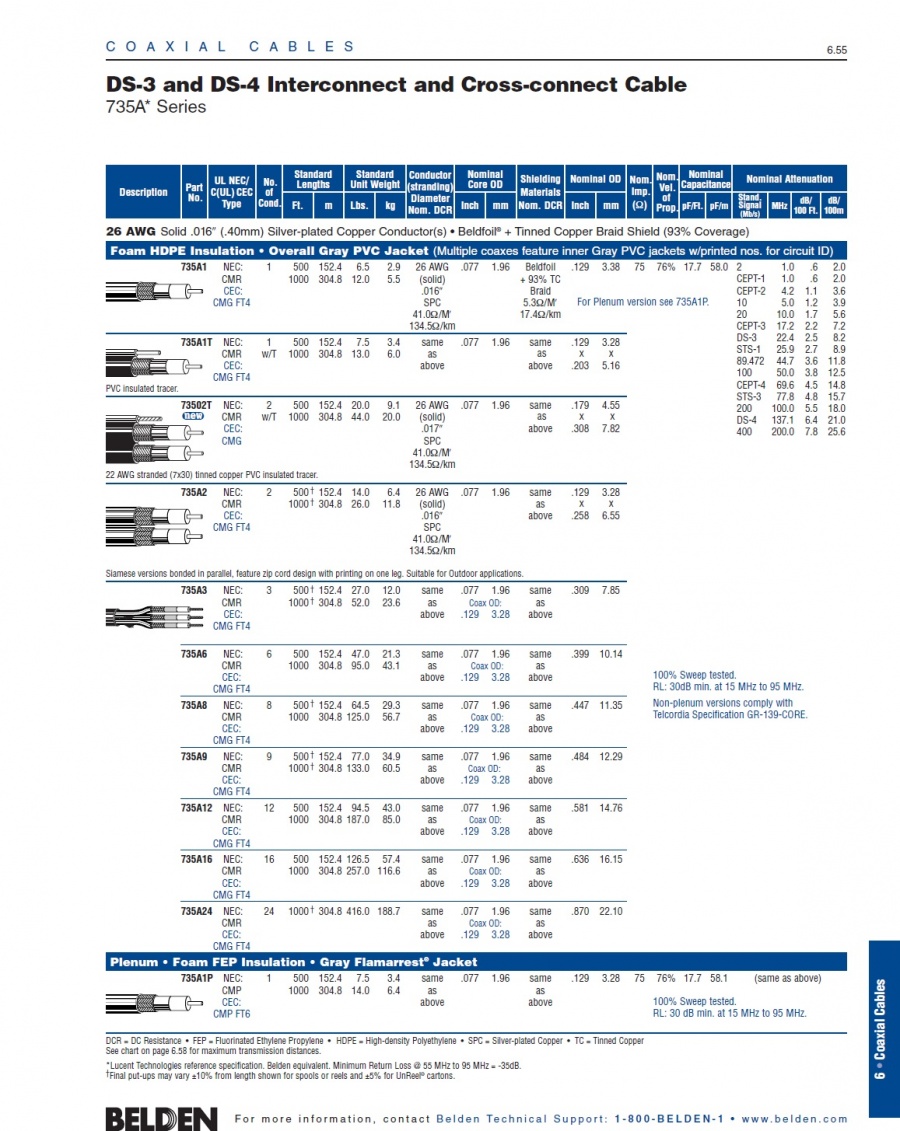

    RG Coaxial and Triaxial Reference Guide

    DS-3 and DS-4 Interconnect and Cross-connect Cable
    728A Type Belden-9231 BC PE Inner PVC-NC .
    734A Type DS3-4 Belden-734A1 BC GIFHDPE BF/85% TC PVC
    734A Type DS3-4 Belden-734A BC GIFHDPE BF/85% TC PVC
    734A Type DS3-4 Belden-734A1P  BC FFEP BF/85% TC FLM
    734A Type DS3-4 Belden-734A6  BC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D1  SPC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D12  SPC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D1P  SPC FFEP BF/85% TC FLM
    734D Type DS3-4 Belden-734D1T  SPC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D2  SPC GIFHDPE BF/85% TC PVC

    734D Type DS3-4Belden-734D2T SPC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D6  SPC GIFHDPE BF/85% TC PVC
    735A Type DS3-4 Belden-735A1  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A12 SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A16  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A1P SPC FFEP BF/93% TC FLM
    735A Type DS3-4 Belden-735A1T SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-73502T SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A2  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A24 SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A3 SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A6  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A8  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A9  SPC FHDPE BF/93% TC PVC

    735A1P
    		    Coax - 735A* Series
    26 AWG solid .016" silver-plated copper conductor(s), plenum, foam FEP insulation, Beldfoil® + tinned copper braid shield (95% coverage), Flamarrest® jacket.    		 For more Information
    Please call

    1-800-Belden1

    Click here for Certificate
    Put Ups and Colors:
    Item ## Putup Ship Weight Color Notes Item Desc
    735A1P 0081000 1,000 FT 14.000 LB GRAY C #26 FPFA SH FLRST
    735A1P 008500 500 FT 7.500 LB GRAY C #26 FPFA SH FLRST
    Notes:
    C = CRATE REEL PUT-UP.
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material Dia. (in.)
    1 26 Solid SPC - Silver Plated Copper .016
    Total Number of Conductors: 1
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    FFEP - Foam Fluorinated Ethylene Propylene .077
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    2   Braid TC - Tinned Copper 93
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Trade Name Outer Jacket Material
    Flamarrest® LS PVC - Low Smoke Polyvinyl Chloride
    Overall Cable
    Overall Nominal Diameter: 0.129 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: 0°C To +75°C
    Bulk Cable Weight: 18 lbs/1000 ft.
    Max. Recommended Pulling Tension: 25 lbs.
    Min. Bend Radius/Minor Axis: 0.900 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMP
    CEC/C(UL) Specification: CMP
    EU Directive 2011/65/EU (ROHS II): Yes
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2006
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Other Specification: Telcordia Specification GR-139-CORE
    Flame Test
    UL Flame Test: NFPA 262
    CSA Flame Test: FT6
    Suitability
    Suitability - Indoor: Yes
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Non-Plenum Number: 735A1
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    75
    Nom. Inductance:
    Inductance (µH/ft)
    0.097
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/ft)
    17.7
    Nominal Velocity of Propagation:
    VP (%)
    76
    Nominal Delay:
    Delay (ns/ft)
    1.34
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    41
    Nom. Inner Shield DC Resistance:
    Description DCR @ 20°C (Ohm/1000 ft)
      5.3
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    5.3
    Max. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1.000 0.600
    1.024 0.610
    4.224 1.100
    5.000 1.200
    10.000 1.700
    17.184 2.200
    22.368 2.500
    25.920 2.700
    44.736 3.600
    50.000 3.800
    69.632 4.500
    77.760 4.800
    100.000 5.500
    137.088 6.400
    200.000 7.800
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Other Electrical Characteristic 1: Impedance tested in Accordance with ASTM D-4566 Paragraph 43.2, Option 2 using a 75 Ohm Fixed Bridge and Termination.
    Other Electrical Characteristic 2: RL tested in Accordance with ASTM D-4566 Paragraph 45.3, using a 75 Ohm Fixed Bridge and Termination.
    Other Electrical Characteristic 3: 100% Sweep tested.
    Minimum Return Loss:
    Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Min. RL (dB)
