    Belden 734A1P 20 awg solid .032" (.81mm) copper, Beldfoil®+ 85% TC braid, FFEP, Flamarrest® jacket, Plenum 75Ω DS3-4 1芯鐵氟龍通訊同軸電纜
    看原圖
    		162660

    商品編號: Belden-734A1P

    Belden734A1P 20 awg solid .032" (.81mm) copper, Beldfoil®+ 85% TC braid, FFEP, Flamarrest® jacket, Plenum 75Ω DS3-4 1芯鐵氟龍通訊同軸電纜

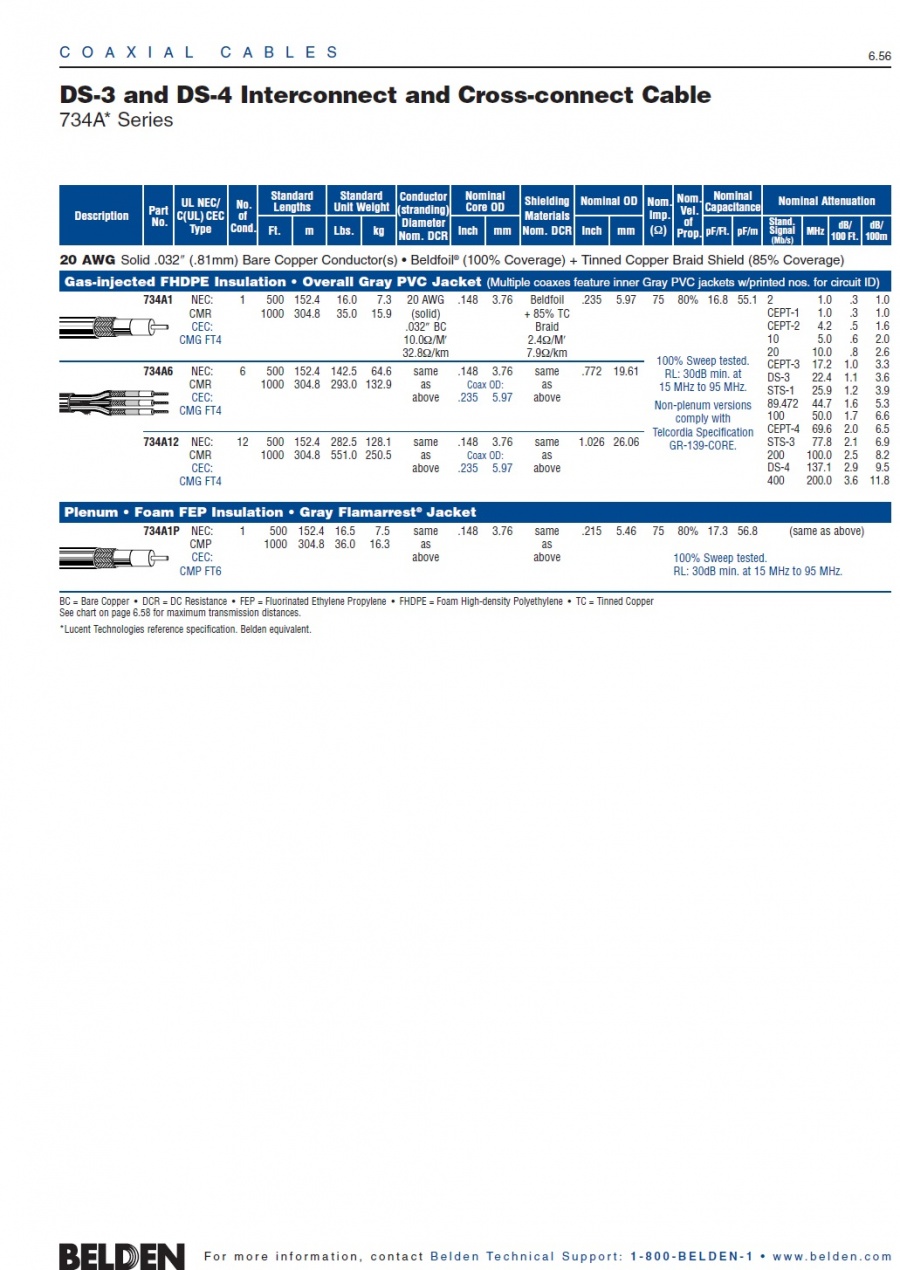

    RG Coaxial and Triaxial Reference Guide

    DS-3 and DS-4 Interconnect and Cross-connect Cable
    728A Type Belden-9231 BC PE Inner PVC-NC .
    734A Type DS3-4 Belden-734A1 BC GIFHDPE BF/85% TC PVC
    734A Type DS3-4 Belden-734A BC GIFHDPE BF/85% TC PVC
    734A Type DS3-4 Belden-734A1P  BC FFEP BF/85% TC FLM
    734A Type DS3-4 Belden-734A6  BC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D1  SPC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D12  SPC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D1P  SPC FFEP BF/85% TC FLM
    734D Type DS3-4 Belden-734D1T  SPC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D2  SPC GIFHDPE BF/85% TC PVC

    734D Type DS3-4Belden-734D2T SPC GIFHDPE BF/85% TC PVC
    734D Type DS3-4 Belden-734D6  SPC GIFHDPE BF/85% TC PVC
    735A Type DS3-4 Belden-735A1  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A12 SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A16  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A1P SPC FFEP BF/93% TC FLM
    735A Type DS3-4 Belden-735A1T SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-73502T SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A2  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A24 SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A3 SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A6  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A8  SPC FHDPE BF/93% TC PVC
    735A Type DS3-4 Belden-735A9  SPC FHDPE BF/93% TC PVC

    734A1P
    		    Coax - 734A Series
    20 AWG solid .032" (.81mm) bare copper conductor(s), plenum, foam FEP insulation, Beldfoil® + tinned copper braid shield (85% coverage), Flamarrest® jacket.    		 For more Information
    Please call

    1-800-Belden1

    Click here for Certificate
    Put Ups and Colors:
    Item ## Putup Ship Weight Color Notes Item Desc
    734A1P 0081000 1,000 FT 36.000 LB GRAY C #20 FFEP SH FLRST
    734A1P 008500 500 FT 18.000 LB GRAY C #20 FFEP SH FLRST
    Notes:
    C = CRATE REEL PUT-UP.
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material Dia. (in.)
    1 20 Solid BC - Bare Copper .032
    Total Number of Conductors: 1
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    FFEP - Foam Fluorinated Ethylene Propylene .148
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    2   Braid TC - Tinned Copper 85
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Trade Name Outer Jacket Material
    Flamarrest® LS PVC - Low Smoke Polyvinyl Chloride
    Overall Cable
    Overall Nominal Diameter: 0.213 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: 0°C To +75°C
    Bulk Cable Weight: 33 lbs/1000 ft.
    Max. Recommended Pulling Tension: 52 lbs.
    Min. Bend Radius/Minor Axis: 2.250 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMP
    CEC/C(UL) Specification: CMP
    EU Directive 2011/65/EU (ROHS II): Yes
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: NFPA 262
    CSA Flame Test: FT6
    Suitability
    Suitability - Indoor: Yes
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Non-Plenum Number: 734A1
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    75
    Nom. Inductance:
    Inductance (µH/ft)
    .095
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/ft)
    17.3
    Nominal Velocity of Propagation:
    VP (%)
    80
    Nominal Delay:
    Delay (ns/ft)
    1.27
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    10.1
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    2.4
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Other Electrical Characteristic 1: Impedance tested in accordance with ASTM D-4566 Paragraph 43.2, option 2 using a 75 OHM fixed bridge and termination.
    Other Electrical Characteristic 2: RL tested in accordance with ASTM D-4566 Paragraph 43.2, option 2 using a 75 OHM fixed bridge and termination.
    Other Electrical Characteristic 3: 100% Sweep tested.
    Minimum Return Loss:
    Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Min. RL (dB)
        15 95 30
