Belden-NP291 Banana Peel Plenum

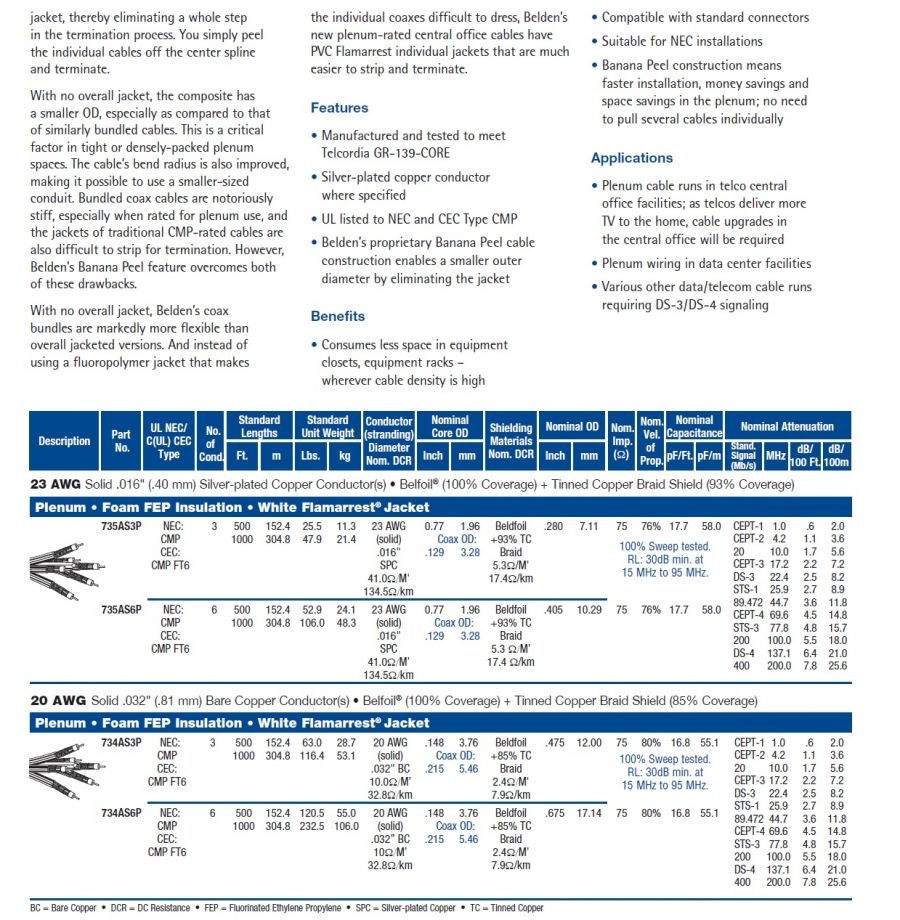

DS-3 & DS-4 Coax Cables Silver-plated Copper Conductor Foam FEP Insulation • White Flamarrest® Jacket

DS-3 &DS-4

Belden- 735AS3P  SPC  Awg26  3C

Belden- 735AS6P  SPC  Awg26  6C

Belden- 734AS3P  BC  Awg20  3C

Belden- 734AS6P  BC  Awg20  6C

735AS6P

Coax - Bundled 735 Plenum Telecommunication Coax 6-26 AWG solid silver plated copper conductors, foam FEP insulation, Beldfoil® shield (100% coverage) plus a tinned copper braid shield (93% coverage), Flamarrest® jacket. Banana Peel®.

For more Information please call 1-800-Belden1

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 735AS6P 0081000 1,000 FT 96.000 LB GRAY 　 BONDED FILLER COMPOSITE 735AS6P 008500 500 FT 53.000 LB GRAY 　 BONDED FILLER COMPOSITE

Physical Characteristics (Overall)

Conductor

AWG:

# Coax AWG Stranding Conductor Material Dia. (in.) 6 26 Solid SPC - Silver Plated Copper 0.016

Insulation

Insulation Material:

Insulation Trade Name Insulation Material Dia. (in.) Teflon FFEP - Foam Fluorinated Ethylene Propylene 0.077

Fillers

Fillers:

Extruded PVC Spline

Inner Shield

Inner Shield Material:

Layer # Inner Shield Trade Name Type Inner Shield Material Coverage (%) 1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100.000 2 　 Braid TC - Tinned Copper 93.000

Inner Jacket

Inner Jacket Material:

Inner Jacket Trade Name Inner Jacket Material Nom. Dia. (in.) Flamarrest(R) LS PVC - Low Smoke Polyvinyl Chloride 0.129

Overall Cabling

Overall Nominal Diameter:

0.405 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +75°C

UL Temperature Rating:

60°C

Non-UL Temperature Rating:

75°C

Bulk Cable Weight:

90 lbs/1000 ft.

Min. Bend Radius (Overall):

4 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMP

CEC/C(UL) Specification:

CMP

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

11/06/2008

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Flame Test

UL Flame Test:

NFPA 262 Plenum Flame Test (UL910)(FT6)

C(UL) Flame Test:

FT6

Suitability

Suitability - Indoor:

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Yes

Non-Plenum Number:

735A6

Electrical Characteristics (Overall)

Nom. Characteristic Impedance:

Impedance (Ohm) 75.000

Nom. Inductance:

Inductance (µH/ft) 0.970

Nom. Capacitance Conductor to Shield:

Capacitance (pF/ft) 17.500

Nominal Velocity of Propagation:

VP (%) 76.000

Nominal Delay:

Delay (ns/ft) 1.340

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 41.000

Nom. Inner Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 5.300

Max. Attenuation:

Freq. (MHz) Attenuation (dB/100 ft.) 1.000 0.600 1.024 0.610 4.224 1.100 5.000 1.200 10.000 1.700 17.184 2.200 22.368 2.500 25.920 2.700 44.736 3.600 50.000 3.800 69.632 4.500 77.760 4.800 100.000 5.500 137.088 6.400 200.000 7.800

Max. Operating Voltage - UL:

Voltage 300 V RMS

Minimum Return Loss:

Start Freq. (MHz) Stop Freq. (MHz) Min. RL (dB) 15.000 95.000 30.000
