Belden-GigaBIX Multi System CAT 6 網路連接系统組合

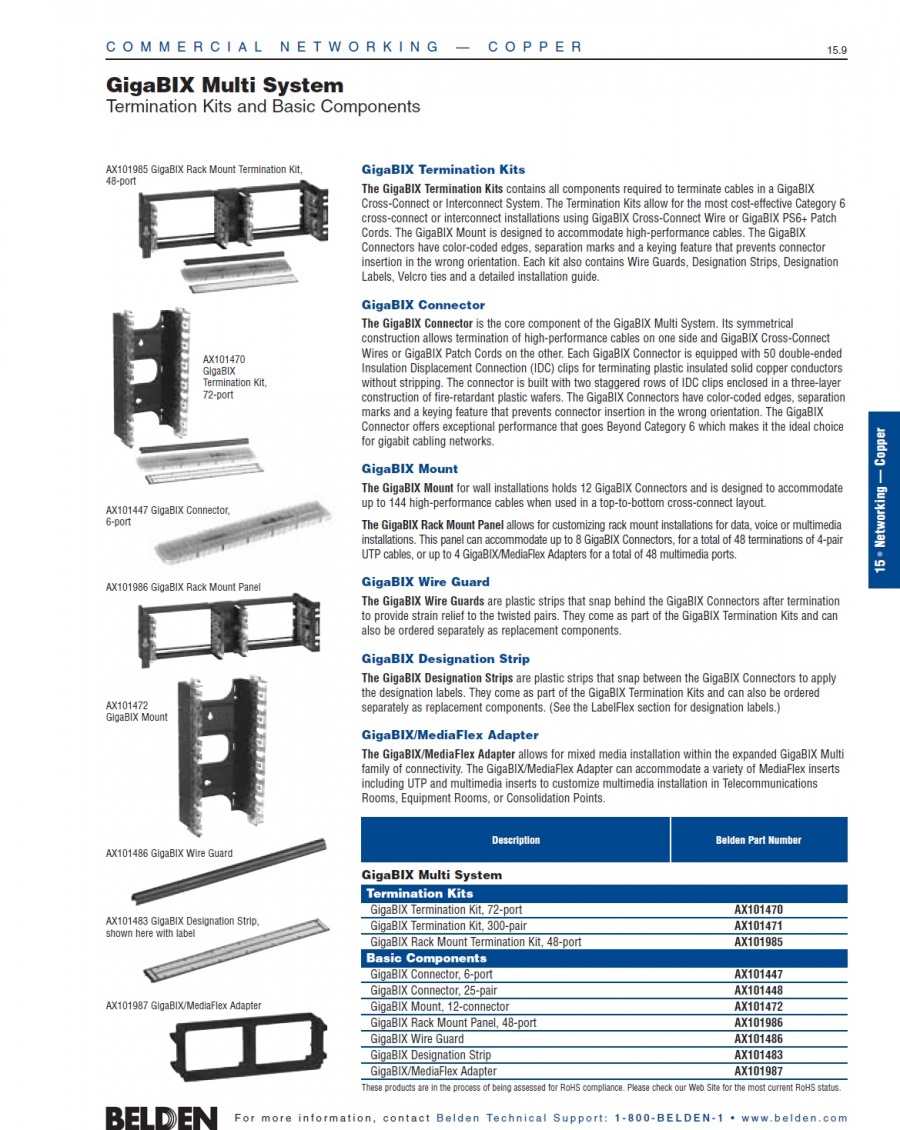

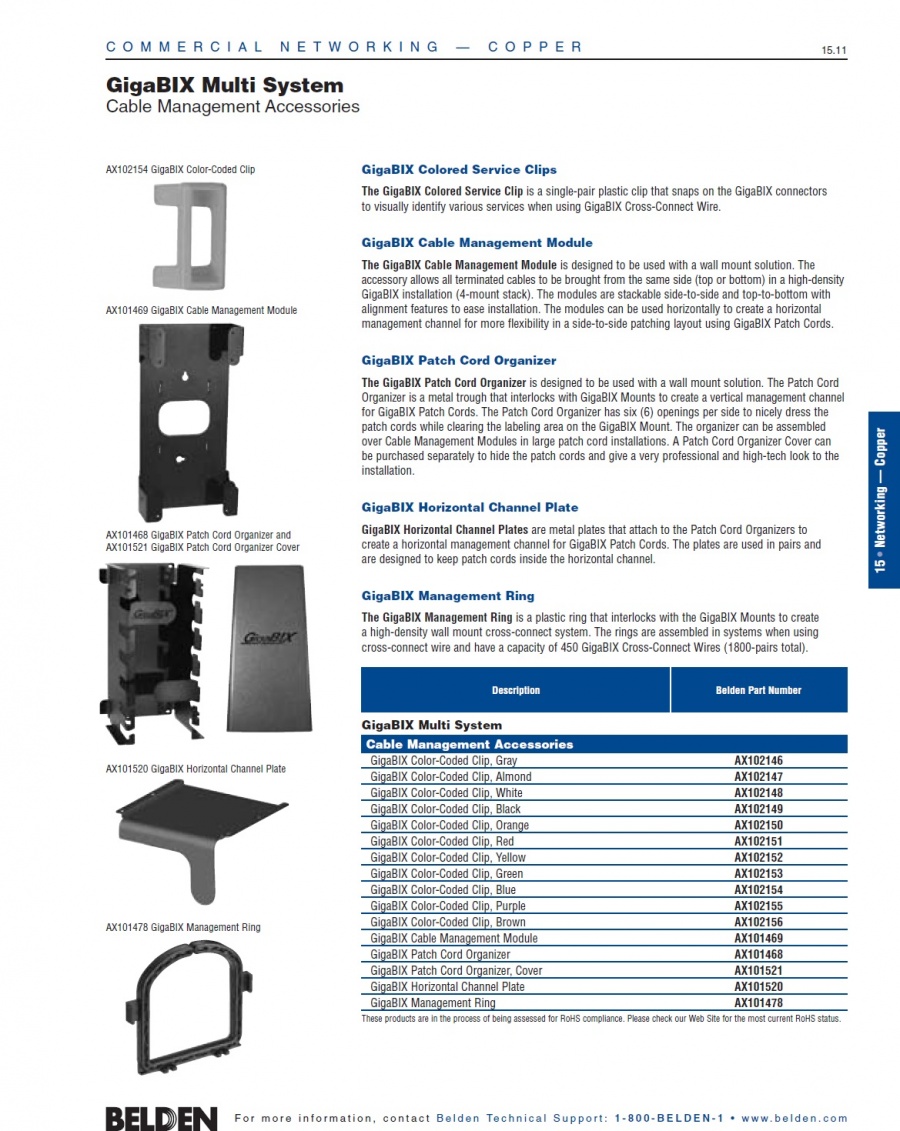

GigaBIX Multi System
Termination Kits and Basic Components
　

1. AX101985 GigaBIX Rack Mount Termination Kit, 48-port

2. AX101470 GigaBIX Termination Kit, 72-port

3. AX101447 GigaBIX Connector, 6-port

4. AX101986 GigaBIX Rack Mount Panel

5. AX101472 GigaBIX Mount

6. AX101486 GigaBIX Wire Guard

7. AX101483 GigaBIX Designation Strip,
shown here with label

8. AX101987 GigaBIX/MediaFlex Adapter

9. AX101945 GigaBIX PS6+ Patch Cord, BIX-BIX, 4 ft.

10. AX101951 GigaBIX PS6+ Patch Cord, BIX-8MOD, 4 ft.

11. 24570521 GigaBIX Cross-connect Wire, 4-pair

12. AX102154 GigaBIX Color-Coded Clip

13. AX101469 GigaBIX Cable Management Module

14. AX101468 GigaBIX Patch Cord Organizer and
AX101521 GigaBIX Patch Cord Organizer Cover

15. AX101520 GigaBIX Horizontal Channel Plate

16. AX101478 GigaBIX Management Ring

GigaBIX Multi System
Termination Kits and Basic Components
　

GigaBIX Termination Kits
The GigaBIX Termination Kits contains all components required to terminate cables in a GigaBIX
Cross-Connect or Interconnect System. The Termination Kits allow for the most cost-effective Category 6
cross-connect or interconnect installations using GigaBIX Cross-Connect Wire or GigaBIX PS6+ Patch
Cords. The GigaBIX Mount is designed to accommodate high-performance cables. The GigaBIX
Connectors have color-coded edges, separation marks and a keying feature that prevents connector
insertion in the wrong orientation. Each kit also contains Wire Guards, Designation Strips, Designation
Labels, Velcro ties and a detailed installation guide.
　

GigaBIX Connector
The GigaBIX Connector is the core component of the GigaBIX Multi System. Its symmetrical
construction allows termination of high-performance cables on one side and GigaBIX Cross-Connect
Wires or GigaBIX Patch Cords on the other. Each GigaBIX Connector is equipped with 50 double-ended
Insulation Displacement Connection (IDC) clips for terminating plastic insulated solid copper conductors
without stripping. The connector is built with two staggered rows of IDC clips enclosed in a three-layer
construction of fire-retardant plastic wafers. The GigaBIX Connectors have color-coded edges, separation
marks and a keying feature that prevents connector insertion in the wrong orientation. The GigaBIX
Connector offers exceptional performance that goes Beyond Category 6 which makes it the ideal choice
for gigabit cabling networks.
　

GigaBIX Mount
The GigaBIX Mount for wall installations holds 12 GigaBIX Connectors and is designed to accommodate
up to 144 high-performance cables when used in a top-to-bottom cross-connect layout.
The GigaBIX Rack Mount Panel allows for customizing rack mount installations for data, voice or multimedia
installations. This panel can accommodate up to 8 GigaBIX Connectors, for a total of 48 terminations of 4-pair
UTP cables, or up to 4 GigaBIX/MediaFlex Adapters for a total of 48 multimedia ports.
　

GigaBIX Wire Guard
The GigaBIX Wire Guards are plastic strips that snap behind the GigaBIX Connectors after termination
to provide strain relief to the twisted pairs. They come as part of the GigaBIX Termination Kits and can
also be ordered separately as replacement components.
　

GigaBIX Designation Strip
The GigaBIX Designation Strips are plastic strips that snap between the GigaBIX Connectors to apply
the designation labels. They come as part of the GigaBIX Termination Kits and can also be ordered
separately as replacement components. (See the LabelFlex section for designation labels.)
　

GigaBIX/MediaFlex Adapter
The GigaBIX/MediaFlex Adapter allows for mixed media installation within the expanded GigaBIX Multi
family of connectivity. The GigaBIX/MediaFlex Adapter can accommodate a variety of MediaFlex inserts
including UTP and multimedia inserts to customize multimedia installation in Telecommunications
Rooms, Equipment Rooms, or Consolidation Points.

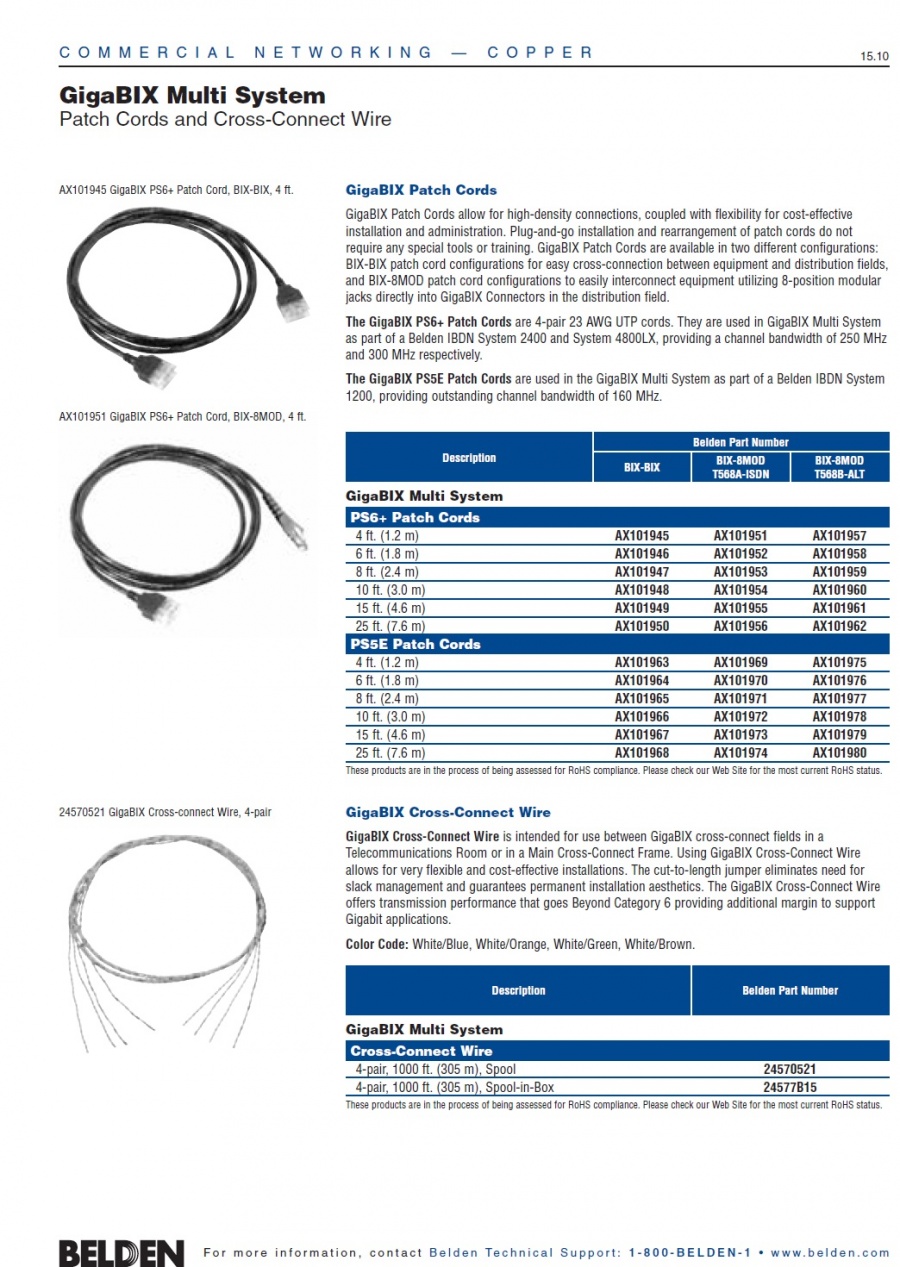

GigaBIX Patch Cords
GigaBIX Patch Cords allow for high-density connections, coupled with flexibility for cost-effective
installation and administration. Plug-and-go installation and rearrangement of patch cords do not
require any special tools or training. GigaBIX Patch Cords are available in two different configurations:
BIX-BIX patch cord configurations for easy cross-connection between equipment and distribution fields,
and BIX-8MOD patch cord configurations to easily interconnect equipment utilizing 8-position modular
jacks directly into GigaBIX Connectors in the distribution field.
　

The GigaBIX PS6+ Patch Cords are 4-pair 23 AWG UTP cords. They are used in GigaBIX Multi System
as part of a Belden IBDN System 2400 and System 4800LX, providing a channel bandwidth of 250 MHz
and 300 MHz respectively.
　

The GigaBIX PS5E Patch Cords are used in the GigaBIX Multi System as part of a Belden IBDN System
1200, providing outstanding channel bandwidth of 160 MHz.
