商品編號: Belden-Module-GigaFlex

Belden-CAT5E CAT6 Workstation Outlets GigaFlex PS6+, PS5E , EZ-MDVO PS5E Module 資訊插座接頭

Workstation Outlets
GigaFlex PS6+ Modules Category 6

Belden-AX101067 GigaFlex PS6+Module

GigaFlex PS5E Modules Category 5E and
Flex Modules, USOC-coded
　

Belden-AX101051 GigaFlex PS5E Module
Belden-AX101037 Flex Module, USOC-coded

EZ-MDVO PS5E Modules Category 5E
and EZ-MDVO Modules, USOC-coded
　

Belden-AX100654 EZ-MDVO PS5E Module
Belden-AX100177 EZ-MDVO Module, USOC-coded

Workstation Outlets
GigaFlex PS6+ Modules Category 6

GigaFlex PS6+ Module
The GigaFlex PS6+ Module is a punch down UTP connector based on a patented Encapsulated Lead
Frame technology ensuring excellent long-term reliability as well as extremely stable transmission
performance. The unmatched Beyond Cat6 performance exceeds all parameters specified in the
Category 6 standard. All performance characteristics have been set to guarantee transmission
performance up to 300 MHz and a data-rate of up to 4.8 Gb/s.
　

The GigaFlex PS6+ is the module of choice for terminating UTP cables into the MediaFlex and Interface
Outlet Series. It can also be mixed and matched with a wide variety of MDVO adapters, boxes and patch
panels to suit practically any installation configuration for workstation outlet, consolidation point and
telecommunications room applications.
　

A keystone-style is also available for terminating UTP cables into keystone-style mounting hardware.
It can be easily snapped into simple sheet metal cut-outs (panel mounting) for installation into
consolidation point or multi-user custom-built devices.
　

Also available is the GigaFlex PS6+ Module, Clipsal-style which is fully compatible with Clipsal
faceplates and mounting hardware.

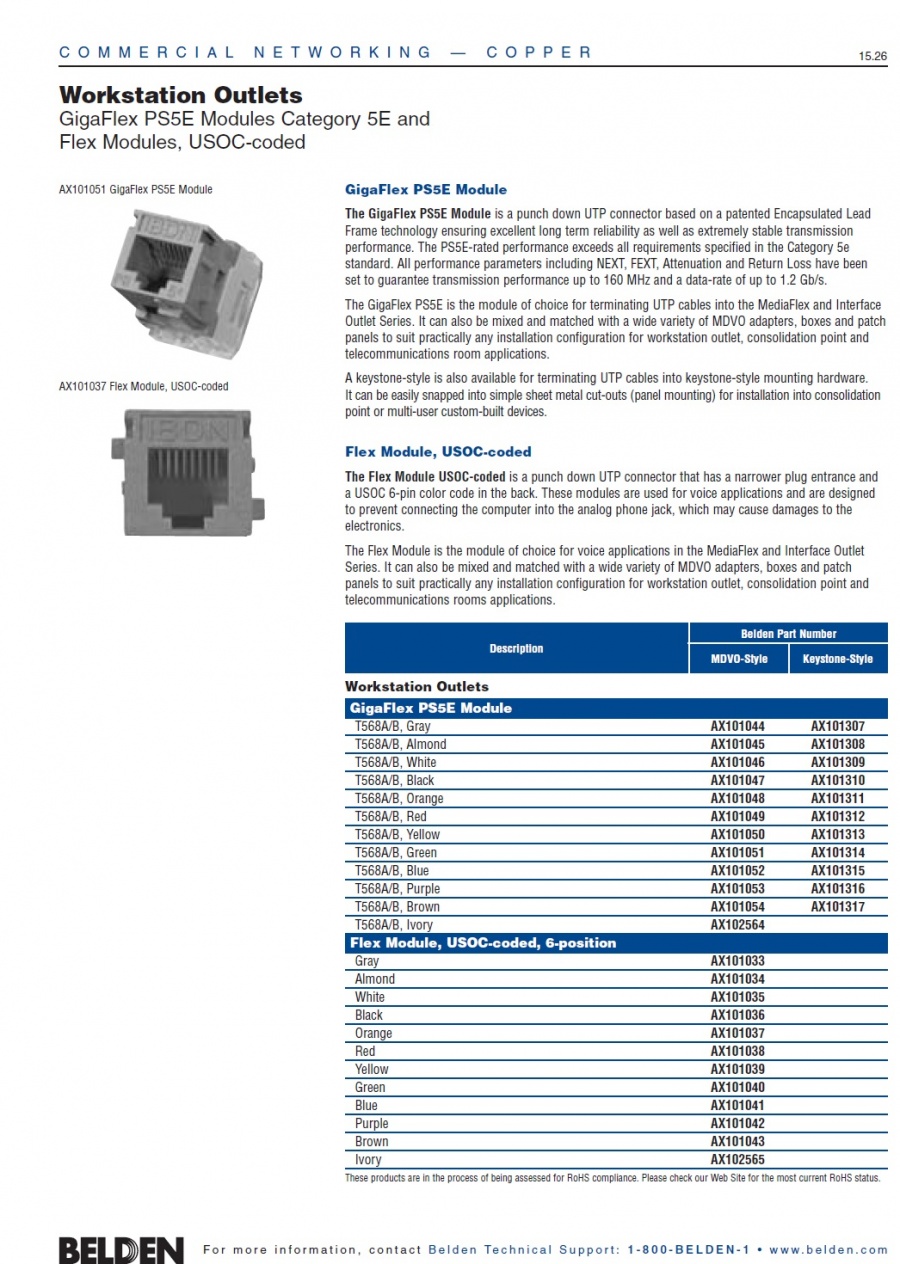

GigaFlex PS5E Modules Category 5E and
Flex Modules, USOC-coded
　

GigaFlex PS5E Module
The GigaFlex PS5E Module is a punch down UTP connector based on a patented Encapsulated Lead
Frame technology ensuring excellent long term reliability as well as extremely stable transmission
performance. The PS5E-rated performance exceeds all requirements specified in the Category 5e
standard. All performance parameters including NEXT, FEXT, Attenuation and Return Loss have been
set to guarantee transmission performance up to 160 MHz and a data-rate of up to 1.2 Gb/s.
　

The GigaFlex PS5E is the module of choice for terminating UTP cables into the MediaFlex and Interface
Outlet Series. It can also be mixed and matched with a wide variety of MDVO adapters, boxes and patch
panels to suit practically any installation configuration for workstation outlet, consolidation point and
telecommunications room applications.
　

A keystone-style is also available for terminating UTP cables into keystone-style mounting hardware.
It can be easily snapped into simple sheet metal cut-outs (panel mounting) for installation into consolidation
point or multi-user custom-built devices.
　

Flex Module, USOC-coded
The Flex Module USOC-coded is a punch down UTP connector that has a narrower plug entrance and
a USOC 6-pin color code in the back. These modules are used for voice applications and are designed
to prevent connecting the computer into the analog phone jack, which may cause damages to the
electronics.
　

The Flex Module is the module of choice for voice applications in the MediaFlex and Interface Outlet
Series. It can also be mixed and matched with a wide variety of MDVO adapters, boxes and patch
panels to suit practically any installation configuration for workstation outlet, consolidation point and
telecommunications rooms applications.

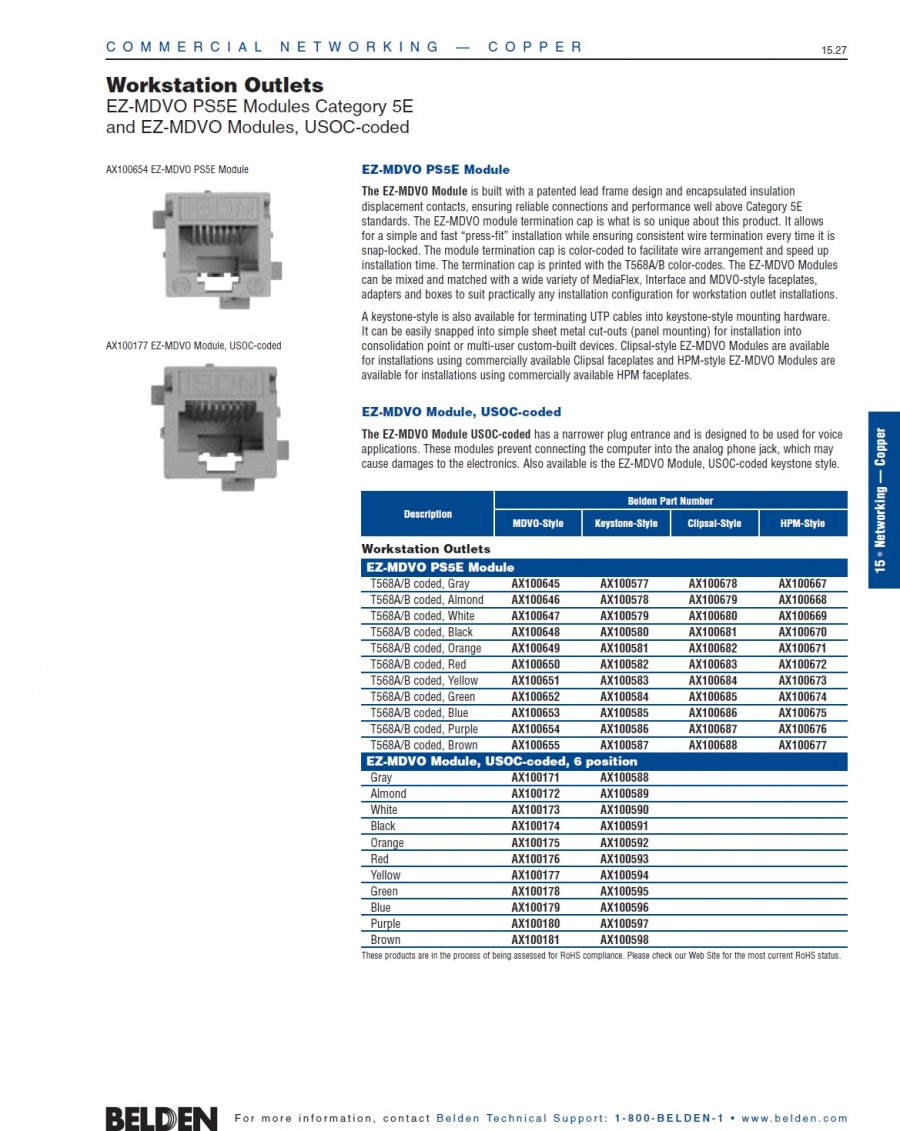

EZ-MDVO PS5E Modules Category 5E
and EZ-MDVO Modules, USOC-coded
　

EZ-MDVO PS5E Module
The EZ-MDVO Module is built with a patented lead frame design and encapsulated insulation
displacement contacts, ensuring reliable connections and performance well above Category 5E
standards. The EZ-MDVO module termination cap is what is so unique about this product. It allows
for a simple and fast “press-fit” installation while ensuring consistent wire termination every time it is
snap-locked. The module termination cap is color-coded to facilitate wire arrangement and speed up
installation time. The termination cap is printed with the T568A/B color-codes. The EZ-MDVO Modules
can be mixed and matched with a wide variety of MediaFlex, Interface and MDVO-style faceplates,
adapters and boxes to suit practically any installation configuration for workstation outlet installations.
　

A keystone-style is also available for terminating UTP cables into keystone-style mounting hardware.
It can be easily snapped into simple sheet metal cut-outs (panel mounting) for installation into
consolidation point or multi-user custom-built devices. Clipsal-style EZ-MDVO Modules are available
for installations using commercially available Clipsal faceplates and HPM-style EZ-MDVO Modules are
available for installations using commercially available HPM faceplates.
　

EZ-MDVO Module, USOC-coded
The EZ-MDVO Module USOC-coded has a narrower plug entrance and is designed to be used for voice
applications. These modules prevent connecting the computer into the analog phone jack, which may
cause damages to the electronics. Also available is the EZ-MDVO Module, USOC-coded keystone style.
