商品編號: Belden-Faceplate

Belden- MediaFlex Faceplate Kits and MediaFlex Plates Adapter Boxes Accessories 媒體資訊面板套件和轉接盒附件

Workstation Outlets
MediaFlex Faceplate Kits and MediaFlex Plates
　

Belden-AX101786 MediaFlex Faceplate Kit, 6-port

Belden-AX101779 MediaFlex Faceplate Kit, 2-port
Belden-AX101785 MediaFlex Faceplate Kit, 4-port
Belden-AX101748 MediaFlex Plate, Single Gang
Belden-AX101869 MediaFlex Plate, Double Gang

MediaFlex Adapter Boxes and MediaFlex Inserts

Belden-AX101874 MediaFlex Adapter Box, Double Gang

Belden-AX101756 MediaFlex MDVO (style) Insert,
             2-port, Angled
Belden-AX101752 MediaFlex MDVO (style) Insert,
             2-port, Flush
Belden-AX101760 MediaFlex Filler Insert, 1-unit
Belden-AX101764 MediaFlex Filler Insert, 2-unit
Belden-AX101768 PS6+ MediaFlex GigaFlex Insert, 2-port

MediaFlex Inserts (continued)
and Accessories

Belden-AX101878 MediaFlex RCA Insert, 3-port, Angled

Belden-AX101882 MediaFlex SVHS Insert, 1-port, Angled

Belden-AX101886 MediaFlex SVGA Insert, 1-port, Angled

Belden-AX101937 MediaFlex SC Duplex Insert, Angled

Belden-AX101777 Labeling Window Cover

Belden-AX101790 Dust Cover

MDVO Faceplates Flush and Angled

Belden-A0405257 MDVO Faceplate, 1-port

Belden-A0405294 MDVO Faceplate, 8-port

Belden-A0620807 MDVO Faceplate, 12-port

Belden- A0645267 MDVO Angled Entry Faceplate,
              shown here with modules

Interface Plate and Surface Adapter Boxes

Belden-AX101431 Interface Plate, 2-port,
             shown here with modules

Belden-AX101438 Interface Plate, 4-port,
             shown here with modules

Belden-AX101441 Interface Plate, 6-port,
             shown here with modules

Belden-AX101474 Interface/MDVO Surface Adapter Box

Workstation Outlets

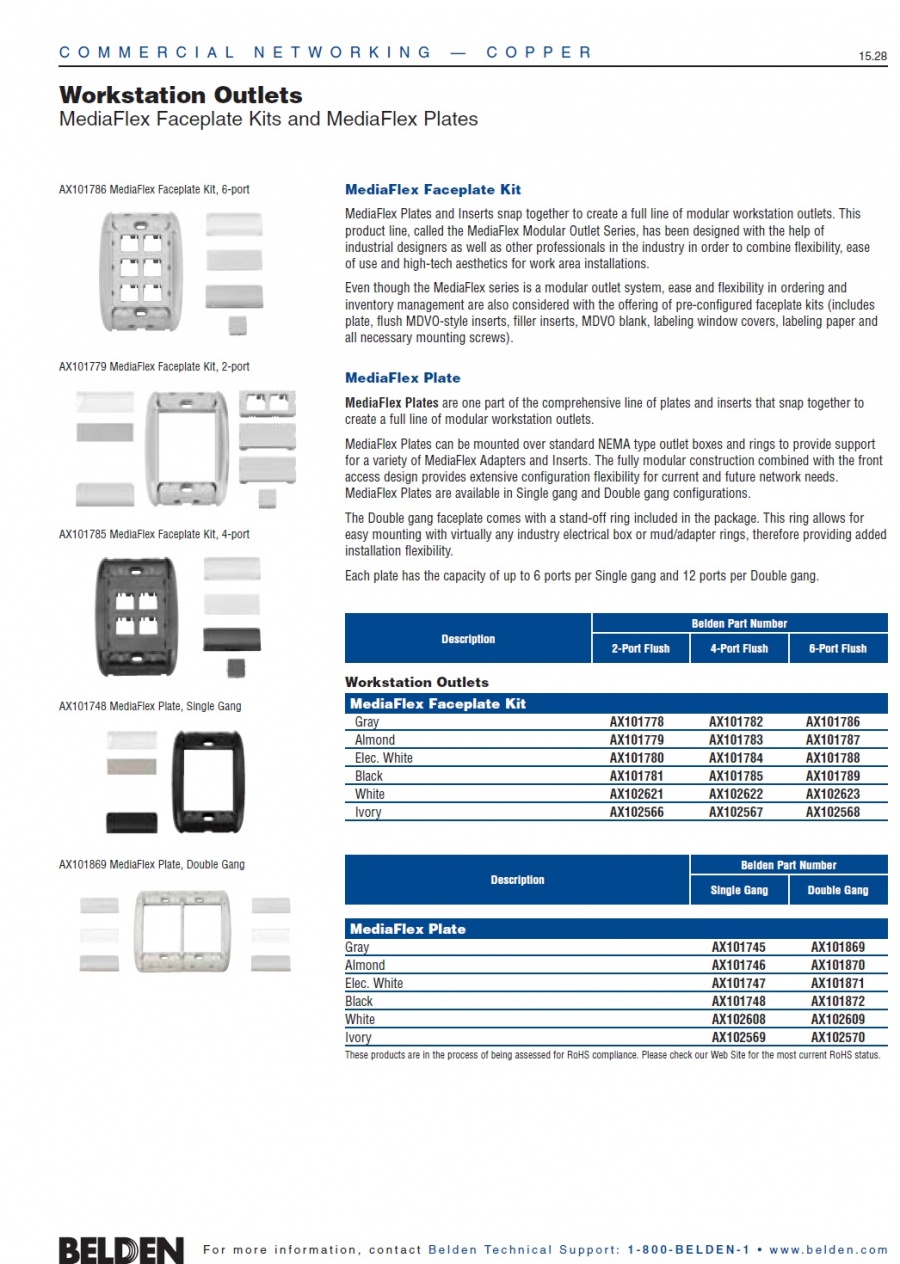

MediaFlex Faceplate Kits and MediaFlex Plates

MediaFlex Faceplate Kit
MediaFlex Plates and Inserts snap together to create a full line of modular workstation outlets. This
product line, called the MediaFlex Modular Outlet Series, has been designed with the help of
industrial designers as well as other professionals in the industry in order to combine flexibility, ease
of use and high-tech aesthetics for work area installations.
　

Even though the MediaFlex series is a modular outlet system, ease and flexibility in ordering and
inventory management are also considered with the offering of pre-configured faceplate kits (includes
plate, flush MDVO-style inserts, filler inserts, MDVO blank, labeling window covers, labeling paper and
all necessary mounting screws).
　

MediaFlex Plate
MediaFlex Plates are one part of the comprehensive line of plates and inserts that snap together to
create a full line of modular workstation outlets.
　

MediaFlex Plates can be mounted over standard NEMA type outlet boxes and rings to provide support
for a variety of MediaFlex Adapters and Inserts. The fully modular construction combined with the front
access design provides extensive configuration flexibility for current and future network needs.
MediaFlex Plates are available in Single gang and Double gang configurations.
　

The Double gang faceplate comes with a stand-off ring included in the package. This ring allows for
easy mounting with virtually any industry electrical box or mud/adapter rings, therefore providing added
installation flexibility.
　

Each plate has the capacity of up to 6 ports per Single gang and 12 ports per Double gang.

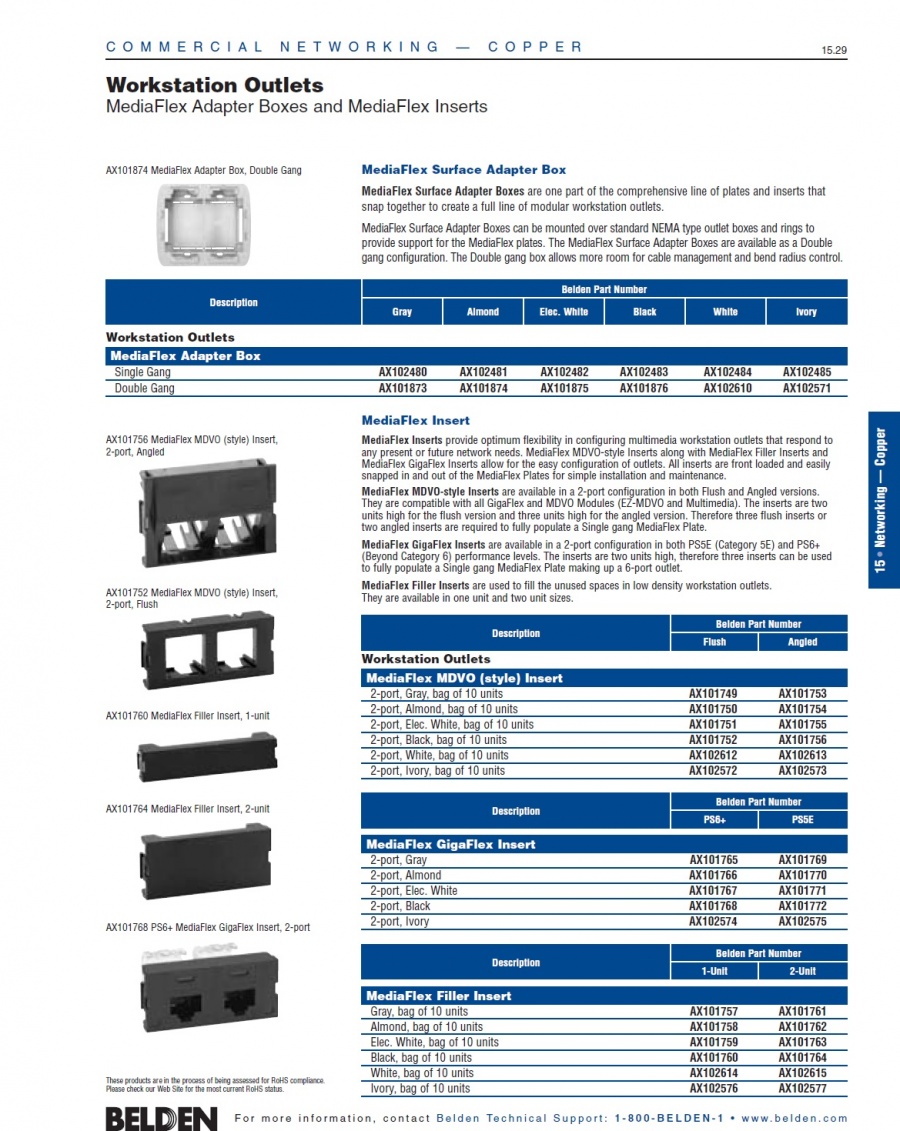

MediaFlex Adapter Boxes and MediaFlex Inserts

MediaFlex Surface Adapter Box
MediaFlex Surface Adapter Boxes are one part of the comprehensive line of plates and inserts that
snap together to create a full line of modular workstation outlets.
　

MediaFlex Surface Adapter Boxes can be mounted over standard NEMA type outlet boxes and rings to
provide support for the MediaFlex plates. The MediaFlex Surface Adapter Boxes are available as a Double
gang configuration. The Double gang box allows more room for cable management and bend radius control.

Workstation Outlets

MediaFlex Insert
MediaFlex Inserts provide optimum flexibility in configuring multimedia workstation outlets that respond to
any present or future network needs. MediaFlex MDVO-style Inserts along with MediaFlex Filler Inserts and
MediaFlex GigaFlex Inserts allow for the easy configuration of outlets. All inserts are front loaded and easily
snapped in and out of the MediaFlex Plates for simple installation and maintenance.
　

MediaFlex MDVO-style Inserts are available in a 2-port configuration in both Flush and Angled versions.
They are compatible with all GigaFlex and MDVO Modules (EZ-MDVO and Multimedia). The inserts are two
units high for the flush version and three units high for the angled version. Therefore three flush inserts or
two angled inserts are required to fully populate a Single gang MediaFlex Plate.
　

MediaFlex GigaFlex Inserts are available in a 2-port configuration in both PS5E (Category 5E) and PS6+
(Beyond Category 6) performance levels. The inserts are two units high, therefore three inserts can be used
to fully populate a Single gang MediaFlex Plate making up a 6-port outlet.
　

MediaFlex Filler Inserts are used to fill the unused spaces in low density workstation outlets.
They are available in one unit and two unit sizes.

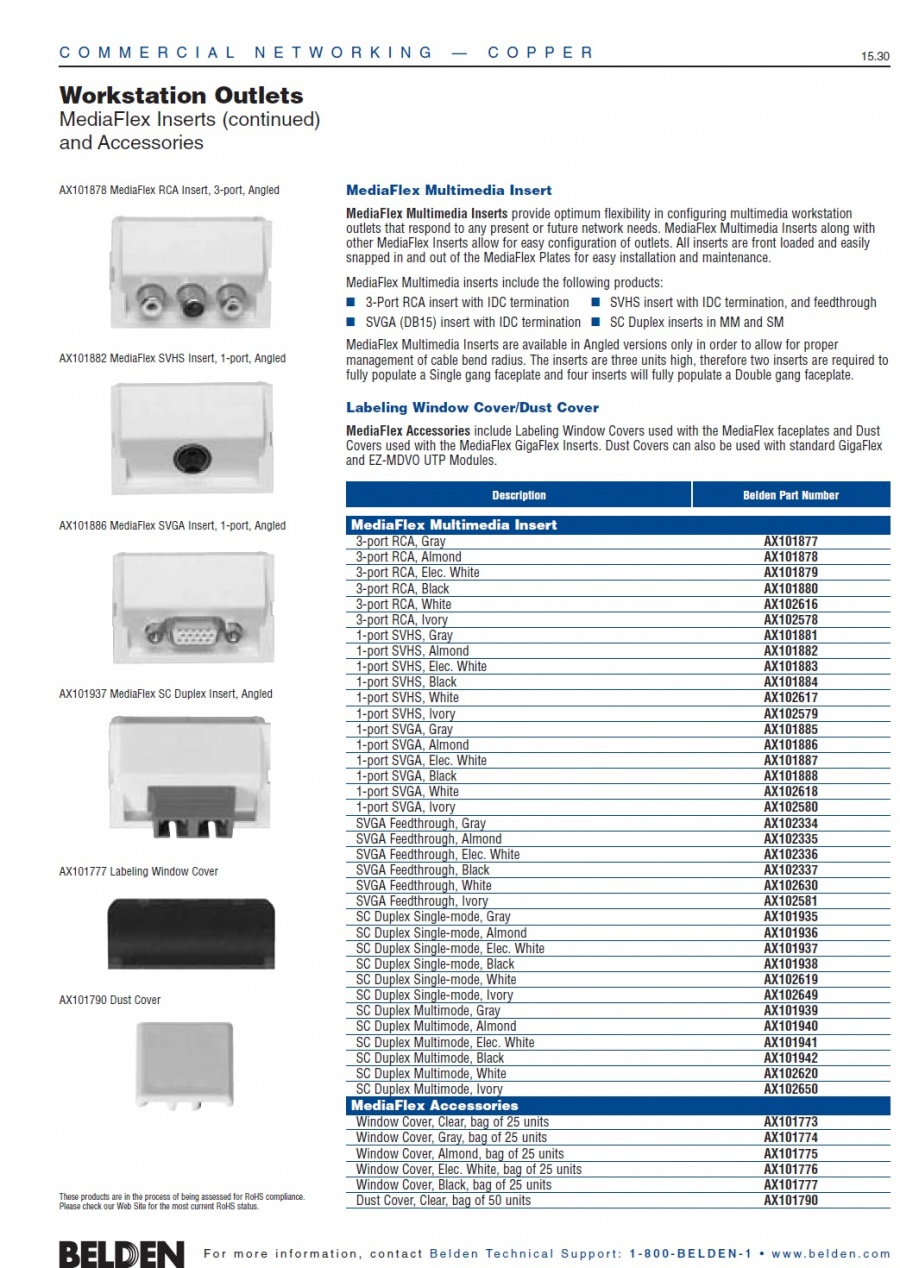

MediaFlex Inserts (continued)
and Accessories

MediaFlex Multimedia Insert
MediaFlex Multimedia Inserts provide optimum flexibility in configuring multimedia workstation
outlets that respond to any present or future network needs. MediaFlex Multimedia Inserts along with
other MediaFlex Inserts allow for easy configuration of outlets. All inserts are front loaded and easily
snapped in and out of the MediaFlex Plates for easy installation and maintenance.
　

MediaFlex Multimedia inserts include the following products:
■ 3-Port RCA insert with IDC termination ■ SVHS insert with IDC termination, and feedthrough
■ SVGA (DB15) insert with IDC termination ■ SC Duplex inserts in MM and SM
MediaFlex Multimedia Inserts are available in Angled versions only in order to allow for proper
management of cable bend radius. The inserts are three units high, therefore two inserts are required to
fully populate a Single gang faceplate and four inserts will fully populate a Double gang faceplate.
　

Labeling Window Cover/Dust Cover
MediaFlex Accessories include Labeling Window Covers used with the MediaFlex faceplates and Dust
Covers used with the MediaFlex GigaFlex Inserts. Dust Covers can also be used with standard GigaFlex
and EZ-MDVO UTP Modules.

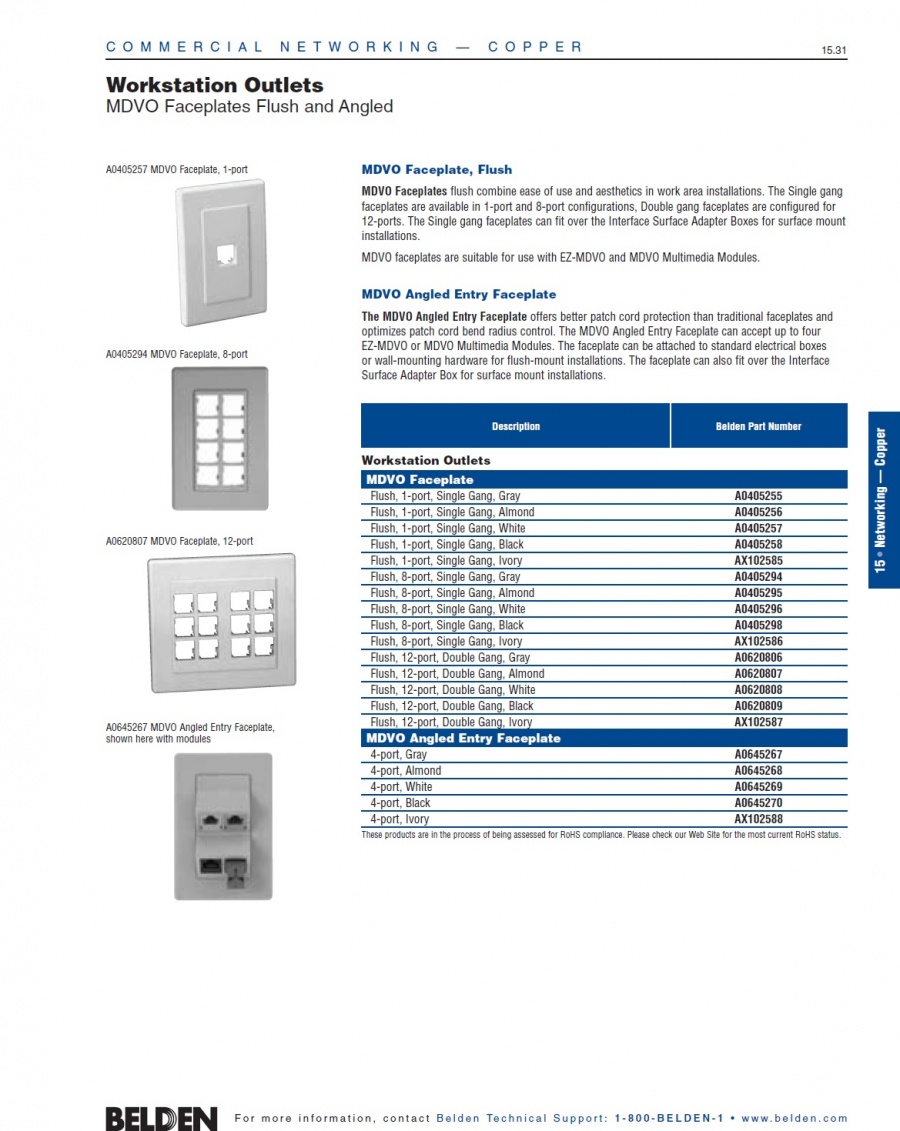

MDVO Faceplates Flush and Angled

MDVO Faceplate, Flush
MDVO Faceplates flush combine ease of use and aesthetics in work area installations. The Single gang
faceplates are available in 1-port and 8-port configurations, Double gang faceplates are configured for
12-ports. The Single gang faceplates can fit over the Interface Surface Adapter Boxes for surface mount
installations.
　

MDVO faceplates are suitable for use with EZ-MDVO and MDVO Multimedia Modules.
　

MDVO Angled Entry Faceplate
The MDVO Angled Entry Faceplate offers better patch cord protection than traditional faceplates and
optimizes patch cord bend radius control. The MDVO Angled Entry Faceplate can accept up to four
EZ-MDVO or MDVO Multimedia Modules. The faceplate can be attached to standard electrical boxes
or wall-mounting hardware for flush-mount installations. The faceplate can also fit over the Interface
Surface Adapter Box for surface mount installations.

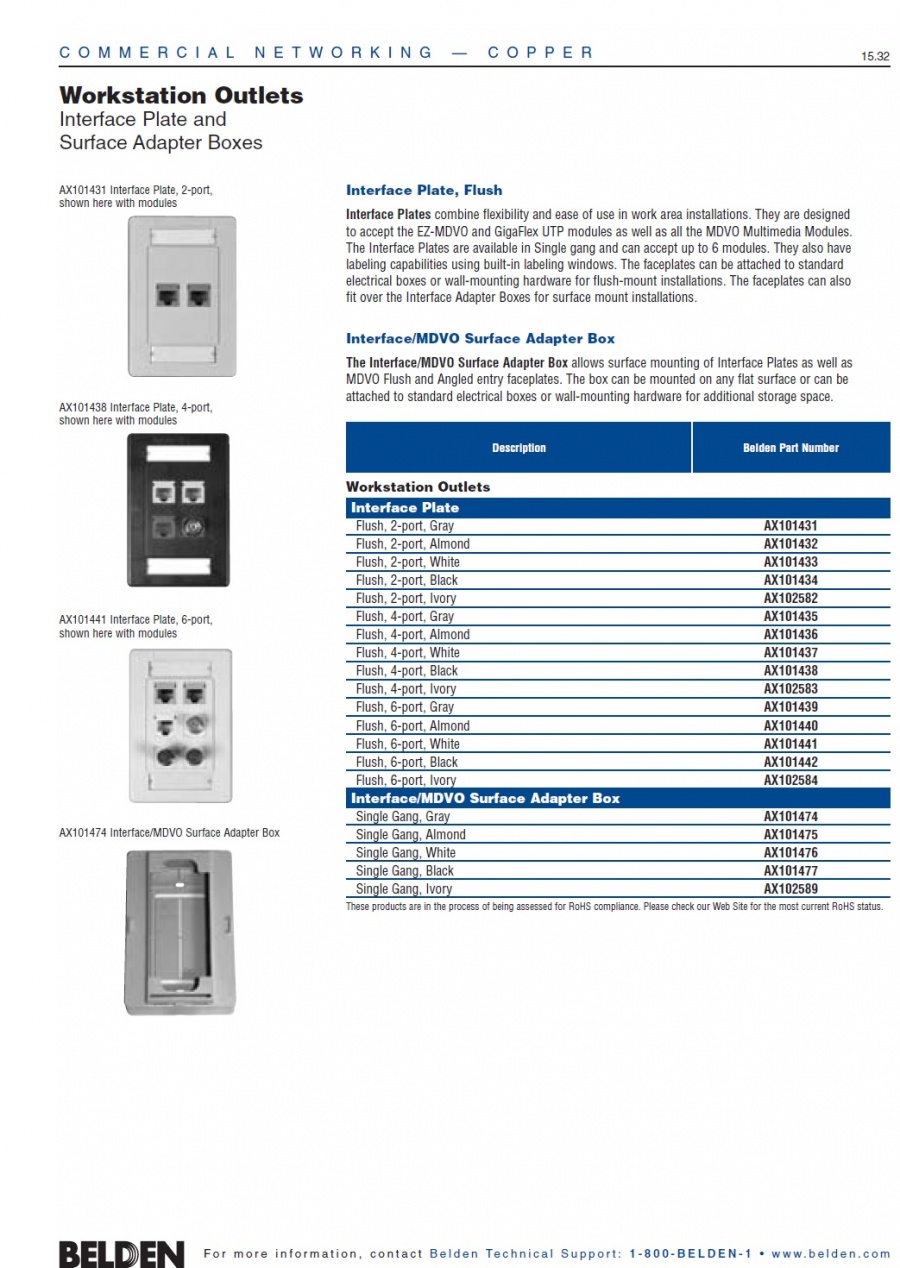

Interface Plate and
Surface Adapter Boxes

Interface Plate, Flush
Interface Plates combine flexibility and ease of use in work area installations. They are designed
to accept the EZ-MDVO and GigaFlex UTP modules as well as all the MDVO Multimedia Modules.
The Interface Plates are available in Single gang and can accept up to 6 modules. They also have
labeling capabilities using built-in labeling windows. The faceplates can be attached to standard
electrical boxes or wall-mounting hardware for flush-mount installations. The faceplates can also
fit over the Interface Adapter Boxes for surface mount installations.
　

Interface/MDVO Surface Adapter Box
The Interface/MDVO Surface Adapter Box allows surface mounting of Interface Plates as well as
MDVO Flush and Angled entry faceplates. The box can be mounted on any flat surface or can be
attached to standard electrical boxes or wall-mounting hardware for additional storage space.
