Workstation Outlets
MDVO Adapters

Belden-A0645271 MDVO Side Entry Box, shown here
             with modules
Belden-AX100311 MDVO 106 Adapter, 4-port,
             shown here with modules
Belden-A0409654 MDVO Deco Adapter,
             shown here with modules
Belden-AX100925 MDVO Modular Furniture Adapter, 4-port,
             shown here with modules

Stainless Steel Faceplate

Belden-AX102007 2-port Stainless Steel SG Faceplate
Keystone-style, shown here with modules
Belden-AX102012 6-port Stainless Steel DG Faceplate
Keystone-style, shown here with modules

European Style Faceplates and Inserts

Belden-AX101372-73 European “6C” Style Faceplates
and AX101377-75-76 European “6C” Inserts
Belden-AX101413-14 French Style Faceplates
Belden-AX101415-16 French Style Faceplates

MDVO Multimedia Outlet Boxes,
Multi-User Outlet Boxes and Multi-User Adapter Strips

Belden-A0643205 MDVO Multimedia Outlet Box,
shown here as terminated

Belden-AX100222 Multi-User Outlet Box,
shown here with modules
Belden-AX100223 MDVO Adapter Strip, 12-port

MDVO Multimedia Modules

Belden-A0407005 MDVO SC Fiber Module
Belden-A0649254 SC Duplex Adapter
Belden-A0407010 MDVO ST Compatible Fiber Module
Belden-AX101467 MDVO MTRJ Fiber Module
Belden-A0406997 MDVO BNC Coaxial Module
Belden-A0406999 MDVO Video F Coaxial Module

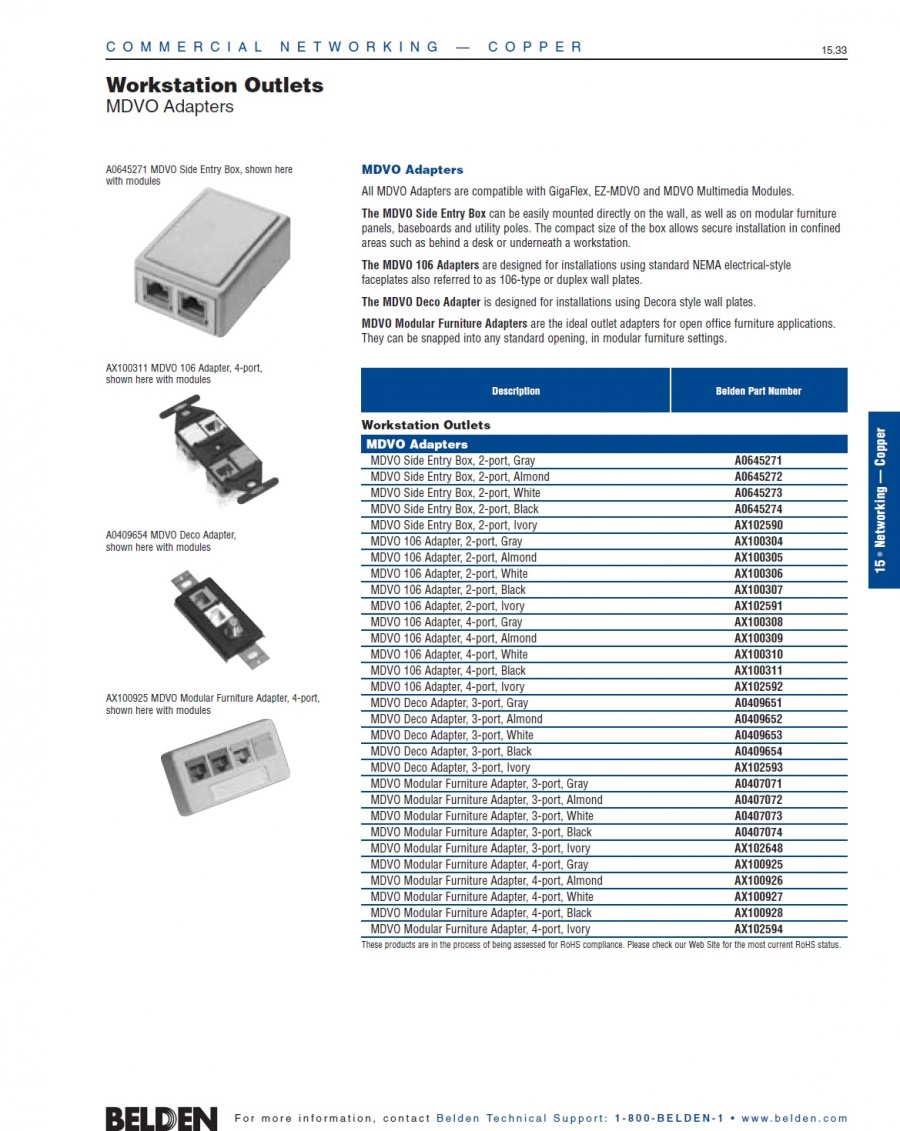

Workstation Outlets

MDVO Adapters
All MDVO Adapters are compatible with GigaFlex, EZ-MDVO and MDVO Multimedia Modules.
　

The MDVO Side Entry Box can be easily mounted directly on the wall, as well as on modular furniture
panels, baseboards and utility poles. The compact size of the box allows secure installation in confined
areas such as behind a desk or underneath a workstation.
　

The MDVO 106 Adapters are designed for installations using standard NEMA electrical-style
faceplates also referred to as 106-type or duplex wall plates.
　

The MDVO Deco Adapter is designed for installations using Decora style wall plates.
　

MDVO Modular Furniture Adapters are the ideal outlet adapters for open office furniture applications.
They can be snapped into any standard opening, in modular furniture settings.

Stainless Steel Faceplate
Belden’s Stainless Steel Faceplates are ideal for labs, sanitary, medical,
and harsh environment type applications.
　

They are designed to accept Keystone-style modules. The Stainless Steel Faceplates are
available as Single Gang and Double Gang, and can accept up to 12 modules. A studded version
designed to support a wall phone is also offered. Stainless Steel Faceplates can be attached
to standard NEMA type outlet boxes or wall-mounting hardware for flush-mount installation.
Stainless Steel Faceplates are cULus Listed.

European “6C” Style Faceplate
The European “6C” Style faceplates and Inserts are designed to accept the GigaFlex
and EZ-MDVO UTP Modules.
They include a shutter to protect the module against dust and other contaminants.
　

French Style Faceplate
The French Style Faceplates are designed to accept the EZ-MDVO and GigaFlex UTP modules as well as
all the MDVO multimedia modules. The faceplates can be attached to standard 45 mm x 45 mm boxes
or mounting hardware for flush-mount installations.

MDVO Multimedia Outlet Boxes,
Multi-User Outlet Boxes and Multi-User Adapter Strips
MDVO Multimedia Outlet Box
The MDVO Multimedia Outlet Box brings unique versatility for multimedia work area installations.
The box design provides cable management and helps maintain cable bend radius. The outlet box’s
low profile design and side-entry offers better protection for patch cords. The outlet box can accept up
to six EZ-MDVO, GigaFlex or MDVO Multimedia Modules or three SC Duplex adapters.
The MDVO Multimedia Outlet Box can be mounted directly on the wall or attached to standard
electrical boxes. Included with the MDVO Multimedia box are three SC Duplex Mounting bezels and
three MDVO Adapters.
　

Multi-User Outlet Box
The Multi-User Outlet Box is a versatile box that can be used in many different applications. The
outlet box can accommodate up to 24 connections of any type, UTP, fiber or coax. The outlet box is
ideal for use as a multi-user telecommunications assembly, or simply as a high-density multimedia
telecommunications outlet. The Multi-User Outlet Box can also be used as a wall mounted patch panel
in confined areas, such as shallow rooms and cabinets.
　

Multi-User Adapter Strips
The Multi-User Outlet Box design allows for mixed media installations with a choice of connection
strips. The box can accept either one or two 12-port MDVO Adapter Strips, PS5E HD Connector
Module Strips (BIX or 110), or a combination of both for a maximum of 24 connections.

MDVO Multimedia Modules

MDVO Multimedia Modules address audio/video and fiber applications. Fiber modules are available for
LC Duplex, SC Simplex, ST Compatible multimode and MT-RJ multimode & single-mode connections.
The SC Duplex Adapter is a fiber adapter sleeve with flanges that mounts into the SC Duplex mounting
bezel (included in the MDVO Multimedia Outlet box). Audio/video modules are available for SVHS, RCA,
BNC and Video F connections
