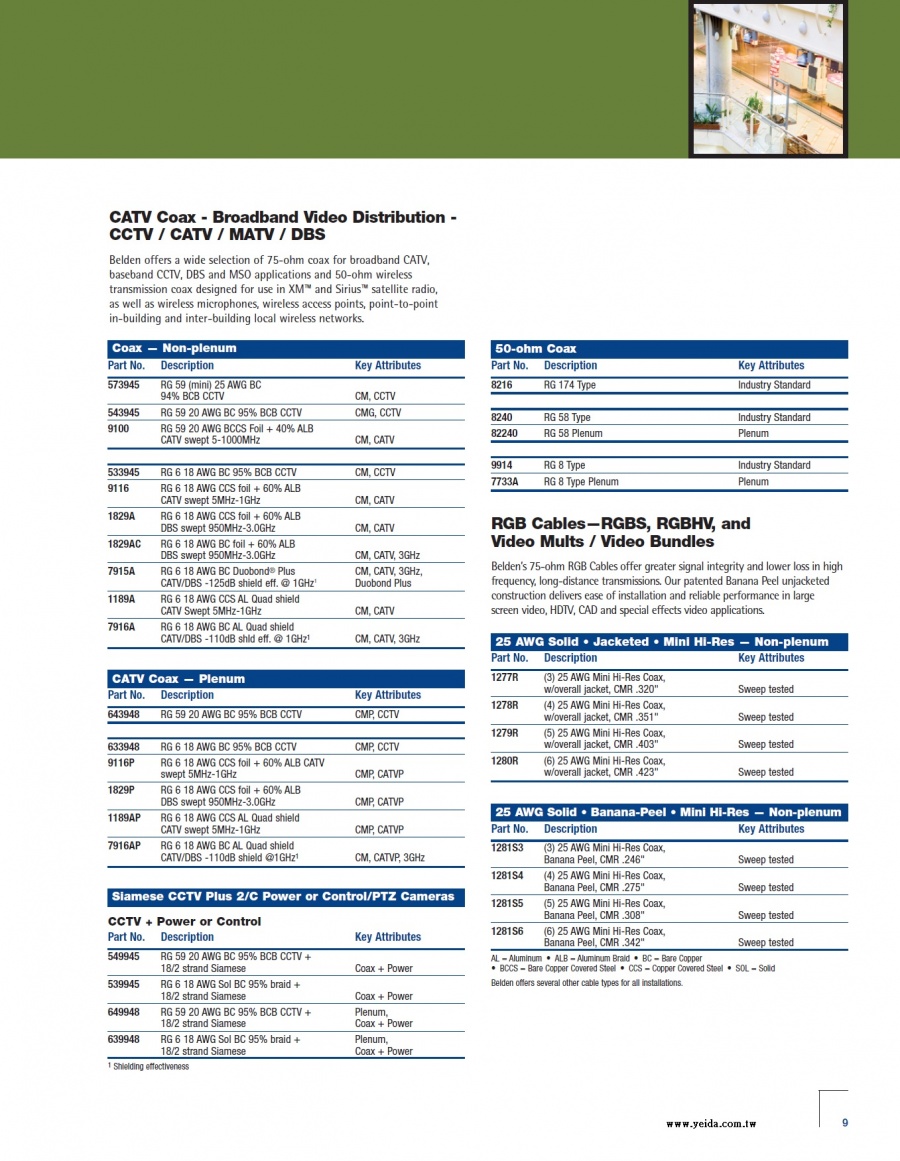

CATV Coax - Broadband Video Distribution -
CCTV / CATV / MATV / DBS

Belden offers a wide selection of 75-ohm coax for broadband CATV,
baseband CCTV, DBS and MSO applications and 50-ohm wireless
transmission coax designed for use in XM™ and Sirius™ satellite radio,
as well as wireless microphones, wireless access points, point-to-point
in-building and inter-building local wireless networks.

Coax — Non-plenum
Belden Part No. Description
573945 RG 59 (mini) 25 AWG BC
94% BCB CCTV CM, CCTV
543945 RG 59 20 AWG BC 95% BCB CCTV CMG, CCTV
9100 RG 59 20 AWG BCCS Foil + 40% ALB
CATV swept 5-1000MHz CM, CATV
533945 RG 6 18 AWG BC 95% BCB CCTV CM, CCTV
9116 RG 6 18 AWG CCS foil + 60% ALB
CATV swept 5MHz-1GHz CM, CATV
1829A RG 6 18 AWG CCS foil + 60% ALB
DBS swept 950MHz-3.0GHz CM, CATV
1829AC RG 6 18 AWG BC foil + 60% ALB
DBS swept 950MHz-3.0GHz CM, CATV, 3GHz
7915A RG 6 18 AWG BC Duobond® Plus CM, CATV, 3GHz,
CATV/DBS -125dB shield eff. @ 1GHz1 Duobond Plus
1189A RG 6 18 AWG CCS AL Quad shield
CATV Swept 5MHz-1GHz CM, CATV
7916A RG 6 18 AWG BC AL Quad shield
CATV/DBS -110dB shld eff. @ 1GHz1 CM, CATV, 3GHz
　

CATV Coax — Plenum
Belden Part No. Description
643948 RG 59 20 AWG BC 95% BCB CCTV CMP, CCTV
633948 RG 6 18 AWG BC 95% BCB CCTV CMP, CCTV
9116P RG 6 18 AWG CCS foil + 60% ALB CATV
swept 5MHz-1GHz CMP, CATVP
1829P RG 6 18 AWG CCS foil + 60% ALB
DBS swept 950MHz-3.0GHz CMP, CATVP
1189AP RG 6 18 AWG CCS AL Quad shield
CATV swept 5MHz-1GHz CMP, CATVP
7916AP RG 6 18 AWG BC AL Quad shield
CATV/DBS -110dB shield @1GHz1 CM, CATVP, 3GHz
Siamese CCTV Plus 2/C Power or Control/PTZ Cameras
　

CCTV + Power or Control
Belden Part No. Description
549945 RG 59 20 AWG BC 95% BCB CCTV +
18/2 strand Siamese Coax + Power
539945 RG 6 18 AWG Sol BC 95% braid +
18/2 strand Siamese Coax + Power
649948 RG 59 20 AWG BC 95% BCB CCTV + Plenum,
18/2 strand Siamese Coax + Power
639948 RG 6 18 AWG Sol BC 95% braid + Plenum,
18/2 strand Siamese Coax + Power

50-ohm Coax
Belden Part No. Description
8216 RG 174 Type Industry Standard
8240 RG 58 Type Industry Standard
82240 RG 58 Plenum Plenum
9914 RG 8 Type Industry Standard
7733A RG 8 Type Plenum Plenum
