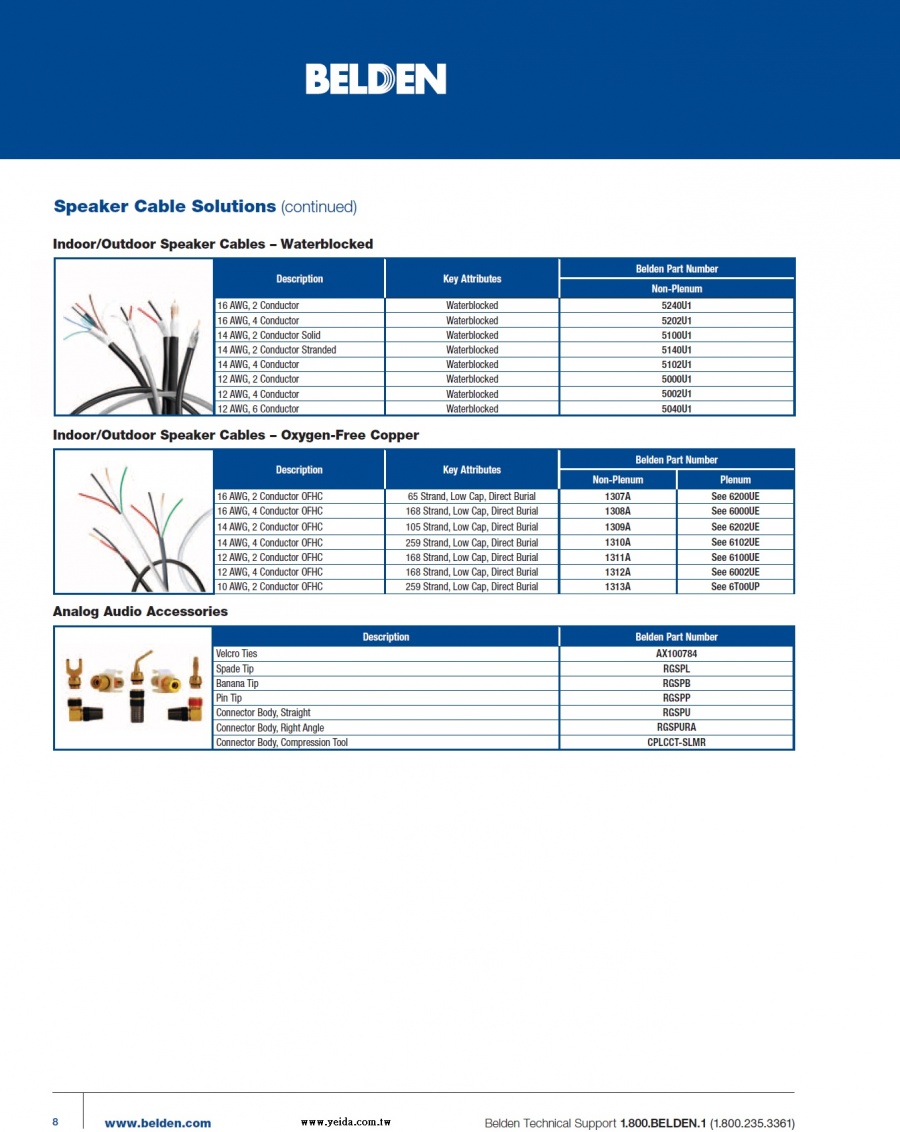

Indoor/Outdoor Speaker Cables – Waterblocked

Indoor/Outdoor Speaker Cables – Oxygen-Free Copper

Analog Audio Accessories

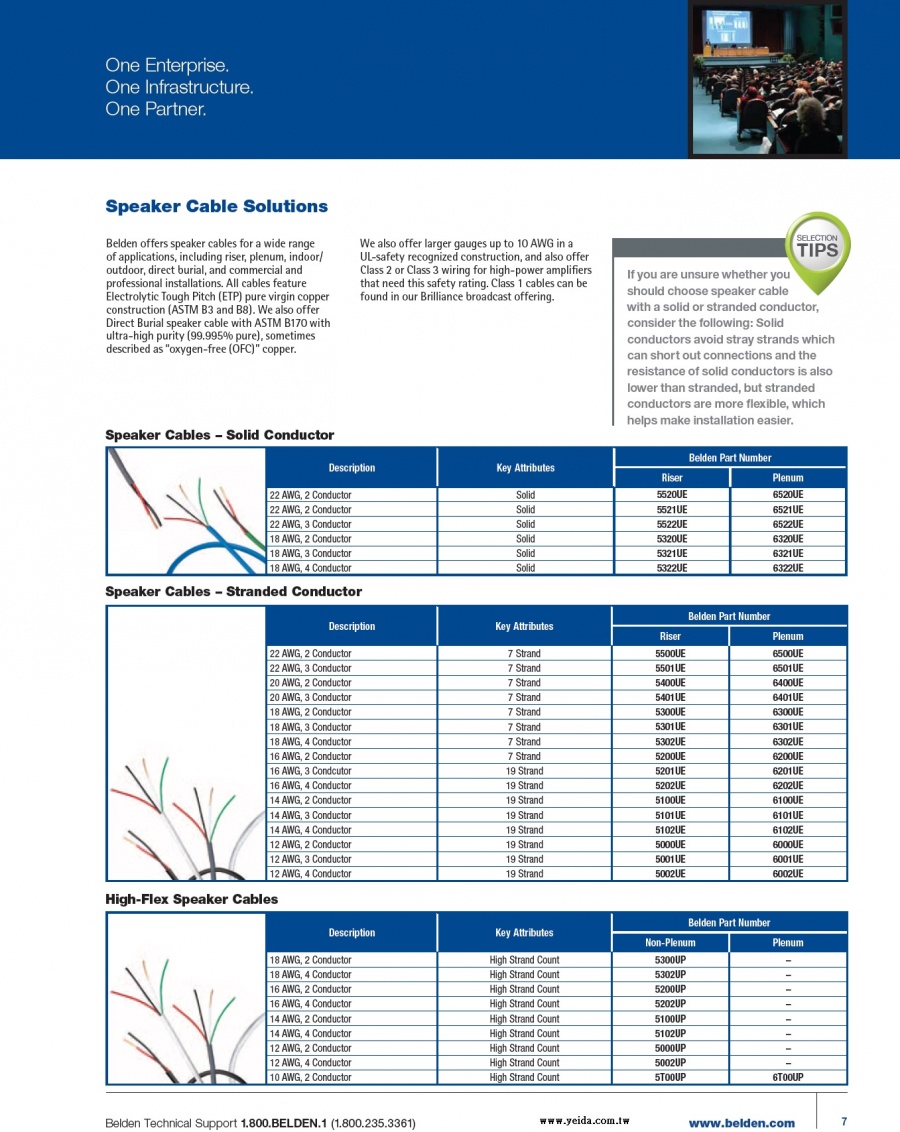

Speaker Cable Solutions

Belden offers speaker cables for a wide range
of applications, including riser, plenum, indoor/
outdoor, direct burial, and commercial and
professional installations. All cables feature
Electrolytic Tough Pitch (ETP) pure virgin copper
construction (ASTM B3 and B8). We also offer
Direct Burial speaker cable with ASTM B170 with
ultra-high purity (99.995% pure), sometimes
described as “oxygen-free (OFC)” copper.
　

We also offer larger gauges up to 10 AWG in a
UL-safety recognized construction, and also offer
Class 2 or Class 3 wiring for high-power amplifiers
that need this safety rating. Class 1 cables can be
found in our Brilliance broadcast offering.

喇叭線解決方案

百通提供廣泛的揚聲器電纜
的應用程序，包括立管，氣室，室內/
室外，直接埋葬，商業和
專業安裝。所有電纜功能
的電解韌（ETP）貞潔的童女銅
建設（ASTM B3和B8）。我們還提供
直埋式揚聲器電纜與ASTM B170
超高純度（純度99.995％），有時
形容為“無氧銅（OFC）”銅。

我們還提供了較大的壓力表在10 AWG
UL安全認可的建設，而且還可以提供
第2類或3類佈線高功率放大器
需要這個安全評級。第1類電纜可以
發現在我們的的華晨廣播產品。

If you are unsure whether you
should choose speaker cable
with a solid or stranded conductor,
consider the following: Solid
conductors avoid stray strands which
can short out connections and the
resistance of solid conductors is also
lower than stranded, but stranded
conductors are more flexible, which
helps make installation easier.

如果你不確定是否
應選擇揚聲器電纜
用實心或絞合導體，
考慮以下幾點：固體
導體避免雜散股
短路連接和
也是實心導體電阻
低於擱淺，但滯留
導體是更靈活，這
有助於使安裝更容易。

2/C Speaker Cables — Non-plenum
Belden Part No. Description
5500UE  2/C 22 AWG 7 strand BC, PP Insulation, PVC Jacket, CMR
bekden8442 2/C 22 AWG 7 strand TC, PVC Insulation and Jacket,
CMG, Heavy Duty
9151  2/C 22 AWG 7 strand, open twist style, (1) tinned, (1) bare, VW-1
5400UE 2/C 20 AWG 7 strand BC, PP Insulation, PVC Jacket, CMR
8205 2/C 20 AWG 7 strand TC, PVC Insulation and Jacket,
CMG, Heavy Duty
8649 2/C 20 AWG 7 strand, Zip style, (1) tinned, (1) bare, VW-1
5300UE 2/C 18 AWG 7 strand BC, PP Insulation, PVC Jacket, CMR
8461  2/C 18 AWG 7 strand TC, PVC Insulation and Jacket,
CMG, Heavy Duty
8460  2/C 18 AWG 7 strand, open twist style, Black,White, VW-1
5200UE  2/C 16 AWG 7 strand BC, PP Insulation, PVC Jacket, CMR
5200UP  2/C 16 AWG 65 strand BC, TP Insulation, PVC Jacket, CM, Flex
1307A  2/C 16 AWG 65 strand OFHC, Low Cap, Direct Burial,
PO/PVC Jacket, CMR
8471  2/C 16 AWG 7 strand TC, PVC Insulation and Jacket,
CMG, Heavy Duty
8470  2/C 16 AWG 19 strand, open twist style, Black,White, VW-1
9497 2/C 16 AWG 19 strand, open twist style, Black, Orange, VW-1
5100UE 2/C 14 AWG 7 strand BC, PP Insulation, PVC Jacket, CMR
5100UP 2/C 14 AWG 42 strand BC, TP Insulation, PVC Jacket, CL3, Flex
1309A  2/C 14 AWG 105 strand OFC, Low Cap, Direct Burial,
PO/PVC Jacket, CMR
8473  2/C 14 AWG 7 strand TC, PVC Insulation and Jacket, CL3, Heavy Duty
5000UE 2/C 12 AWG 19 strand BC, PP Insulation, PVC Jacket, CMR
5000UP 2/C 12 AWG 65 strand, BC, TP Insulation, PVC Jacket, CL3, Flex
1311A  2/C 12 AWG 168 strand OFHC, Low Cap, Direct Burial,
PO/PVC Jacket, CMR
8477  2/C 12 AWG 7 strand TC, PVC Insulation and Jacket,
CL3R, Heavy Duty
5T00UP 2/C 10 AWG 65 strand BC, TP Insulation, PVC Jacket, CL2
1313A  2/C 10 AWG 259 strand OFHC, Low Cap, Direct Burial,
PO/PVC Jacket, CMR
　

2/C Speaker Cables — Plenum
Belden Part No. Description
1863A  2/C 18 AWG 19 strand BC, LS-PVC Insulation, open twist, CL2P
6300UE  2/C 18 AWG 7 strand BC, LS-PVC Insulation and Jacket, CMP
1862A 2/C 16 AWG 19 strand BC, LS-PVC Insulation, open twist, CL2P
6200UE 2/C 16 AWG 19 strand BC, LS-PVC Insulation and Jacket, CMP
1861A  2/C 14 AWG 19 strand BC, LS-PVC Insulation, open twist, CL2P
6100UE  2/C 14 AWG 19 strand BC, LS-PVC Insulation and Jacket, CL2P
1860A  2/C 12 AWG 19 strand BC, LS-PVC Insulation, open twist, CL2P
6000UE 2/C 12 AWG 19 strand BC, LS-PVC Insulation and Jacket, CL2P
6T00UP  2/C 10 AWG 65 strand BC, LS-PVC Insulation and Jacket, CL2P
　

4/C Speaker Cables — Non-plenum
Belden Part No. Description
5202UE  4/C 16 AWG 7 strand BC, PP Insulation, PVC Jacket, CMR
5202UP 4/C 16 AWG 65 strand BC, TP Insulation, PVC Jacket, CM Flex
1308A  4/C 16 AWG 65 strand OFHC, Low Cap, Direct Burial,
PO/PVC Jacket, CMR
5102UE  4/C 14 AWG 7 strand BC, PP Insulation, PVC Jacket, CMR
5102UP  4/C 14 AWG 42 strand BC, TP Insulation, PVC Jacket, CL3, Flex
1310A 4/C 14 AWG 105 strand OFHC, Low Cap, Direct Burial,
PO/PVC Jacket, CMR
5002UE  4/C 12 AWG 19 strand BC, PP Insulation, PVC Jacket, CMR
5202UP  4/C 12 AWG 42 strand BC, TP Insulation, PVC Jacket, CL3, Flex
1312A  4/C 12 AWG 168 strand OFHC, Low Cap, Direct Burial,
PO/PVC Jacket, CMR
　

4/C Speaker Cables — Plenum
Belden Part No. Description
6302UE  4/C 18 AWG 7 strand BC, LS-PVC Insulation and Jacket, CMP
6202UE  4/C 16 AWG 19 strand BC, LS-PVC Insulation and Jacket, CMP
6102UE  4/C 14 AWG 19 strand BC, LS-PVC Insulation and Jacket, CL2P
6002UE  4/C 12 AWG 19 strand BC, LS-PVC Insulation and Jacket, CL2P
