商品編號: Belden-Audio
Belden- Audio Cables 高性能,低電容模擬和數位音頻結構音頻電纜
Audio Cables |
2/C Shielded Audio & Control Cables - Non-plenum |
In Part |
Description |
Key Attributes |
5660FT |
1 STP 24 AWG solid TC, Low Cap FPE, FS + TC DW PVC, CMR |
100-ohm Low Cap |
1883A |
1 STP 24 AWG 31 pF / ft, FS, 24 AWG DW PP / PVC, CMR |
Available in 8 colors |
5500FE |
1 STP 22 AWG BC, FS + TC DW TP/PVC, CMR |
Security grade |
1503A |
1 STP 22 AWG TC, 53 pF/ft, FS, 24 AWG TC DW PVC/PVC, CM |
PVC Insulation, flexible jacket |
1266A |
1 STP 22 AWG 30 pF / ft, FS, 24 AWG DW PP / PVC, CM |
Flexible and CM |
9451 |
1 STP 22 AWG 35 pF / ft, FS, 22 AWG DW PP / SR-PVC, CMR |
EZ foil strips with jacket |
8451 |
1 STP 22 AWG 34 pF / ft, FS, 22 AWG DW paper, PP / SR-PVC, CMR |
Paper; easy jacket strip |
8761 |
1 STP 22 AWG 24 pF / ft, FS, 22 AWG DW PE / PVC, CM |
PE Insulation, Low Cap |
9461 |
1 STP 22 AWG 24 pF / ft, FS, 22 AWG DW PE / PVC, CM |
PE Insulation, Low Cap |
5540FT |
1 STP 22 AWG str. TC, Low Cap FPE, FS + TC DW PVC, CMR |
Brown jacket, 100-ohm Low Cap |
5520FE |
1 STP 22 AWG solid BC FS, 24 AWG DW PP / PVC, CMR |
Solid conductors |
8450 |
1 STP 22 AWG solid TC 40 pF/ft, FS, 22 AWG solid DW PP/PVC, CM |
Solid conductors |
5400FE |
1 STP 20 AWG BC, 56 pF/ft, FS + TC DW TP/PVC, CMR |
Security grade |
8762 |
1 STP 20 AWG 27 pF / ft, FS, 20 AWG DW PE / PVC, CM |
PE insulation |
5300FE |
1 STP 18 AWG BC, 65 pF/ft, FS+ TC DW TP/PVC, CMR |
Security grade |
5340FT |
1 STP 18 AWG str._ TC, Low Cap FPE, FS + TC DW PVC, CMR |
100-ohm Low Cap FFEP |
8760 |
1 STP 18 AWG 30 pF / ft, FS, 20 AWG DW PE / PVC, CM |
Low Capacitance, PE Insulation, Top seller |
5200FE |
1 STP 16 AWG BC, 76 pF/ft, FS + TC DW TP/PVC, CMR |
Security grade |
8719 |
1 STP 16 AWG 23 pF / ft, FS, 18 AWG DW PE / PVC, CM / CL2 |
Low Capacitance, PE Insulation |
5100FE |
1 STP 14 AWG BC, 83 pF/ft, FS + TC DW TP/PVC, CL3R |
Security grade, CL3R and FPLR |
8720 |
1 STP 14 AWG 24 pF / ft, FS, 16 AWG DW PE / PVC, CL2 |
Low Capacitance, PE Insulation |
5000FE |
1 STP 12 AWG BC, 83 pF/ft, FS + TC DW TP/PVC, CL3R |
Security grade, CL3R and FPLR |
8718 |
1 STP 12 AWG 25 pF / ft, FS, 14 AWG DW PE / PVC, CL2 |
Low Capacitance, PE Insulation |
|
|
2/C Shielded Audio & Control Cables - Plenum |
In Part |
Description |
Key Attributes |
6660FT |
1 STP 24AWG solid TC,Low Cap FFEP, FS + TC DW LS-PVC, CMP |
BrownJacket, 100-ohm Low Cap FFEP |
6500FE |
1 STP 22 AWG BC, 55 pF/ft, FS + TC DW LSPVC/LSPVC, CMP |
Security grade, LS-PVC Insulation |
6540FT |
1STP 22 AWG str TC,LowCap FFEP, FS + TC DW LS-PVC,CMP |
Brown jacket, 100-ohm Low Cap FFEP |
6500FC |
1 STP 22 AWG BC FEP Insulation, FS + DW FEP Insulation, CMP |
Bare Copper; 45pF/ft. |
9451P |
1 STP 22 AWG 35 pF/ft, FS + TC DW, FEP Insulation, CMP |
Foil strips with jacket, colors |
82761 |
1 STP 22 AWG 35 pF/ft, FS + TC DW, FEP Insulation, CMP |
Easy jacket strip,Heavy-duty, Low Capacitance |
87761 |
1 STP 22 AWG 35 pF/ft, FS + TC DW, FEP Insulation, red PVDF Jacket, CMP |
Plenum-rated use,150¼C |
88761 |
1 STP 22 AWG 35 pF/ft, FS + TC DW, FEP Insulation, red FEP Jacket, CMP |
Plenum-rated, 200Â ¼ C |
6400FE |
1 STP 20 AWG BC, 56 pF / ft, FS + TC DW, CMP |
Security grade LS-PVC Insulation |
6400FC |
1 STP 20 AWG BC, FEP insulation FS + TC DW, CMP |
FEP Insulation |
6300FE |
1STP 18AWG BC, 70 pF / ft, FS + TC DW, CMP |
Security grade LS-PVC Insulation |
6340FT |
1 STP 18 AWG str. TC, LowCap FFEP, FS + TC DW LS-PVC, CMP |
100-ohm Low Cap FFEP |
6300FC |
1 STP 18 AWG BC FEP Insulation, FS + DW FEP Insulation, CMP |
FEP Insulation |
82760 |
1 STP 18 AWG TC 51 pF/ft, FS ,20 AWG TC DW, FEP Insulation, CMP |
Tinned Copper; Mid Cap |
6200FE |
1 STP 16 AWG BC, 81.5 pF / ft, FS, 18 AWG TC DW, CMP |
LS-PVC Insulation |
6100FE |
1 STP 14 AWG BC, 85 pF / ft, FS, 16 AWG TC DW CL 2P |
LS-PVC Insulation |
6000FE |
1 STP 12 AWG BC, 97 pF / ft, FS, 16 AWG TC DW CL2P |
LS-PVC Insulation |
|
|
2/C Shielded Audio & Control Cables - Halogen-free |
In Part |
Description |
Key Attributes |
BE46273 |
1 STP 26AWG stranded TC,FPE, BS PA |
110-ohm, braid shielded pairs, halogen-free, small size |
BE46202 |
1 STP 26AWG stranded TC,FPE, BS FRNC |
110-ohm, braid shielded pairs, halogen-free, round, thick outer jacket |
BE46959 |
1 STP 26AWG stranded TC,FPE, BS FRNC |
110-ohm, braid shielded pairs, halogen-free, round, thick outer jacket, IEC 332-3C |
1508ENH |
1 STP 24AWG stranded TC,PO, FS + 24 AWG TC DW FRNC |
Beldfoil¨ (bonded-to-the-jacket) shielded pairs, FRNC |
|
|
Audio & Control Dual Pair / 2 Shielded Pairs - Non-plenum |
In Part |
Description |
|
5661PT |
2 TP 24 AWG sol, FPE Insulation, Low Cap 2pr / O/A shield, PVC jacket,CMR |
100-ohm, Low Cap, Unshielded pairs, OAS |
1510C |
2 STP 24 AWG 31 pF / ftFS, Jacketed Pairs, PO / PVC / PVC jacket, CM |
Individual pair jackets, Audio Snake |
8723 |
2 STP 22 AWG ,ea. Pr FS, shared 24 AWG DW, PP/PVC jacket, CM |
Compact design |
9451D |
2 STP 22 AWG, Individual jackets,Dual 9451,Zip cord design, CMR |
Siamese,PP Insulation, 22 AWG DWs |
1504A |
2 STP 22 AWG, Individual jackets,Dual 1503A, Zip cord design, CM |
Siamese, PVC Insulation, 24 AWG DWs, Flex |
5541FE |
2 TP 22 AWG, PVC Insulation/pairs cabled,O/A shield,PVC jacket, CMR |
Unshielded pairs, OAS |
5541PT |
2 TP 22 AWG str, FPE Insulation,Low Cap 2pr / O/A shield, PVC jacket, CMR |
100-ohm, Low Cap, Unshielded pairs, OAS |
1815R |
2 STP 22 AWG 31 pF / ft, FS, Jacketed Pairs PO / PVC / PVC jacket, CMR |
Individual pair jackets, riser-rated; snake |
5341PT |
2 TP 18 AWG str,FPE Insulation, Low Cap 2pr / O/A shield, PVC jacket, CMR |
100-ohm, Low Cap, Unshielded pairs, OAS |
|
|
Analog Audio & Control Dual Pair / 2 Shielded Pairs - Plenum |
In Part |
Description |
Key Attributes |
6661PT |
2 TP 24 AWG sol, FFEP Insulation,Low Cap 2pr / O/A shield, PVC jacket, CMP |
100-ohm, Low Cap, Unshielded pairs, OAS |
6541FE |
2 TP 22 AWG,LSPVC Insulation/pairs cabled, O/A shield,LSPVC jacket, CMP |
Unshielded pairs, OAS |
6541PT |
2 TP 22 AWG str, FFEP Insulation,Low Cap 2pr / O/A shield, PVC jacket, CMP |
100-ohm, Low Cap, Unshielded pairs, OAS |
6541PA |
2 STP 22 AWG 27.5 pF/ft, FS, FEP Insulation, CMP |
Shielded pairs, FEP Insulation |
1325A |
2 STP 22 AWG Low Cap FS, LS-PVC Insulation, shared DW, CMP |
Shielded pairs, colors |
82723 |
2 STP 22 AWG 35 pF/ft, FS, FEP Insulation, shared DW, CMP |
Shielded pairs, FEP Insulation |
87723 |
2 STP 22 AWG 35 pF/ft, FS, FEP Insulation, red PVDF jacket, CMP |
Plenum-rated, 150Â ¼ C |
88723 |
2 STP 22 AWG 35 pF/ft, FS, FEP Insulation, red FEP jacket, CMP |
Plenum-rated, 200Â ¼ C |
9451DP |
2 STP 22 AWG, Individual jackets, Dual 9451P, Zip cord design, CMP |
Siamese, FEP Insulation, 22 AWG DWs |
6341PT |
2 TP 18 AWG str, FFEP Insulation, Low Cap 2 pr / O/A shield,PVC jacket, CMP |
18 AWG Low Cap, 100-ohm Unshielded pairs, OAS |
6341PC |
2 STP 18 AWG FEP Insulation, LS-PVC jacket, CMP |
LS-PVC jacket |
|
|
Analog Audio & Control Dual Pair / 2 Shielded Pairs - Halogen-free |
In Part |
Description |
Key Attributes |
1509ENH |
2 STP 24AWG stranded TC,PO, FS + 24 AWG TC DW FRNC |
Beldfoil¨ (bonded-to-the-jacket) shielded pairs, FRNC |
|
|

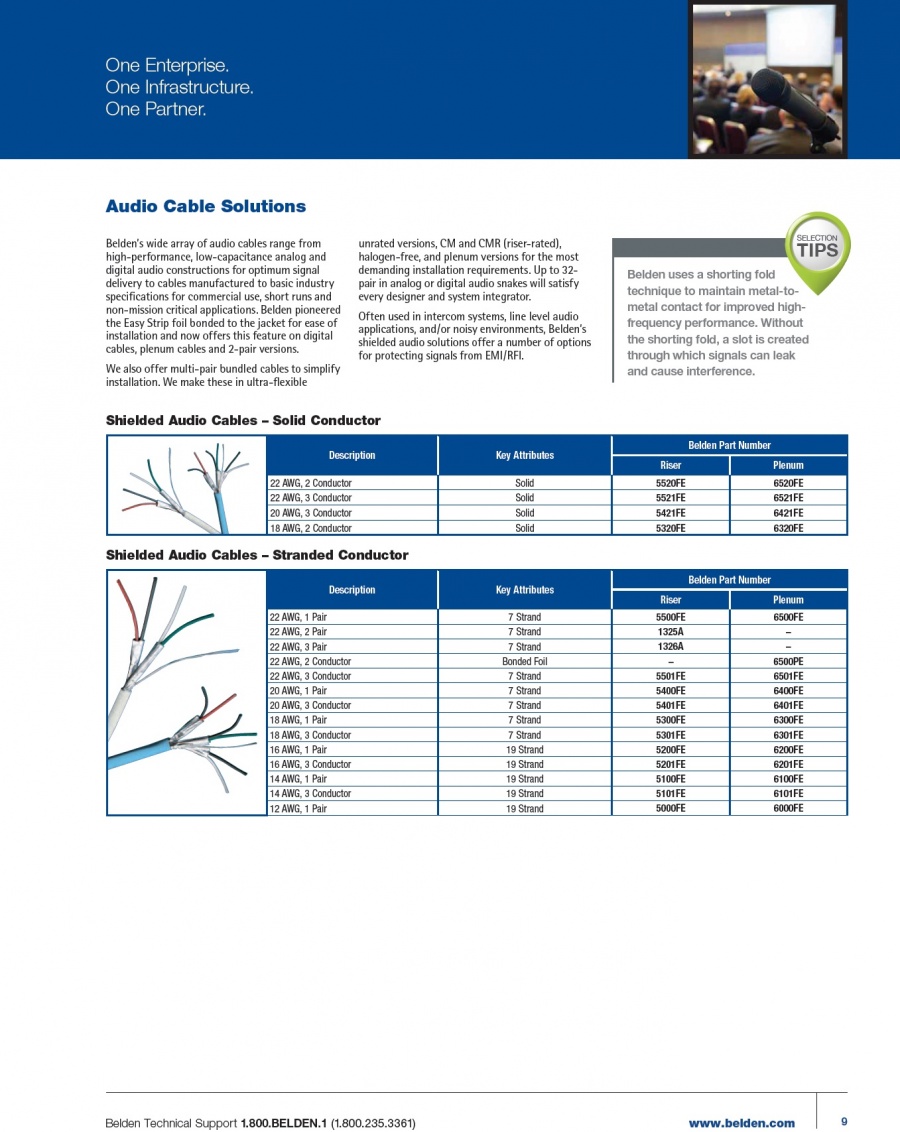

Audio Cables
Belden’s wide array of audio cables range from high-performance, low capacitance analog and digital audio constructions for optimum signal delivery, to cables manufactured to basic industry specifications for commercial use, short runs and non-mission critical applications. Belden pioneered the Easy Strip foil bonded to the jacket for ease of installation and now offers this feature on digital cables, plenum cables and 2-pair versions. Our extensive line of precision coaxial cables are ideal for digital audio on coax (AES3-id) applications and offer dramatically extended distance for large-venue long-run applications.
We also offer multipair (and multi-coax) bundled cables to simplify installation. We make these in ultra-flexible unrated versions, CM and CMR (riser-rated), halogen-free and plenum versions, for the most demanding installation requirements. Up to 32-pair in digital audio snakes, up to 52-pair in analog audio snakes, and up to 12-coaxes in bundled coaxial cables, will satisfy every designer and system integrator.
企業的A / V系統的範圍可以從相對簡單到高度複雜的,綜合的寬帶多媒體網絡。只有百通可以提供廣泛的創新產品,以滿足這些不同的需求。
幾十年來,百通華晨已經佈線解決方案為專業廣播和娛樂行業的頭號選擇,其中包括美國全國廣播公司(NBC)和幾乎所有其他主要的廣播網絡,在系統停機時間根本不是一種選擇。在數字化升級,目前已接近完成,在美國,幾乎90%的所有使用的電纜是百通。
在電影業,以及其他文藝的應用,如盧卡斯電影公司,我們帶來同樣的無與倫比的一致性,質量,可靠性和性能。所有這些客戶遷移,一些比別人快,收斂統一的數據網絡音頻,視頻和控制應用。今天的企業市場必須了解和利用各種各樣的電線電纜產品,如下面的音頻,視頻和網絡佈線解決方案。
喇叭線
百通提供了廣泛的應用,包括全會,室內/室外,無鹵素,直埋,和商業及專業安裝音箱電纜。所有電纜採用電解韌(ETP)貞潔的童女銅建設(ASTM B3和B8)。我們還提供超高純度(純度99.995%),有時被描述為“無氧銅(OFC)”銅ASTM B170直埋揚聲器電纜。
我們還提供了較大的計至10 AWG在確認UL安全建設,在行業中獨樹一幟,還提供了2類或3類佈線需要這個安全評級的高功率放大器。
音頻電纜
Belden的音頻電纜廣泛的範圍從高性能,低電容模擬和數字音頻結構以獲得最佳的信號傳輸,電纜製造行業基本規範用於商業用途,短版印刷和非關鍵任務應用。百通率先推出了易帶箔粘結護套,便於安裝,數字電纜,阻燃電纜,2對版本現在提供這一功能。我們廣泛的產品線,精密同軸電纜數字音頻同軸(AES3-ID)應用的理想選擇,並提供大型場館的長期運行的應用程序的距離大幅延長。
我們還提供多對(多同軸)電纜捆綁,以簡化安裝。我們使這些超靈活的未分級的版本,CM,CMR(轉接卡額定),無鹵阻燃版本,為最苛刻的安裝要求。數字音頻蛇32對,52對模擬音頻蛇,多達12哄著捆綁的同軸電纜,將滿足每一位設計師和系統集成。
|
|
