BELDEN-1309A
Belden1309A, Speaker Cable, 2 Conductor 14 AWG, BC, Unshielded, CM 高級音響喇叭線

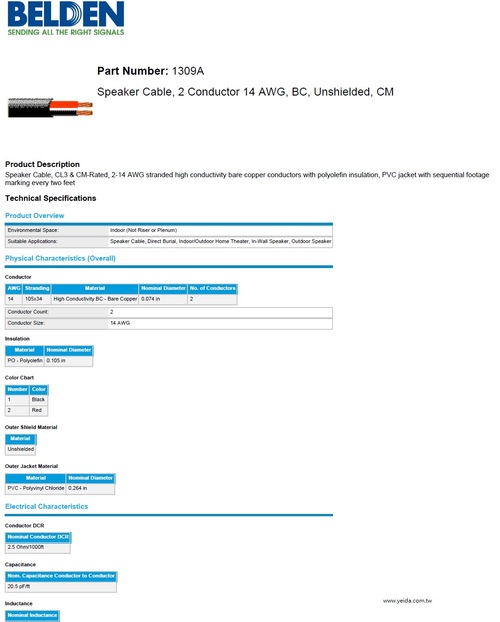

Product Description
Speaker Cable, CL3 & CM-Rated, 2-14 AWG stranded high conductivity bare copper conductors with polyolefin insulation, PVC jacket with sequential footage
marking every two feet
Technical Specifications
Product Overview
Environmental Space: Indoor (Not Riser or Plenum)
Suitable Applications: Speaker Cable, Direct Burial, Indoor/Outdoor Home Theater, In-Wall Speaker, Outdoor Speaker
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Conductors
14 105x34 High Conductivity BC - Bare Copper 0.074 in 2
Conductor Count: 2
Conductor Size: 14 AWG
Insulation
Material Nominal Diameter
PO - Polyolefin 0.105 in
Color Chart
Number Color
1 Black
2 Red
Outer Shield Material
Material
Unshielded
Outer Jacket Material
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.264 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
2.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
20.5 pF/ft
Inductance
Nominal Inductance
0.16 μH/ft
Delay
Nominal Velocity of Propagation (VP) [%]
66 %
Current
Max. Recommended Current [A]
13 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight: 42 lbs/1000ft
Max Recommended Pulling Tension: 104 lbs
Min Bend Radius/Minor Axis: 2.75 in
Standards
NEC/(UL) Specification: CL3, CM
CEC/C(UL) Specification: CM
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU RoHS Compliance Date (yyyy-mm-dd): 2005-07-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Flammability, LS0H, Toxicity Testing
UL Flammability: UL1581 Vertical Flame and FT-1 Flame Test
CSA Flammability: FT1
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): No
Plenum Number: 6100UE
Part Number
Variants
Item # Color UPC Length Footnote
1309A 0101000 Black 612825111450 1,000 ft C
1309A 010U500 Black 612825111443 500 ft
1309A 006U500 Blue, Light 612825111412 500 ft
1309A 0081000 Gray 612825111436 1,000 ft C
1309A 008U500 Gray 612825111429 500 ft
1309A N3UU500 Green, Mil 612825111405 500 ft C
1309A 1SL1000 White 1SL 612825111474 1,000 ft C
1309A 1SLU500 White 1SL 612825111467 500 ft
Footnote: C - CRATE REEL PUT-UP.
