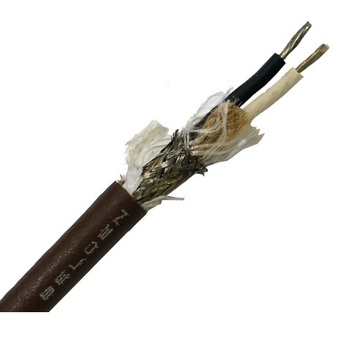

Belden 8402 Multi-Conductor - Two-Conductor, Low-Impedance Cable 二芯信號線音頻線

BELDEN8402

商品編號: BELDEN8402

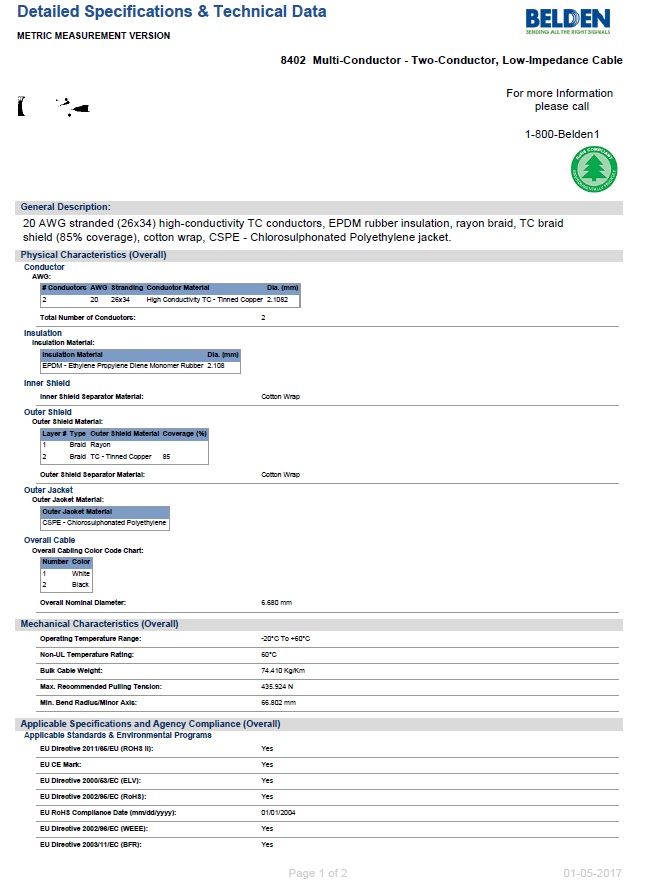

商品敘述: Belden 8402 Multi-Conductor - Two-Conductor, Low-Impedance Cable 二芯 信號線 音頻線 Audio Cables and Interconnects:

General Description: 20 AWG stranded (26x34) high-conductivity TC conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, CSPE - Chlorosulphonated Polyethylene jacket.

# Conductors	AWG	Stranding Conductor Material	Dia. (mm)
2	20	26x34 High Conductivity TC - Tinned Copper	2.1082

Insulation Insulation Material:

EPDM - Ethylene Propylene Diene Monomer Rubber : 2.108Dia. (mm)

Mechanical Characteristics (Overall)

Operating Temperature Range: -20°C To +60°C

Non-UL Temperature Rating: 60°C

Bulk Cable Weight: 74.410 Kg/Km

Max. Recommended Pulling Tension: 435.924 N

Min. Bend Radius/Minor Axis: 66.802 mm
