    Belden-E504005 5M - DataTuff® Cat 5e IP67 RJ45 Cord Set 鋁箔隔離工業級(防油 抗陽光)乙太網路連接跳線
    看原圖
    		5073317

    商品編號: Belden-E504005

    Belden-E504005 5M - DataTuff® Cat 5e IP67 RJ45 Cord Set 鋁箔隔離工業級(防油 抗陽光)乙太網路連接跳線

    工業級的電纜可提供更穩定的電氣性能，較少的衰減和更大的抗EMI / RFI。另外，有試驗證明，我們的工業以太網電纜提供：

    　
    • 溶劑，油，化學品和水分的滲透和降解防範
    • 的耐紫外線輻射和溫度變化
    • 優越的機械穩定性，能承受拉力，耐磨，粉碎，直通和埋葬
    • MSHA採礦審批
    • 紅色外被覆指定安全網絡
      　

    許多版本我們DataTuff電纜採用Belden的專利的粘連線對技術。這種結構特徵加蓋以確保沒有搶劫性能差距可以開發之間的導體對導體絕緣電纜對沿其縱軸。其結果是，總是均勻的導體，導體的間距或同心度- ，這反過來，可確保優秀的和始終如一的可靠的電氣性能，即使在嚴酷的安裝。貝爾登調用這個獨特的能力，可安裝性能®，增強6 DataTuff類別5e類和5e類電纜非屏蔽和屏蔽保稅線對電纜與重型，石油和抗紫外線外套，許多以太網/ IP兼容;無護套和鎧裝版本最極端的地區。6類DataTuff雙絞線電纜，4對，保稅對重型陽光和耐油外被覆

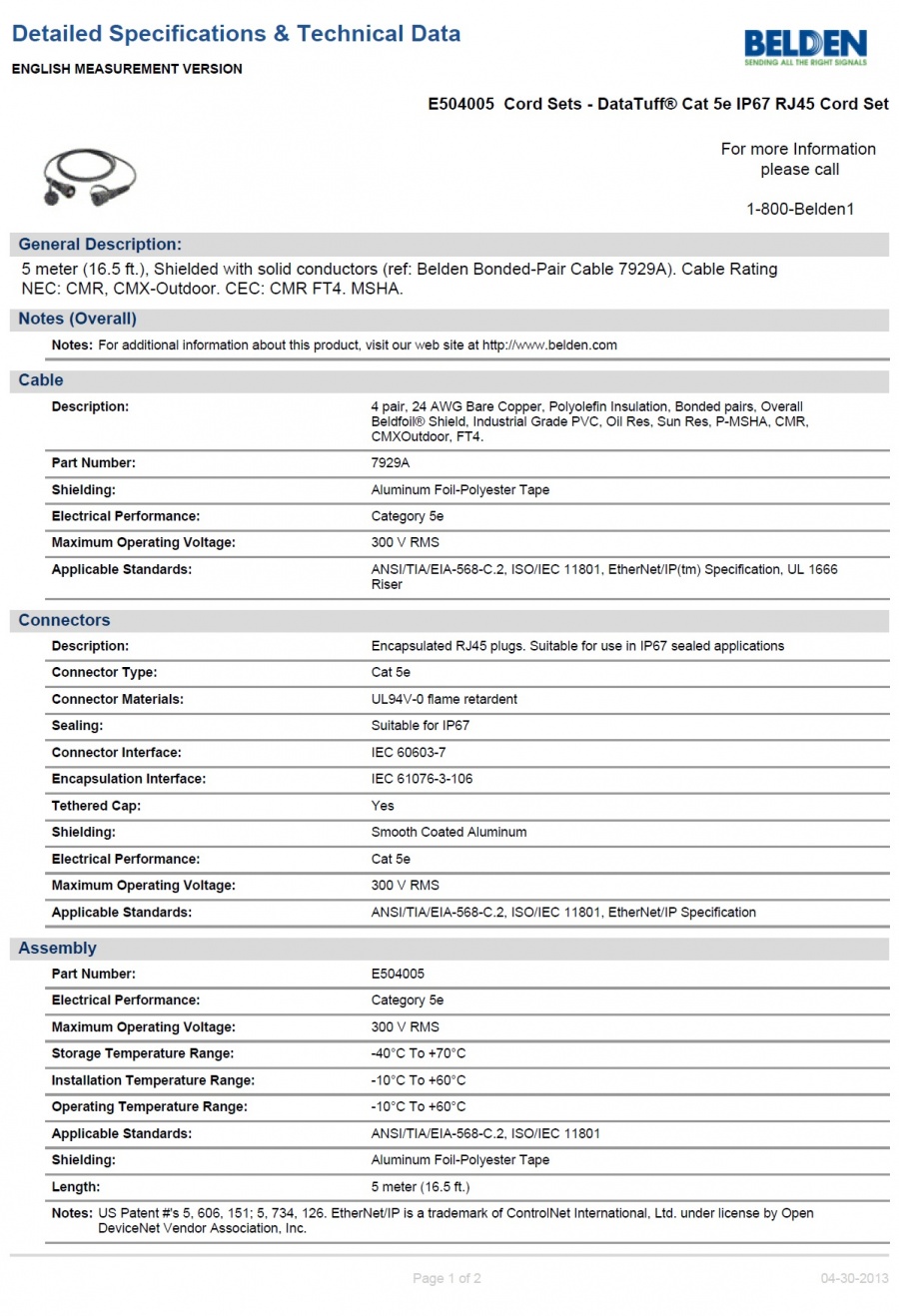

    General Description:
    5 meter (16.5 ft.), Shielded with solid conductors (ref: Belden Bonded-Pair Cable 7929A). Cable Rating
    NEC: CMR, CMX-Outdoor. CEC: CMR FT4. MSHA.
    Notes (Overall)
    Notes: For additional information about this product, visit our web site athttp://www.belden.com
    　

    Cable
    Description: 4 pair, 24 AWG Bare Copper, Polyolefin Insulation, Bonded pairs, Overall
    Beldfoil® Shield, Industrial Grade PVC, Oil Res, Sun Res, P-MSHA, CMR,
    CMXOutdoor, FT4.
    Part Number: 7929A
    Shielding: Aluminum Foil-Polyester Tape
    Electrical Performance: Category 5e
    Maximum Operating Voltage:300 V RMS
    Applicable Standards: ANSI/TIA/EIA-568-C.2, ISO/IEC 11801, EtherNet/IP(tm) Specification, UL 1666
    Riser
    　

    Connectors
    Description:     Encapsulated RJ45 plugs. Suitable for use in IP67 sealed applications
    Connector Type: Cat 5e
    Connector Materials: UL94V-0 flame retardent
    Sealing:Suitable for IP67
    Connector Interface: IEC 60603-7
    Encapsulation Interface: IEC 61076-3-106
    Tethered Cap: Yes
    Shielding: Smooth Coated Aluminum
    Electrical Performance: Cat 5e
    Maximum Operating Voltage:300 V RMS
    Applicable Standards: ANSI/TIA/EIA-568-C.2, ISO/IEC 11801, EtherNet/IP Specification
    　

    Assembly
    Part Number:     E504005
    Electrical Performance:Category 5e
    Maximum Operating Voltage:300 V RMS
    Storage Temperature Range: -40°C To +70°C
    Installation Temperature Range: -10°C To +60°C
    Operating Temperature Range: -10°C To +60°C
    Applicable Standards: ANSI/TIA/EIA-568-C.2, ISO/IEC 11801
    Shielding: Aluminum Foil-Polyester Tape
    Length: 5 meter (16.5 ft.)
    　

    Notes: US Patent #s 5, 606, 151; 5, 734, 126. EtherNet/IP is a trademark of ControlNet International, Ltd. under license by Open
    DeviceNet Vendor Association, Inc.





    ★★★★商品規格描述★★★★


    Belden DataTuff Industrial Ethernet Connectivity
    　

    DataTuff Industrial Ethernet Cord Sets (RJ45). Cat 6 4 Pair,
    23 AWG - Heavy Duty Oil -  & Sunlight-Resistant Black Jackets
    IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

    Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
    Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

    Part No. IP Rating Length meters (Ft.) Tethered Cap Standard Package Quantity (Pieces)
    E600001 010S1 IP67 1 m (3.3 ft.) Yes 1
    E600002 010S1 IP67 2 m (6.6 ft.) Yes 1
    E600003 010S1 IP67 3 m (9.8 ft.) Yes 1
    E600005 010S1 IP67 5 m (16.4 ft.) Yes 1
    E600025 010S1 IP67 25 m (82 ft.) Yes 1
    E601001 010S1 IP20 1 m (3.3 ft.) – 1
    E601002 010S1 IP20 2 m (6.6 ft.) – 1
    E601003 010S1 IP20 3 m (9.8 ft.) – 1
    E601005 010S1 IP20 5 m (16.4 ft.) – 1

    Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
    Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4
    Part No. IP Rating Length meters (Ft.) Tethered Cap Standard Package Quantity (Pieces)
    E604001 010S1 IP67 1 m (3.3 ft.) Yes 1
    E604002 010S1 IP67 2 m (6.6 ft.) Yes 1
    E604003 010S1 IP67 3 m (9.8 ft.) Yes 1
    E604005 010S1 IP67 5 m (16.4 ft.) Yes 1
    E604025 010S1 IP67 25 m (82 ft.) Yes 1
    E605001 010S1 IP20 1 m (3.3 ft.) – 1
    E605002 010S1 IP20 2 m (6.6 ft.) – 1
    E605003 010S1 IP20 3 m (9.8 ft.) – 1
    E605005 010S1 IP20 5 m (16.4 ft.) – 1

    　



    DataTuff Industrial Ethernet Ruggedized Cord Sets with Metal Body (RJ45).
    Cat 6 4-Pair, 23 AWG - Heavy Duty Oil -  & Sunlight-Resistant Black Jackets
    IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

    Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
    Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

    Part No. IP Rating Length meters (Ft.) Tethered Cap Standard Package Quantity (Pieces)
    R601001 010S1 IP20 1 m (3.3 ft.) – 1
    R601002 010S1 IP20 2 m (6.6 ft.) – 1
    R601003 010S1 IP20 3 m (9.8 ft.) – 1
    R601005 010S1 IP20 5 m (16.4 ft.) – 1

    Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
    Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4
    Part No. IP Rating Length meters (Ft.) Tethered Cap Standard Package Quantity (Pieces)
    R605001 010S1 IP20 1 m (3.3 ft.) – 1
    R605002 010S1 IP20 2 m (6.6 ft.) – 1
    R605003 010S1 IP20 3 m (9.8 ft.) – 1
    R605005 010S1 IP20 5 m (16.4 ft.) – 1



    DataTuff Industrial Ethernet Cord Sets (RJ45). Cat 5e 4 Pair,
     24 AWG - Heavy Duty Oil -  Sunlight-Resistant Black Jackets
     IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

    Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7923A)
    Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4. MSHA

    Part No. IP Rating Length meters (Ft.) Tethered Cap Standard Package Quantity (Pieces)
    E500001 010S1 IP67 1 m (3.3 ft.) Yes 1
    E500002 010S1 IP67 2 m (6.6 ft.) Yes 1
    E500003 010S1 IP67 3 m (9.8 ft.) Yes 1
    E500005 010S1 IP67 5 m (16.4 ft.) Yes 1
    E500025 010S1 IP67 25 m (82 ft.) Yes 1
    E501001 010S1 IP20 1 m (3.3 ft.) – 1
    E501002 010S1 IP20 2 m (6.6 ft.) – 1
    E501003 010S1 IP20 3 m (9.8 ft.) – 1
    E501005 010S1 IP20 5 m (16.4 ft.) – 1

    　

    Unshielded with Stranded Conductors (ref: Belden Bonded-Pair Cable 7924A)
    Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

    Part No. IP Rating Length meters (Ft.) Tethered Cap Standard Package Quantity (Pieces)
    E502001 010S1 IP67 1 m (3.3 ft.) Yes 1
    E502002 010S1 IP67 2 m (6.6 ft.) Yes 1
    E502003 010S1 IP67 3 m (9.8 ft.) Yes 1
    E502005 010S1 IP67 5 m (16.4 ft.) Yes 1
    E502025 010S1 IP67 25 m (82 ft.) Yes 1
    E503001 010S1 IP20 1 m (3.3 ft.) – 1
    E503002 010S1 IP20 2 m (6.6 ft.) – 1
    E503003 010S1 IP20 3 m (9.8 ft.) – 1
    E503005 010S1 IP20 5 m (16.4 ft.) – 1

    　

    Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7929A)
    Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4. MSHA

    Part No. IP Rating Length meters (Ft.) Tethered Cap Standard Package Quantity (Pieces)
    E504001 010S1 IP67 1 m (3.3 ft.) Yes 1
    E504002 010S1 IP67 2 m (6.6 ft.) Yes 1
    E504003 010S1 IP67 3 m (9.8 ft.) Yes 1
    E504005 010S1 IP67 5 m (16.4 ft.) Yes 1
    E504025 010S1 IP67 25 m (82 ft.) Yes 1
    E505001 010S1 IP20 1 m (3.3 ft.) – 1
    E505002 010S1 IP20 2 m (6.6 ft.) – 1
    E505003 010S1 IP20 3 m (9.8 ft.) – 1
    E505005 010S1 IP20 5 m (16.4 ft.) – 1

    　

    Shielded with Stranded Conductors (ref: Belden Bonded-Pair Cable 7939A)
    Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

    Part No. IP Rating Length meters (Ft.) Tethered Cap Standard Package Quantity (Pieces)
    E506001 010S1 IP67 1 m (3.3 ft.) Yes 1
    E506002 010S1 IP67 2 m (6.6 ft.) Yes 1
    E506003 010S1 IP67 3 m (9.8 ft.) Yes 1
    E506005 010S1 IP67 5 m (16.4 ft.) Yes 1
    E506025 010S1 IP67 25 m (82 ft.) Yes 1
    E507001 010S1 IP20 1 m (3.3 ft.) – 1
    E507002 010S1 IP20 2 m (6.6 ft.) – 1
    E507003 010S1 IP20 3 m (9.8 ft.) – 1
    E507005 010S1 IP20 5 m (16.4 ft.) – 1
