Belden-E601001 1M UTP-DataTuff® Cat 6 IP20 RJ45 Cord Set 工業級(防油抗陽光)乙太網路連接跳線

5652829

商品編號: Belden-E601001

Belden-E601001 1M UTP-DataTuff® Cat 6 IP20 RJ45 Cord Set 工業級(防油抗陽光)乙太網路連接跳線

工業級的電纜可提供更穩定的電氣性能，較少的衰減和更大的抗EMI / RFI。另外，有試驗證明，我們的工業以太網電纜提供：

　

溶劑，油，化學品和水分的滲透和降解防範
的耐紫外線輻射和溫度變化
優越的機械穩定性，能承受拉力，耐磨，粉碎，直通和埋葬
MSHA採礦審批
紅色外被覆指定安全網絡

許多版本我們DataTuff電纜採用Belden的專利的粘連線對技術。這種結構特徵加蓋以確保沒有搶劫性能差距可以開發之間的導體對導體絕緣電纜對沿其縱軸。其結果是，總是均勻的導體，導體的間距或同心度- ，這反過來，可確保優秀的和始終如一的可靠的電氣性能，即使在嚴酷的安裝。貝爾登調用這個獨特的能力，可安裝性能®，增強6 DataTuff類別5e類和5e類電纜非屏蔽和屏蔽保稅線對電纜與重型，石油和抗紫外線外套，許多以太網/ IP兼容;無護套和鎧裝版本最極端的地區。6類DataTuff雙絞線電纜，4對，重型陽光和耐油外被覆

Belden DataTuff Industrial Ethernet Connectivity
　

DataTuff Industrial Ethernet Cord Sets (RJ45). Cat 6 4 Pair,
23 AWG - Heavy Duty Oil - & Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

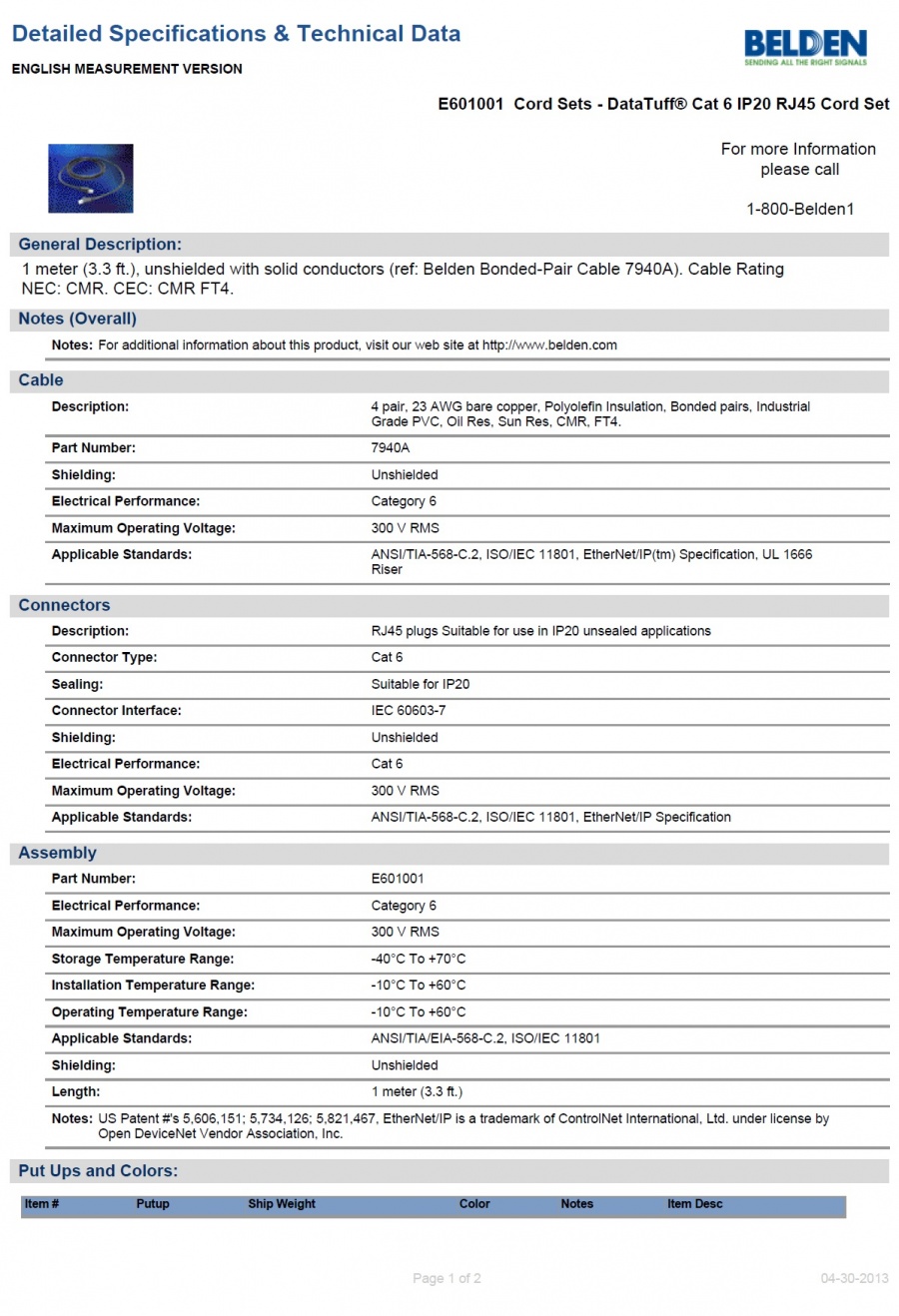

E601001

Cord Sets - DataTuff® Cat 6 IP20 RJ45 Cord Set
1 meter (3.3 ft.), unshielded with solid conductors (ref: Belden Bonded-Pair Cable 7940A). Cable Rating NEC: CMR. CEC: CMR FT4.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #

Putup

Ship Weight

Color

Notes

Item Desc

Notes (Overall)

Notes:

For additional information about this product, visit our web site at http://www.belden.com

Cable

Description:

4 pair, 23 AWG bare copper, Polyolefin Insulation, Bonded pairs, Industrial Grade PVC, Oil Res, Sun Res, CMR, FT4.

Part Number:

7940A

Shielding:

Unshielded

Electrical Performance:

Category 6

Maximum Operating Voltage:

300 V RMS

Applicable Standards:

ANSI/TIA-568-C.2, ISO/IEC 11801, EtherNet/IP(tm) Specification, UL 1666 Riser

Connectors

Description:

RJ45 plugs Suitable for use in IP20 unsealed applications

Connector Type:

Cat 6

Sealing:

Suitable for IP20

Connector Interface:

IEC 60603-7

Shielding:

Unshielded

Electrical Performance:

Cat 6

Maximum Operating Voltage:

300 V RMS

Applicable Standards:

ANSI/TIA-568-C.2, ISO/IEC 11801, EtherNet/IP Specification

Assembly

Part Number:

E601001

Electrical Performance:

Category 6

Maximum Operating Voltage:

300 V RMS

Storage Temperature Range:

-40°C To +70°C

Installation Temperature Range:

-10°C To +60°C

Operating Temperature Range:

-10°C To +60°C

Applicable Standards:

ANSI/TIA/EIA-568-C.2, ISO/IEC 11801

Shielding:

Unshielded

Length:

1 meter (3.3 ft.)

Notes:

US Patent #s 5,606,151; 5,734,126; 5,821,467, EtherNet/IP is a trademark of ControlNet International, Ltd. under license by Open DeviceNet Vendor Association, Inc.

★★★★商品規格描述★★★★

Belden DataTuff Industrial Ethernet Connectivity
　

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E600001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E600002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E600003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E600005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E600025 010S1	IP67	25 m (82 ft.)	Yes	1
E601001 010S1	IP20	1 m (3.3 ft.)	–	1
E601002 010S1	IP20	2 m (6.6 ft.)	–	1
E601003 010S1	IP20	3 m (9.8 ft.)	–	1
E601005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E604001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E604002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E604003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E604005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E604025 010S1	IP67	25 m (82 ft.)	Yes	1
E605001 010S1	IP20	1 m (3.3 ft.)	–	1
E605002 010S1	IP20	2 m (6.6 ft.)	–	1
E605003 010S1	IP20	3 m (9.8 ft.)	–	1
E605005 010S1	IP20	5 m (16.4 ft.)	–	1

DataTuff Industrial Ethernet Ruggedized Cord Sets with Metal Body (RJ45).
Cat 6 4-Pair, 23 AWG - Heavy Duty Oil - & Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7940A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
R601001 010S1	IP20	1 m (3.3 ft.)	–	1
R601002 010S1	IP20	2 m (6.6 ft.)	–	1
R601003 010S1	IP20	3 m (9.8 ft.)	–	1
R601005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7953A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
R605001 010S1	IP20	1 m (3.3 ft.)	–	1
R605002 010S1	IP20	2 m (6.6 ft.)	–	1
R605003 010S1	IP20	3 m (9.8 ft.)	–	1
R605005 010S1	IP20	5 m (16.4 ft.)	–	1
