Modular Jacks (RJ45). Cat 5e, Cat 6 IP67
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

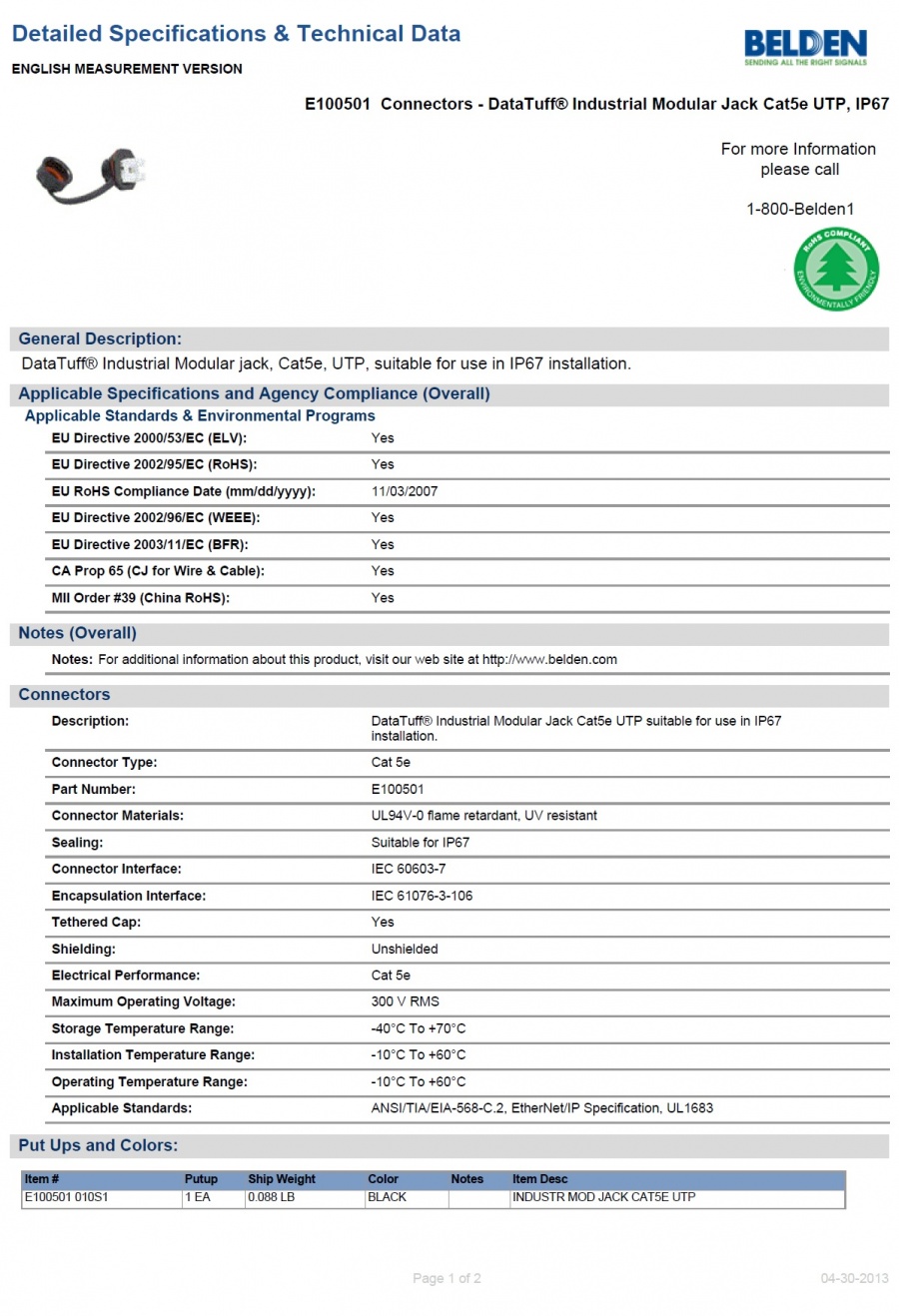

E100501

Connectors - DataTuff® Industrial Modular Jack Cat5e UTP, IP67 DataTuff® Industrial Modular jack, Cat5e, UTP, suitable for use in IP67 installation.

For more Information please call 1-800-Belden1

Click here for Certificate

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc E100501 010S1 1 EA 0.088 LB BLACK 　 INDUSTR MOD JACK CAT5E UTP

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

11/03/2007

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Notes (Overall)

Notes:

For additional information about this product, visit our web site at http://www.belden.com

Connectors

Description:

DataTuff® Industrial Modular Jack Cat5e UTP suitable for use in IP67 installation.

Connector Type:

Cat 5e

Part Number:

E100501

Connector Materials:

UL94V-0 flame retardant, UV resistant

Sealing:

Suitable for IP67

Connector Interface:

IEC 60603-7

Encapsulation Interface:

IEC 61076-3-106

Tethered Cap:

Yes

Shielding:

Unshielded

Electrical Performance:

Cat 5e

Maximum Operating Voltage:

300 V RMS

Storage Temperature Range:

-40°C To +70°C

Installation Temperature Range:

-10°C To +60°C

Operating Temperature Range:

-10°C To +60°C

Applicable Standards:

ANSI/TIA/EIA-568-C.2, EtherNet/IP Specification, UL1683
