Plug Kits (RJ45). Cat 5e. IP67
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

E300502

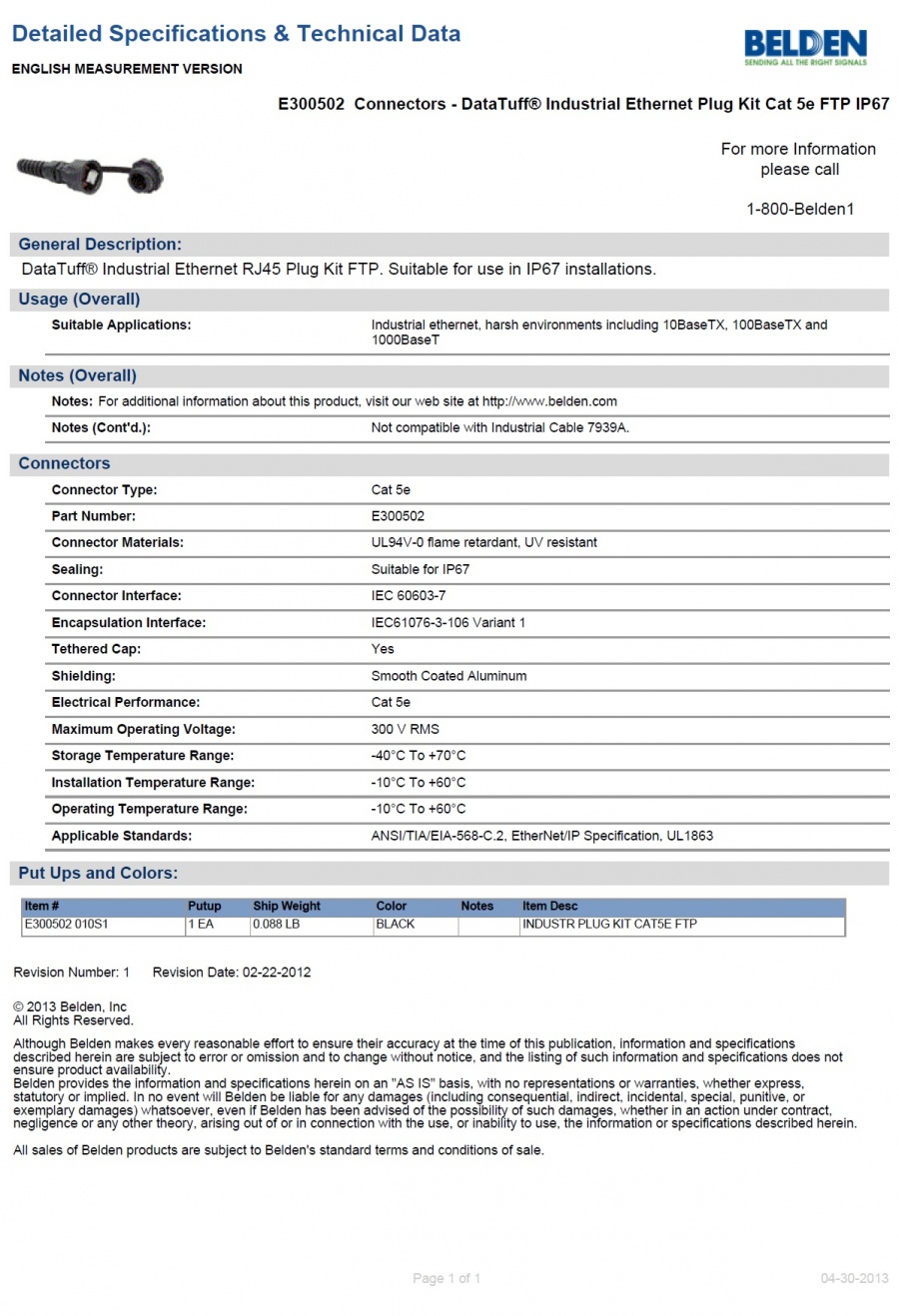

Connectors - DataTuff® Industrial Ethernet Plug Kit Cat 5e FTP IP67 DataTuff® Industrial Ethernet RJ45 Plug Kit FTP. Suitable for use in IP67 installations.

For more Information please call 1-800-Belden1

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc E300502 010S1 1 EA 0.088 LB BLACK 　 INDUSTR PLUG KIT CAT5E FTP

Usage (Overall)

Suitable Applications:

Industrial ethernet, harsh environments including 10BaseTX, 100BaseTX and 1000BaseT

Notes (Overall)

Notes:

For additional information about this product, visit our web site at http://www.belden.com

Notes (Contd.):

Not compatible with Industrial Cable 7939A.

Connectors

Connector Type:

Cat 5e

Part Number:

E300502

Connector Materials:

UL94V-0 flame retardant, UV resistant

Sealing:

Suitable for IP67

Connector Interface:

IEC 60603-7

Encapsulation Interface:

IEC61076-3-106 Variant 1

Tethered Cap:

Yes

Shielding:

Smooth Coated Aluminum

Electrical Performance:

Cat 5e

Maximum Operating Voltage:

300 V RMS

Storage Temperature Range:

-40°C To +70°C

Installation Temperature Range:

-10°C To +60°C

Operating Temperature Range:

-10°C To +60°C

Applicable Standards:

ANSI/TIA/EIA-568-C.2, EtherNet/IP Specification, UL1863
