Belden-E400001 Tools - DataTuff Handtool to Crimp UTP/FTP RJ45 Plugs 壓接工具

5653418

商品編號: Belden-E400001

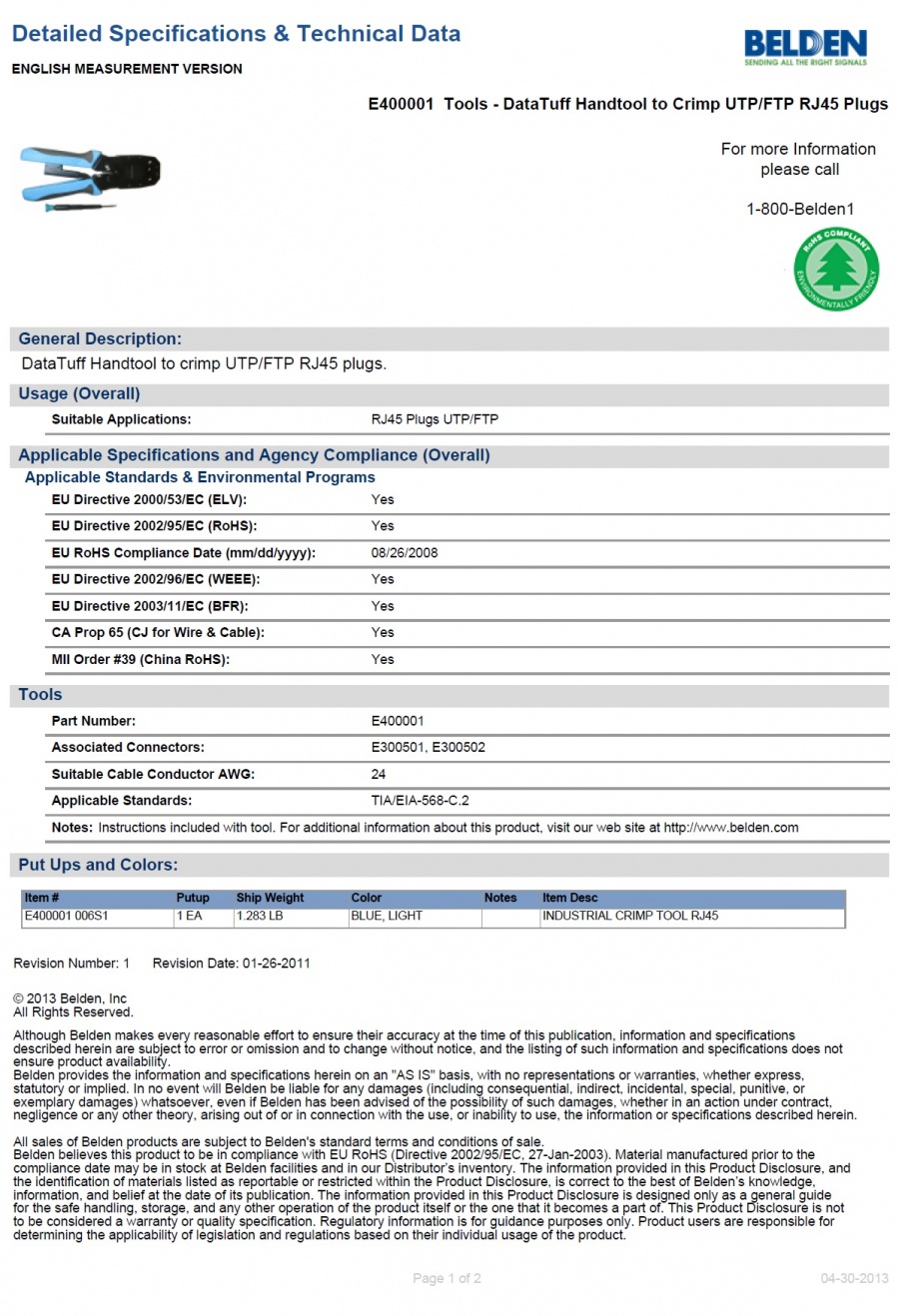

Belden-E400001 Tools - DataTuff Handtool to Crimp UTP/FTP RJ45 Plugs 壓接工具

E400001

Tools - DataTuff Handtool to Crimp UTP/FTP RJ45 Plugs
DataTuff Handtool to crimp UTP/FTP RJ45 plugs.

For more Information
please call

1-800-Belden1

Click here for Certificate

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
E400001 006S1	1 EA	1.283 LB	BLUE, LIGHT		INDUSTRIAL CRIMP TOOL RJ45

Usage (Overall)

Suitable Applications:

RJ45 Plugs UTP/FTP

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

08/26/2008

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Tools

Part Number:

E400001

Associated Connectors:

E300501, E300502

Suitable Cable Conductor AWG:

Applicable Standards:

TIA/EIA-568-C.2

Notes:

Instructions included with tool. For additional information about this product, visit our web site at http://www.belden.com

★★★★商品規格描述★★★★

DataTuff Industrial Ethernet Cord Sets (RJ45). Cat 5e 4 Pair,
24 AWG - Heavy Duty Oil - Sunlight-Resistant Black Jackets
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Unshielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7923A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4. MSHA

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E500001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E500002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E500003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E500005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E500025 010S1	IP67	25 m (82 ft.)	Yes	1
E501001 010S1	IP20	1 m (3.3 ft.)	–	1
E501002 010S1	IP20	2 m (6.6 ft.)	–	1
E501003 010S1	IP20	3 m (9.8 ft.)	–	1
E501005 010S1	IP20	5 m (16.4 ft.)	–	1

Unshielded with Stranded Conductors (ref: Belden Bonded-Pair Cable 7924A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E502001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E502002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E502003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E502005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E502025 010S1	IP67	25 m (82 ft.)	Yes	1
E503001 010S1	IP20	1 m (3.3 ft.)	–	1
E503002 010S1	IP20	2 m (6.6 ft.)	–	1
E503003 010S1	IP20	3 m (9.8 ft.)	–	1
E503005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Solid Conductors (ref: Belden Bonded-Pair Cable 7929A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4. MSHA

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E504001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E504002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E504003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E504005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E504025 010S1	IP67	25 m (82 ft.)	Yes	1
E505001 010S1	IP20	1 m (3.3 ft.)	–	1
E505002 010S1	IP20	2 m (6.6 ft.)	–	1
E505003 010S1	IP20	3 m (9.8 ft.)	–	1
E505005 010S1	IP20	5 m (16.4 ft.)	–	1

Shielded with Stranded Conductors (ref: Belden Bonded-Pair Cable 7939A)
Cable Rating NEC: CMR, CMX-Outdoor CEC: CMR FT4

Part No.	IP Rating	Length meters (Ft.)	Tethered Cap	Standard Package Quantity (Pieces)
E506001 010S1	IP67	1 m (3.3 ft.)	Yes	1
E506002 010S1	IP67	2 m (6.6 ft.)	Yes	1
E506003 010S1	IP67	3 m (9.8 ft.)	Yes	1
E506005 010S1	IP67	5 m (16.4 ft.)	Yes	1
E506025 010S1	IP67	25 m (82 ft.)	Yes	1
E507001 010S1	IP20	1 m (3.3 ft.)	–	1
E507002 010S1	IP20	2 m (6.6 ft.)	–	1
E507003 010S1	IP20	3 m (9.8 ft.)	–	1
E507005 010S1	IP20	5 m (16.4 ft.)	–	1

Modular Jacks (RJ45). Cat 5e, Cat 6 IP67
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Part No.	Description	Tethered Cap	Quantity
E100501 010S1	UTP, Black, Cat 5e	Yes	1
E100502 010S1	FTP, Black, Cat 5e	Yes	1
E100601 010S1	UTP, Black, Cat 6	Yes	1
E100602 010S1	FTP, Black, Cat 6	Yes	1

Plug Kits (RJ45). Cat 5e. IP67
IP67 interface complies with the EtherNet/IP specification (IEC 61076-3-106 Variant 1)

Part No.	Description	Quantity
E300501 010S1	UTP, Black	1
E300502 010S1	FTP, Black	1

Field-Installable Metal Body Ruggedized Plug (RJ45). Cat 6. IP20

Part No.	Description	Quantity
R300601 000S1	UTP/STP, T568A Plug	1
R300602 000S1	UTP/STP, T568B Plug	1

Stainless Steel Faceplates. IP67

Part No.	Description	Quantity
E200001 000S1	Single gang, 1-port	1
E200002 000S1	Single gang, 2-port	1
E200004 000S1	Double gang, 4-port	1

FTP= Foil Shielded Twisted Pairs • UTP= Unshielded Twisted Pairs
　
