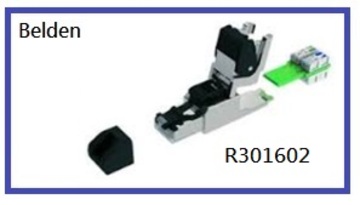

    BELDEN-R301602 Connectors - DataTuff® Industrial Ethernet Ruggedized Plug Kit T568B Cat 6A AWG 22-24 UTP/STP IP20 工業等級乙太網路RJ45接頭模塊
    看原圖
    		BELDENR301602


    BELDEN-R301602 Connectors - DataTuff® Industrial Ethernet Ruggedized Plug Kit T568B Cat 6A AWG 22-24 UTP/STP IP20 工業等級乙太網路RJ45接頭模塊

    Connectors - DataTuff® Industrial Ethernet Ruggedized Plug Kit T568B Cat 6A AWG 22-24 UTP/STP IP20
    DataTuff® Industrial Ethernet Ruggedized RJ45 Plug Kit UTP/STP, AWG 22-24, T568B. Suitable for use in IP20 unsealed installations.
    Put Ups and Colors:
    Item ## Putup Ship Weight Color Notes Item Desc
    R301602 000S1 1 EA 0.060 LB NONE   IND RUGG RJ45 T568B AWG22-24
    Usage (Overall)
    Suitable Applications: Industrial ethernet, harsh environments including 10BaseTX, 100BaseTX, 1000BaseT, 10GBASE-T and IBDN System 10GX
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2006
    MII Order #39 (China RoHS): EUP 50
    Safety Listing: Bi-national Standard Listed
    Notes (Overall)
    Notes: Refer to Installation Guide PX105479. For additional information about this product, visit our web site at http://www.belden.com
    Connectors
    Part Number: R301602
    Connector Materials: UL94V-0 flame retardant, UV resistant
    Sealing: Suitable for IP20
    Connector Interface: IEC 60603-7
    Shielding: Zinc diecast - Nickel plated
    Electrical Performance: Cat 6A
    Maximum Operating Voltage: 300 V RMS
    Storage Temperature Range: -40°C To +85°C
    Installation Temperature Range: -40°C To +85°C
    Operating Temperature Range: -40°C To +85°C
    Applicable Standards: ANSI/TIA/EIA-568-C.2, EtherNet/IP Specification, UL1863
    Connector Specification Ranges:
    Conductor Solid Stranded Min. (mm) Max. (mm)
    AWG - Min. 24 24/7
    AWG - Max. 22 22/7
    Insulation Diameter     1.092 1.600
    Outer Jacket Diameter     5.004 8.992
    Notes: UL Flame Test: UL2043 Air Handling Spaces
