商品編號: Belden-5502G1

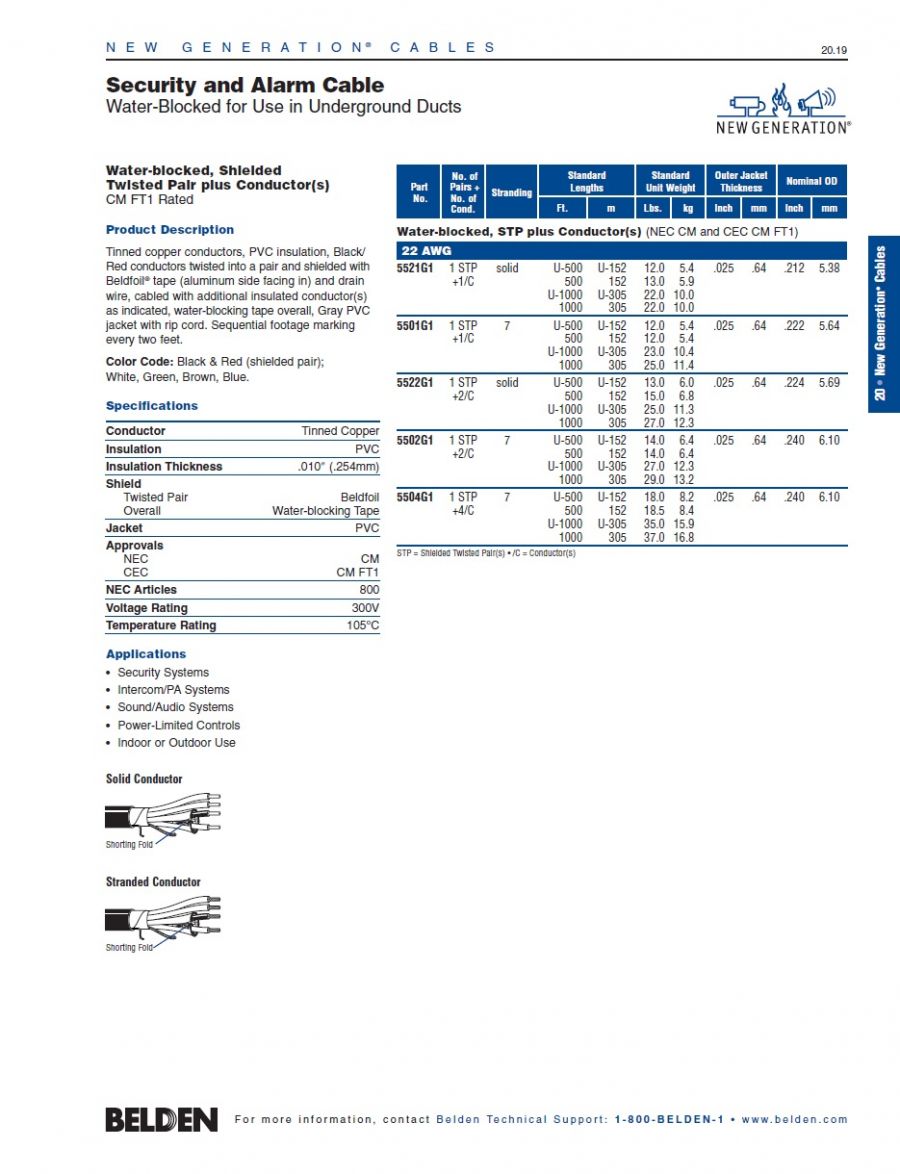

Belden® -5502G1 Awg22 x 1 STP+2/C Security and Alarm Cable Water-blocked, STP plus Conductor(s) (NEC CM and CEC CM FT1) 防水對型鋁箔隔離安全監控火災警報用線
Security and Alarm Cable
Water-Blocked for Use in Underground Ducts
Water-blocked, ShieldedTwisted Pair plus Conductor(s)
CM FT1 Rated
Product Description
Tinned copper conductors, PVC insulation, Black/
Red conductors twisted into a pair and shielded with
Beldfoil® tape (aluminum side facing in) and drain
wire, cabled with additional insulated conductor(s)
as indicated, water-blocking tape overall, Gray PVC
jacket with rip cord. Sequential footage marking
every two feet.
Color Code: Black & Red (shielded pair);
White, Green, Brown, Blue.
Specifications
Conductor Tinned Copper
Insulation PVC
Insulation Thickness .010″ (.254mm)
Shield
Twisted Pair Beldfoil
Overall Water-blocking Tape
Jacket PVC
Approvals
NEC CM
CEC CM FT1
NEC Articles 800
Voltage Rating 300V
Temperature Rating 105°C
Applications
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls
• Indoor or Outdoor Use
|
