商品編號: Belden-37114
Belden37114 Awg14 UL AWM Style 3340 and 3374 EPDM high temperature (150ºC 600V)Hook up Wire EPDM高溫電子線

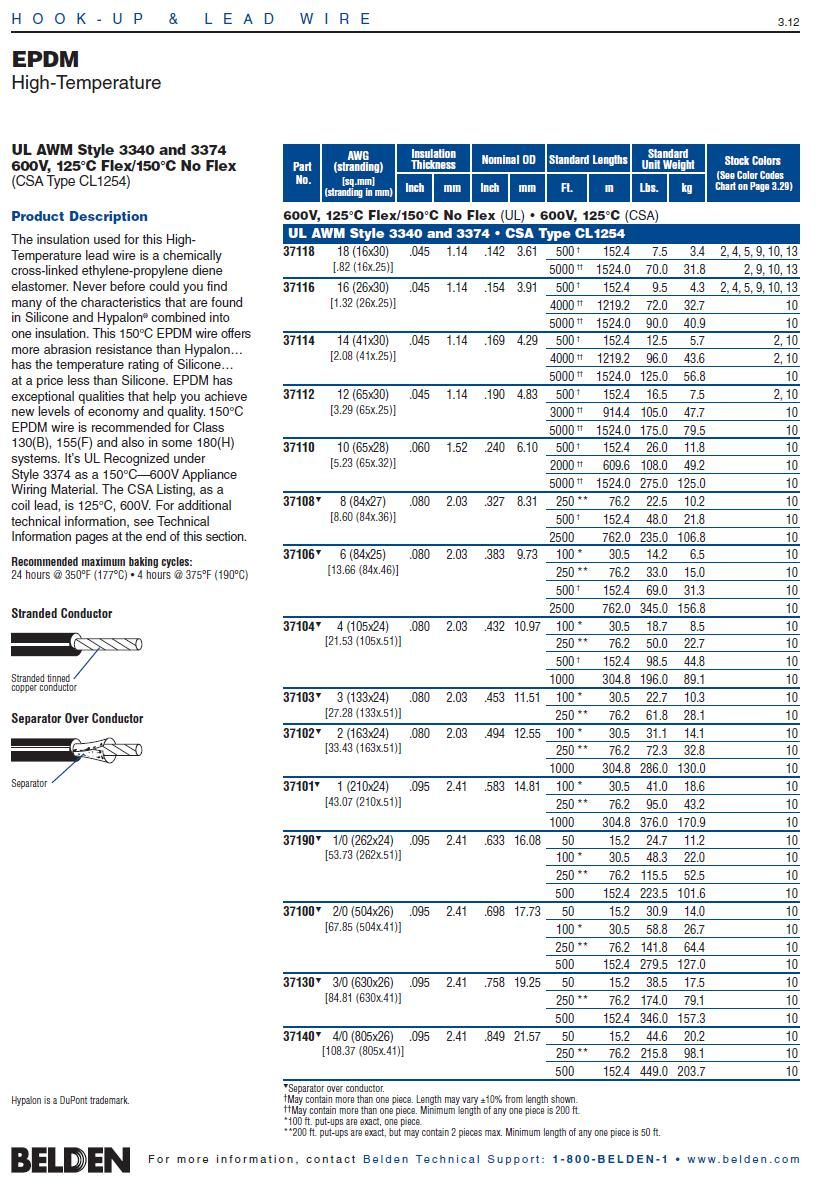

Hook-up/Lead - UL AWM Style 3340 and 3374
EPDM high temperature lead wire. 150C EPDM wire is recommended for Class 130(B) , 155(F) and also in some 180(H) systems. It^s UL Recognized under Style 3374 as 150C-600V Appliance Wiring Material. The CSA Listing, as a coil lead, is 125C, 600V. |
For more Information
please call
1-800-Belden1 |
Item # |
Putup |
Ship Weight |
Color |
Notes |
Item Desc |
37114 0024000 |
4,000 FT |
96.000 LB |
RED |
C I Z |
#14STR EPDM 150C 600VRED |
37114 002500 |
500 FT |
12.500 LB |
RED |
F |
#14 STR EPDM 150C 600V |
37114 0104000 |
4,000 FT |
96.000 LB |
BLACK |
C I |
#14STR EPDM 150C 600VBLK |
37114 010500 |
500 FT |
12.500 LB |
BLACK |
F |
#14 STR EPDM 150C |
37114 0105000 |
5,000 FT |
125.000 LB |
BLACK |
C |
#14 STR EPDM BLK |
|
Notes: |
|
C = CRATE REEL PUT-UP.
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND(+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
|
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors |
AWG |
Stranding |
Conductor Material |
1 |
14 |
41x30 |
TC - Tinned Copper |
|
Insulation
Insulation Material:
Insulation Material |
Wall Thickness (in.) |
EPDM - Ethylene Propylene Diene Monomer Rubber |
.045 |
|
Overall Insulation
Overall Cabling
Overall Nominal Diameter: |
0.169 in. |
Mechanical Characteristics (Overall)
UL Temperature Rating: |
125°C (UL AWM Style 3340), 125°C (UL AWM Style 3374), 150°C |
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
UL AWM Style: |
UL Style 3340 (600 V 125°C), UL Style 3374 (600 V 125°C) |
EU Directive 2000/53/EC (ELV): |
Yes |
EU Directive 2002/95/EC (RoHS): |
Yes |
EU RoHS Compliance Date (mm/dd/yyyy): |
01/01/2004 |
EU Directive 2002/96/EC (WEEE): |
Yes |
EU Directive 2003/11/EC (BFR): |
Yes |
CA Prop 65 (CJ for Wire & Cable): |
Yes |
MII Order #39 (China RoHS): |
Yes |
Plenum/Non-Plenum
Electrical Characteristics (Overall)
Max. Operating Voltage - UL:
Voltage |
600 V RMS (UL AWM Style 3340) |
600 V RMS (UL AWM Style 3374) |
|
|
|
|
