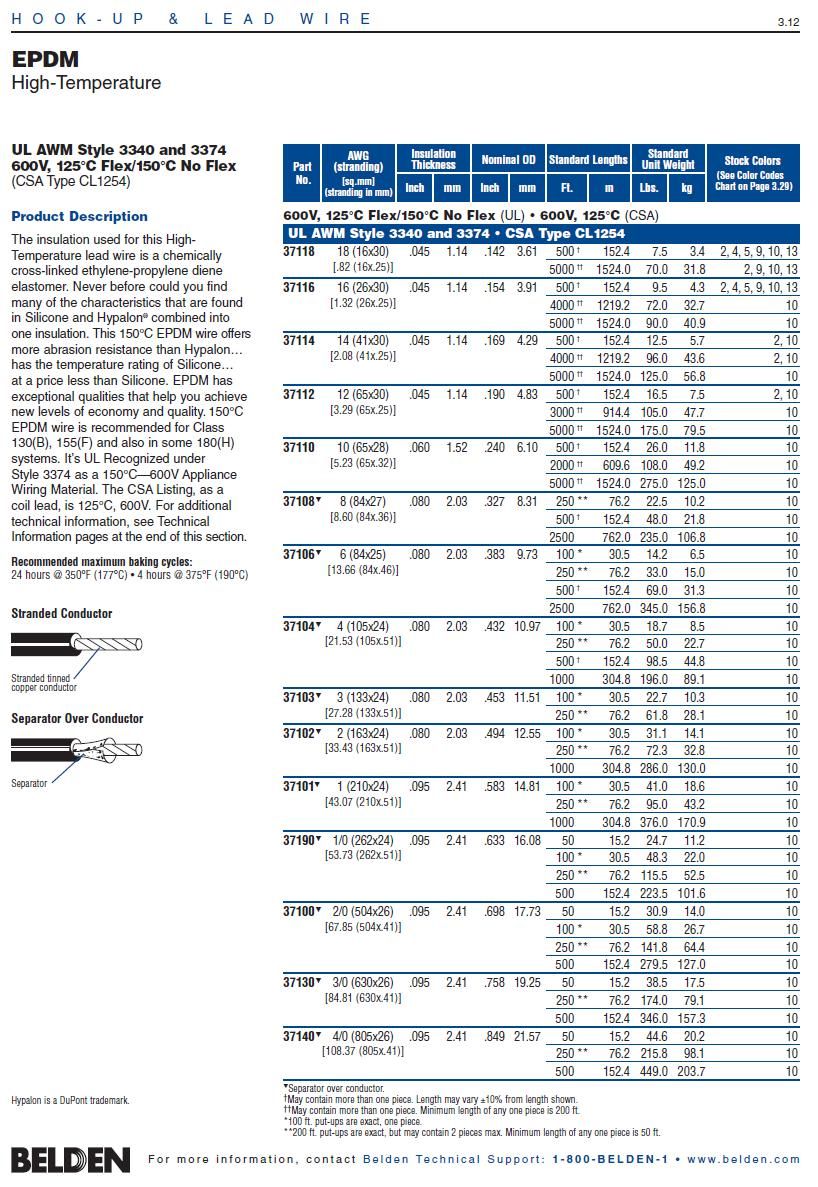

    Belden37106 Awg6 UL AWM Style 3340 and 3374 EPDM high temperature (150ºC 600V)Hook up Wire EPDM高溫電子
    看原圖
    		453438

    商品編號: Belden-37106

    Belden-37106  Awg6 UL AWM Style 3340 and 3374  EPDM high temperature  (150ºC 600V)Hook up Wire EPDM高溫電子

    37106
    		    Hook-up/Lead - UL AWM Style 3340 and 3374
    EPDM high temperature lead wire. 150C EPDM wire is recommended for Class 130(B) , 155(F) and also in some 180(H) systems. It^s UL Recognized under Style 3374 as 150C-600V Appliance Wiring Material. The CSA Listing, as a coil lead, is 125C, 600V.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    37106 010100 100 FT 14.400 LB BLACK 　 #6 STR EPDM 150C 600V
    37106 010250 250 FT 36.000 LB BLACK F #6 STR EPDM 150C 600C
    37106 0102500 2,500 FT 345.000 LB BLACK C #6 STR EPDM BLK
    37106 010500 500 FT 70.500 LB BLACK C F #6 STR EPDM 150C 600V
    Notes: 　
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 6 84x25 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    EPDM - Ethylene Propylene Diene Monomer Rubber .080
    Separator
    Separator Material over Conductor: Y
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.383 in.
    Mechanical Characteristics (Overall)
    UL Temperature Rating: 125°C (UL AWM Style 3340), 125°C (UL AWM Style 3374), 150°C
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: UL Style 3340 (600 V 125°C), UL Style 3374 (600 V 125°C)
    UL Rating: 600 V, 150°C
    CSA Rating: 600 V, 125°C
    CSA Type: CL1254
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Max. Operating Voltage - UL:
    Voltage
    600 V RMS (UL AWM Style 3340)
    600 V RMS (UL AWM Style 3374)
