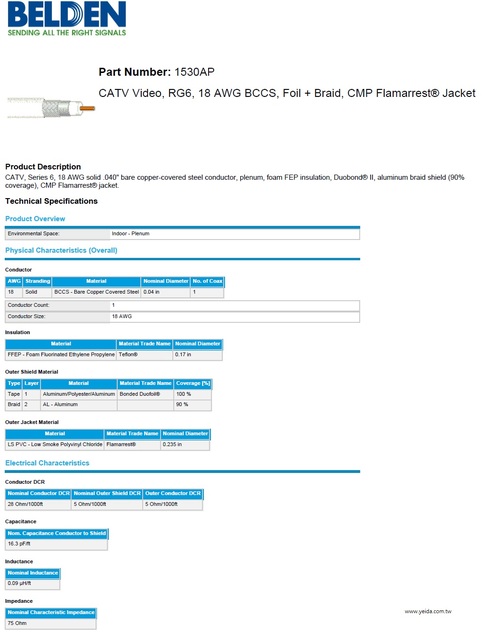

BELDEN1530AP, CATV Video, RG6, 18 AWG BCCS, Foil + Braid, CMP Flamarrest® Jacket, 安全監控, 第四台, 有線電視, Plenum-CMP等級, RG6, 同軸電纜

Product Description
CATV, Series 6, 18 AWG solid .040" bare copper-covered steel conductor, plenum, foam FEP insulation, Duobond® II, aluminum braid shield (90%
coverage), CMP Flamarrest® jacket.
Technical Specifications
Product Overview
Environmental Space: Indoor - Plenum
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BCCS - Bare Copper Covered Steel 0.04 in 1
Conductor Count: 1
Conductor Size: 18 AWG
Insulation
Material Material Trade Name Nominal Diameter
FFEP - Foam Fluorinated Ethylene Propylene Teflon® 0.17 in
Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Aluminum/Polyester/Aluminum Bonded Duofoil® 100 %
Braid 2 AL - Aluminum 90 %
Outer Jacket Material
Material Material Trade Name Nominal Diameter
LS PVC - Low Smoke Polyvinyl Chloride Flamarrest® 0.235 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
28 Ohm/1000ft 5 Ohm/1000ft 5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.09 μH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Min. Structural Return Loss (SRL)
10 - 1000 MHz 20 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.3 dB/100ft
10 MHz 0.7 dB/100ft
50 MHz 1.6 dB/100ft
100 MHz 2.2 dB/100ft
200 MHz 3 dB/100ft
400 MHz 4.6 dB/100ft
700 MHz 6.6 dB/100ft
900 MHz 7.7 dB/100ft
1000 MHz 8.2 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 83 %
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight: 27 lbs/1000ft
Max Recommended Pulling Tension: 162 lbs
Min Bend Radius/Minor Axis: 2.5 in
Standards
NEC/(UL) Specification: CATVP, CMP
CEC/C(UL) Specification: CMP
RG Type: 6/U Type
Series Type: Series 6
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Flammability, LS0H, Toxicity Testing
UL Flammability: NFPA 262
CSA Flammability: FT6
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): Yes
Part Number
Non-Plenum Number: 1530A
Variants
Item # Color UPC Length Footnote
1530AP 8771000 Natural 612825117254 1,000 ft C
Footnote: C - CRATE REEL PUT-UP.
Product Notes
Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.
