BELDEN-633938

BELDEN-633938
BELDEN633938, Surveillance CATV MATV, RG-6 #18 BC, Duofoil® + 90% AL Braid, CMP-CATVP 安全監控, 第四台, 有線電視, Plenum-CMP等級, RG6, 同軸電纜

Product Description

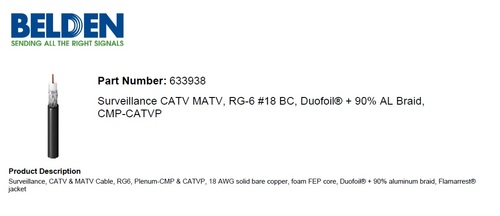

Surveillance, CATV & MATV Cable, RG6, Plenum-CMP & CATVP, 18 AWG solid bare copper, foam FEP core, Duofoil® + 90% aluminum braid, Flamarrest®
jacket
Technical Specifications
Product Overview
Suitable Applications: CATV, MATV
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Pairs No. of Coax
18 Solid BC - Bare Copper 0.04 in 1 1
Conductor Count: 1
Conductor Size: 18 AWG
Insulation
Material Nominal Diameter
FFEP - Foam Fluorinated Ethylene Propylene 0.17 in
Color Chart
Number
1
Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Aluminum/Polyester/Aluminum Duofoil® 100 %
Braid 2 AL - Aluminum 90 %
Outer Jacket Material
Material Material Trade Name Nominal Diameter
LS PVC - Low Smoke Polyvinyl Chloride Flamarrest® 0.233 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
6.4 Ohm/1000ft 3.5 Ohm/1000ft 3.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.097 μH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.24 dB/100ft
3 MHz 0.45 dB/100ft
5 MHz 0.55 dB/100ft
8 MHz 0.7 dB/100ft
10 MHz 0.85 dB/100ft
50 MHz 1.5 dB/100ft
100 MHz 2.1 dB/100ft
200 MHz 3.1 dB/100ft
400 MHz 4.5 dB/100ft
700 MHz 6 dB/100ft
900 MHz 6.9 dB/100ft
1000 MHz 7.3 dB/100ft
Delay
Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
83 ns/100m 1.24 ns/ft 83 %
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight: 28 lbs/1000ft
Max Recommended Pulling Tension: 104 lbs
Min Bend Radius/Minor Axis: 2.25 in
Standards
NEC Articles: 820
NEC/(UL) Specification: CATVP, CMP
CEC/C(UL) Specification: CMP
RG Type: 6/U Type
Series Type: Series 6
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Flammability, LS0H, Toxicity Testing
C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): Yes
Part Number
Variants
Item # Color UPC Length Footnote
633938 010U1000 Black 612825176091 1,000 ft
633938 008U1000 Gray 612825176077 1,000 ft
633938 8771000 Natural 612825176114 1,000 ft C
633938 877500 Natural 612825176121 500 ft C
633938 877U1000 Natural 612825176107 1,000 ft
633938 009U1000 White 612825176084 1,000 ft
Footnote: C - CRATE REEL PUT-UP.
History
Update and Revision: Revision Number: 0.227 Revision Date: 07-26-2019
