    首頁 > > Thermax-Low-Noise Cable

    Thermax-50-742TFSXE, Low-Noise Coaxial Cable(Silver-plated high-strength copper alloy, 50 Ohms Extruded FEP.)Awg 34 x 1C 鍍鎳鐵氟龍耐高溫低雜訊抗靜電干擾隔離信號線
    看原圖
    		5384568

    商品編號: Thermax-50-742TFSXE

    Thermax-50-742TFSXE, Low-Noise Coaxial Cable(Silver-plated high-strength copper alloy, 50 Ohms Extruded FEP.)Awg 34 x 1C 鍍鎳鐵氟龍耐高溫低雜訊抗靜電干擾隔離信號線

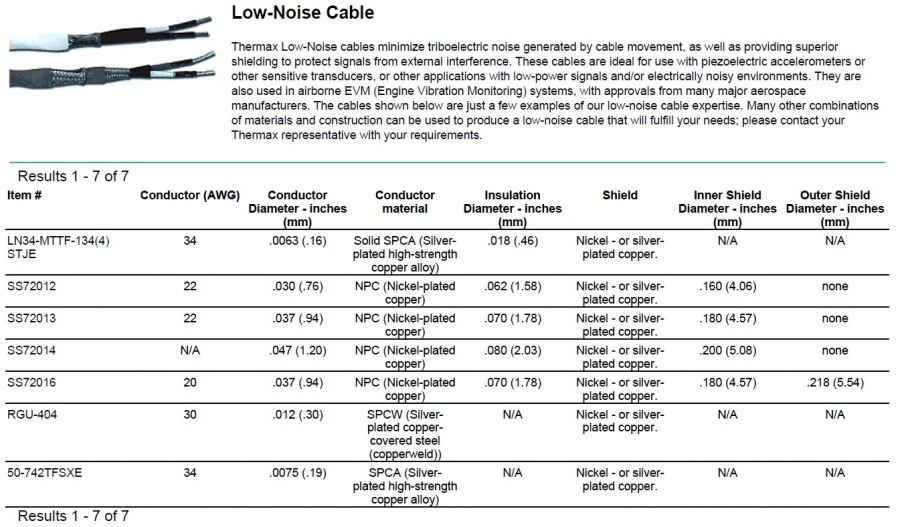

    Low-Noise Cable
    Thermax Low-Noise cables minimize triboelectric noise generated by cable movement, as well as providing superior shielding to protect signals from external interference. These cables are ideal for use with piezoelectric accelerometers or other sensitive transducers, or other applications with low-power signals and/or electrically noisy environments. They are also used in airborne EVM (Engine Vibration Monitoring) systems, with approvals from many major aerospace manufacturers. The cables shown below are just a few examples of our low-noise cable expertise. Many other combinations of materials and construction can be used to produce a low-noise cable that will fulfill your needs; please contact your Thermax representative with your requirements.
    　
    Specifications 　

    Conductor (AWG)

    		 34
    　

    Conductor Diameter - inches (mm)

    		 .0075 (.19)
    　

    Conductor material

    		 SPCA (Silver-plated high-strength copper alloy)
    　

    Center Conductor

    		 Nickel or silver-plated stranded copper.
    　

    Impedance (Ohms)

    		 50
    　

    Jacket

    		 Tape wrapped PTFE; extruded jacket or our unique Seamless Wrap PTFE tape optional.
    　

    Shield

    		 Nickel - or silver-plated copper.
    　

    Jacket Diameter - inches (mm)

    		 .048 (1.22)
    　

    Weight - pounds/1000 feet (Kg/1000 M)

    		 3.0 (4.5)
    　

    Dielectric

    		 Tape wrapped PTFE with semiconductive inner and outer PTFE tape. "SS" part numbers feature our proprietary easy-stripping design.
    　

    Shield Diameter - inches (mm)

    		 .034 (.86)
    　

    Shield (AWG)

    		 40
    　

    Shield material

    		 SPC (Silver-plated copper)
    　

    Conductor stranding

    		 7/42
    　

    Jacket material

    		 Extruded FEP
    　

    Dielectric Diameter

    		.022 (.56)
    　

    Dielectric Material

    		 Extruded PTFE
    　

    Cable Type

    		 Coaxial
    　

    Options

    		 Wide variety of options for conductor and shield materials and plating and configurations of low-noise layering available.
    　




    ★★★★使用操作說明★★★★


    Item #

    Conductor (AWG)

    Conductor Diameter - inches (mm)

    Conductor material

    Insulation Diameter - inches (mm)

    Shield

    Inner Shield Diameter - inches (mm)

    Outer Shield Diameter - inches (mm)
    LN34-MTTF-134(4) STJE 34 .0063 (.16) Solid SPCA (Silver-plated high-strength copper alloy) .018 (.46) Nickel - or silver-plated copper. N/A N/A
    SS72012 22 .030 (.76) NPC (Nickel-plated copper) .062 (1.58) Nickel - or silver-plated copper. .160 (4.06) none
    SS72013 22 .037 (.94) NPC (Nickel-plated copper) .070 (1.78) Nickel - or silver-plated copper. .180 (4.57) none
    SS72014 N/A .047 (1.20) NPC (Nickel-plated copper) .080 (2.03) Nickel - or silver-plated copper. .200 (5.08) none
    SS72016 20 .037 (.94) NPC (Nickel-plated copper) .070 (1.78) Nickel - or silver-plated copper. .180 (4.57) .218 (5.54)
    RGU-404 30 .012 (.30) SPCW (Silver-plated copper-covered steel (copperweld)) N/A Nickel - or silver-plated copper. N/A N/A
    50-742TFSXE 34 .0075 (.19) SPCA (Silver-plated high-strength copper alloy) N/A Nickel - or silver-plated copper. N/A N/A
