    首頁 > > Belden-PPO Hook-up Wire Zero Halogen 無鹵環保電子線

    Blden39110 Lead Wire,14AWG (41x30) Tinned Copper, , PPO Ins, UL AWM 11028 600V 105C VW-1 無鹵, 質輕, 不含重金屬絕緣, 100%可回收, 附合環保法規電子線
    看原圖

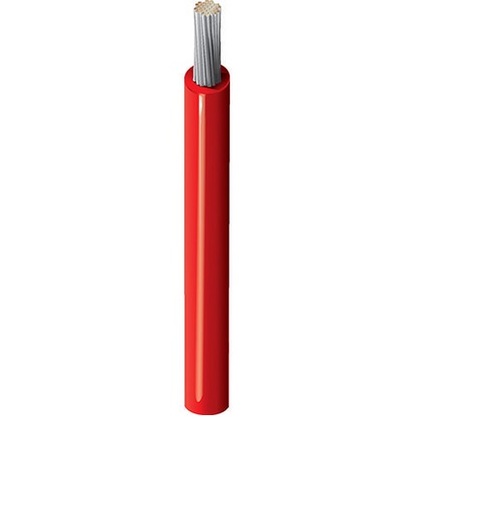

    		BELDEN-39110

    Blden39110 Lead Wire,14AWG (41x30) Tinned Copper, , PPO Ins, UL AWM 11028 600V 105C VW-1 無鹵, 質輕, 不含重金屬絕緣, 100%可回收, 附合環保法規電子線

    Product Description
    Low Temp Plastic Lead Wire, 10AWG (105x30) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1
    Technical Specifications
    Product Overview
    Suitable Applications: Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their
    sub-suppliers
    Physical Characteristics (Overall)
    Conductor
    AWG Stranding Material No. of Conductors
    10 105x30 TC - Tinned Copper 1
    Conductor Count: 1
    Conductor Size: 10 AWG
    Insulation
    Material Nominal Diameter Nominal Wall Thickness
    PPO - Polyphenylene Oxide 0.134 in 0.012 in
    Outer Jacket Material
    Material
    No Jacket
    Electrical Characteristics
    Conductor DCR
    Nominal Conductor DCR
    1 Ohm/1000ft
    Current
    Element Max. Recommended Current [A]
    Single conductor in free air @ 30C ambient 67.0 A
    Voltage
    UL Voltage Rating
    600 V
    Temperature Range
    UL Temp Rating: 105°C
    Operating Temp Range: -40°C To +105°C Dry
    Mechanical Characteristics
    Bulk Cable Weight: 36.5 lbs/1000ft
    Standards
    UL AWM Style: AWM 11028
    Military Specification: N/A
    Applicable Environmental and Other Programs
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2003/96/EC (BFR): Yes
    EU Directive 2011/65/EU (ROHS II): Yes
    EU Directive 2012/19/EU (WEEE): Yes
    EU Directive 2015/863/EU: Yes
    EU Directive Compliance: EU Directive 2003/11/EC (BFR)
    EU CE Mark: Yes
    EU RoHS Compliance Date
    (yyyy-mm-dd):
    2011-04-01
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flammability, LS0H, Toxicity Testing
    UL Flammability: VW-1
    UL voltage rating: 600 V RMS
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Product Notes
    Notes: Halogen-free.
