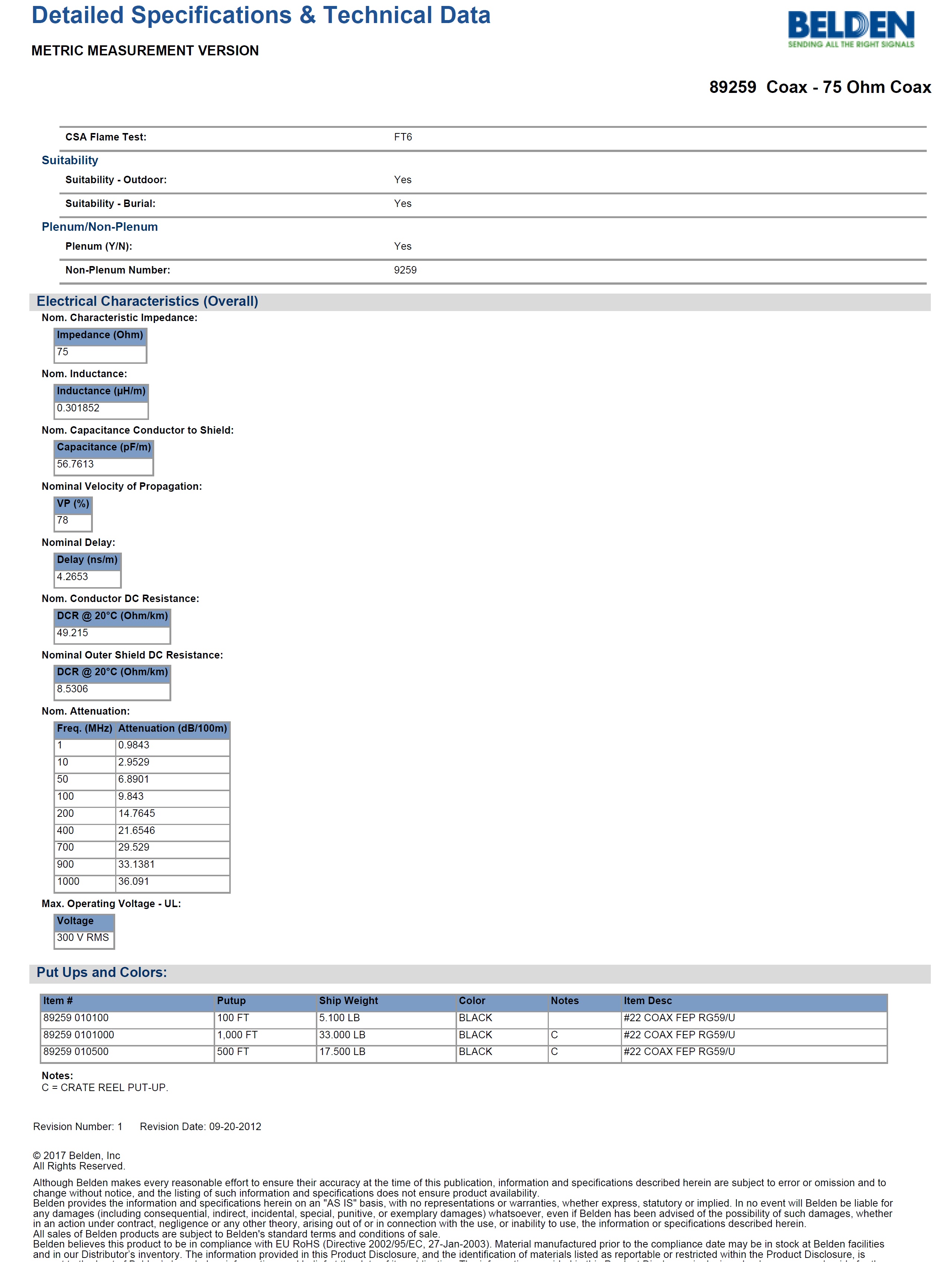

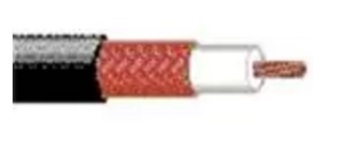

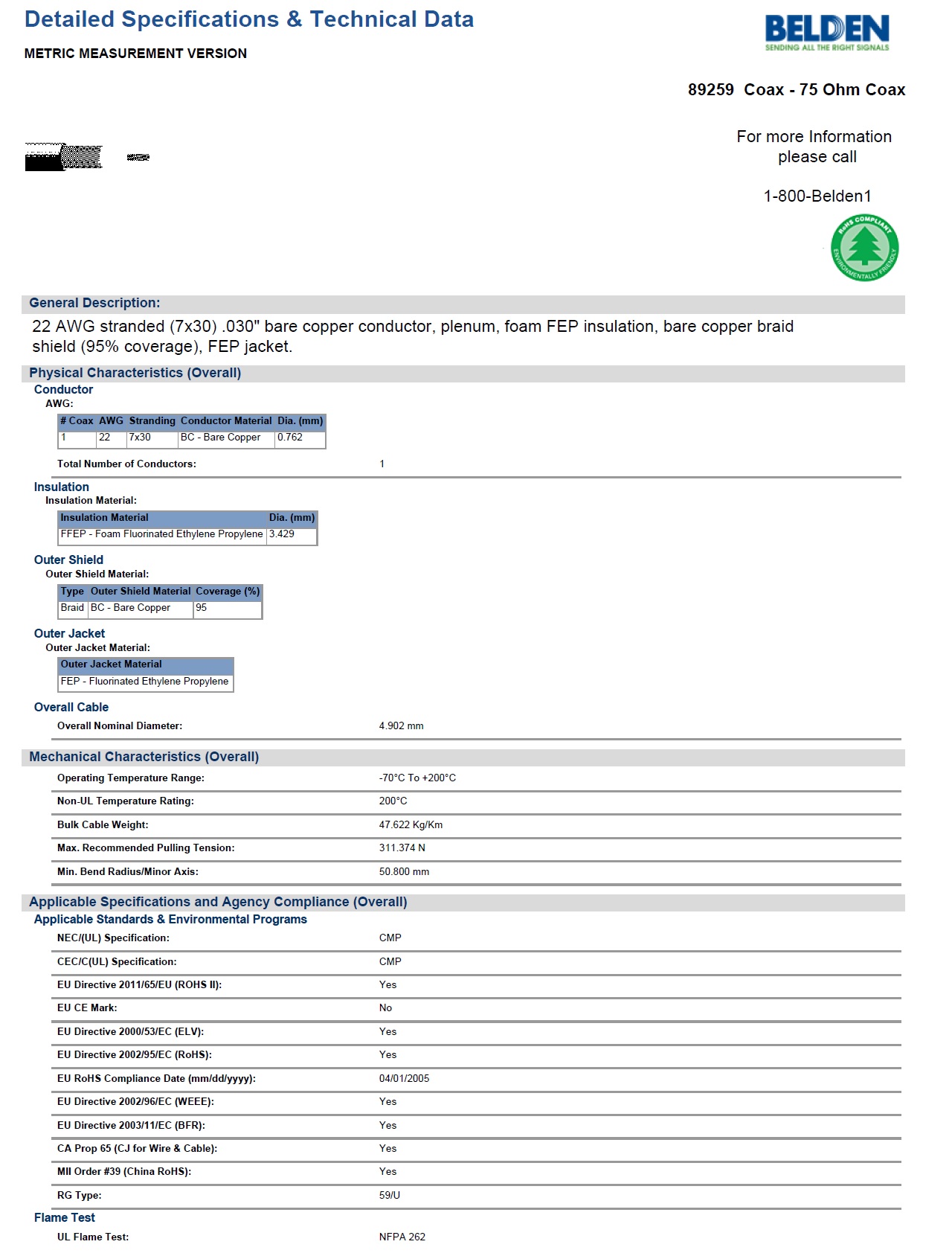

    Belden 89259 Standard Analog Video Cable - 75 Ohm Coax RG-59/U(鐵弗龍)
    看原圖
    162681

    商品編號: Belden 89259

    Belden 89259 Standard Analog Video Cable - 75 Ohm Coax RG-59/U(鐵弗龍)


    89259
       Coax - 75 Ohm Coax
    22 AWG stranded (7x30) .030" bare copper conductor, plenum, foam FEP insulation, bare copper braid shield (95% coverage), FEP jacket.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    89259 010100 100 FT 5.100 LB BLACK   #22 COAX FEP RG59/U
    89259 0101000 1,000 FT 32.000 LB BLACK C #22 COAX FEP RG59/U
    89259 010500 500 FT 16.000 LB BLACK C #22 COAX FEP RG59/U
    Notes:
    C = CRATE REEL PUT-UP.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material Dia. (in.)
    1 22 7x30 BC - Bare Copper .030
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    FFEP - Foam Fluorinated Ethylene Propylene .135
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid BC - Bare Copper 95
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    FEP - Fluorinated Ethylene Propylene
    Overall Cabling
    Overall Nominal Diameter: 0.193 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -70°C To +200°C
    Non-UL Temperature Rating: 200°C
    Bulk Cable Weight: 32 lbs/1000 ft.
    Max. Recommended Pulling Tension: 70 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.500 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMP
    CEC/C(UL) Specification: CMP
    EU CE Mark: No
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    RG Type: 59/U
    Flame Test
    UL Flame Test: NFPA 262
    C(UL) Flame Test: FT6
    Suitability
    Suitability - Outdoor: Yes
    Suitability - Burial: Yes
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Non-Plenum Number: 9259
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    75
    Nom. Inductance:
    Inductance (µH/ft)
    .092
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/ft)
    17.3
    Nominal Velocity of Propagation:
    VP (%)
    78
    Nominal Delay:
    Delay (ns/ft)
    1.3
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    15
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    2.6
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1 .3
    10 .9
    50 2.1
    100 3.0
    200 4.5
    400 6.6
    700 9.0
    900 10.1
    1000 11.0
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
