Belden-8897 AWG18 Rubber MIL-W-13169 B 5000 V, 80°C Hook-up/Lead - Test Prod Wire 美國軍規探針測試棒電子線
8897 |
|

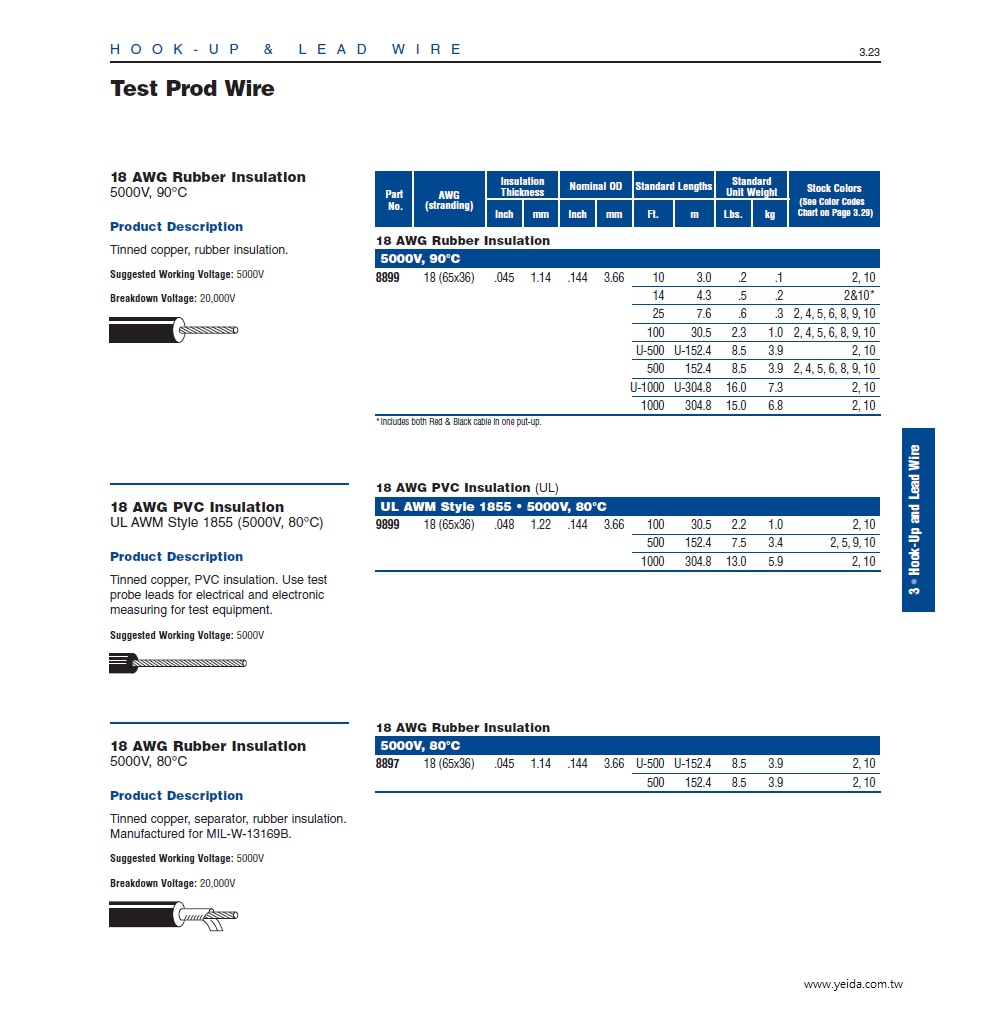

Hook-up/Lead - Test Prod Wire
Tinned copper conductor, separator, rubber insulation. Manufactured for MIL-W-13169B. |
For more Information
please call
1-800-Belden1 |
Item # |
Putup |
Ship Weight |
Color |
Notes |
Item Desc |
8897 002U500 |
500 FT |
8.500 LB |
RED |
|
#18 STR SBR RED |
8897 002500 |
500 FT |
4.500 LB |
RED |
|
#18 STR SBR RED |
8897 010U500 |
500 FT |
8.500 LB |
BLACK |
|
#18 STR SBR BLK |
8897 010500 |
500 FT |
8.500 LB |
BLACK |
|
#18 STR SBR BLK |
|
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors |
AWG |
Stranding |
Conductor Material |
1 |
18 |
65x36 |
TC - Tinned Copper |
|
Insulation
Insulation Material:
Insulation Material |
Wall Thickness (in.) |
Rubber |
.045 |
|
Overall Insulation
Overall Cabling
Overall Nominal Diameter: |
0.144 in. |
Mechanical Characteristics (Overall)
Non-UL Temperature Rating: |
80°C |
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
EU Directive 2000/53/EC (ELV): |
Yes |
EU Directive 2002/95/EC (RoHS): |
Yes |
EU RoHS Compliance Date (mm/dd/yyyy): |
01/01/2004 |
EU Directive 2002/96/EC (WEEE): |
Yes |
EU Directive 2003/11/EC (BFR): |
Yes |
CA Prop 65 (CJ for Wire & Cable): |
Yes |
MII Order #39 (China RoHS): |
Yes |
Military Specification: |
MIL-W-13169 B |
Plenum/Non-Plenum
Electrical Characteristics (Overall)
Breakdown Voltage: |
20, 000 V |
Suggested Working Voltage: |
5, 000 |
|
|
|
|
|
