Belden8898 AWG18 Rubber 90°C, 10,000V Hook-up/Lead - Test Prod Wire 探針測試棒電子線

455483

商品編號: Belden8898,pchome, yahoo, google

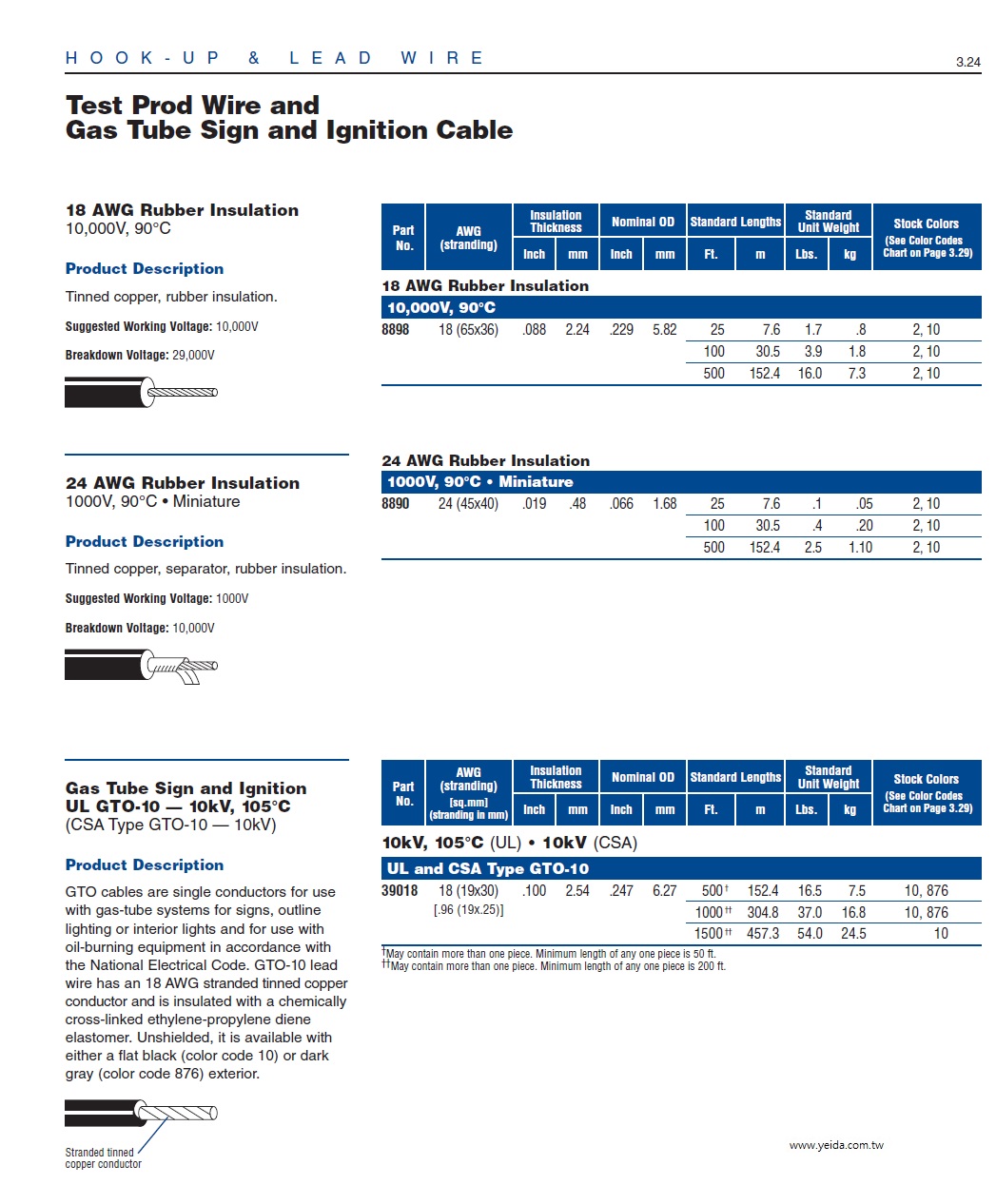

Belden-8898 AWG18 Rubber 90°C, 10,000V Hook-up/Lead - Test Prod Wire 探針測試棒電子線

8898

Hook-up/Lead - Test Prod Wire
Tinned copper conductor, rubber insulation.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
8898 002100	100 FT	3.900 LB	RED		#18 STR EPDM RED
8898 002500	500 FT	15.500 LB	RED	C	#18 STR EPDM RED
8898 010100	100 FT	3.900 LB	BLACK		#18 STR EPDM BLK
8898 010500	500 FT	16.000 LB	BLACK	C	#18 STR EPDM BLK

Notes:
C = CRATE REEL PUT-UP.

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
1	18	65x36	TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
Rubber	.091

Overall Insulation

Overall Cabling

Overall Nominal Diameter:

0.229 in.

Mechanical Characteristics (Overall)

Non-UL Temperature Rating:

90°C

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Electrical Characteristics (Overall)

Breakdown Voltage:

29, 000 V

Suggested Working Voltage:

10, 000 V
