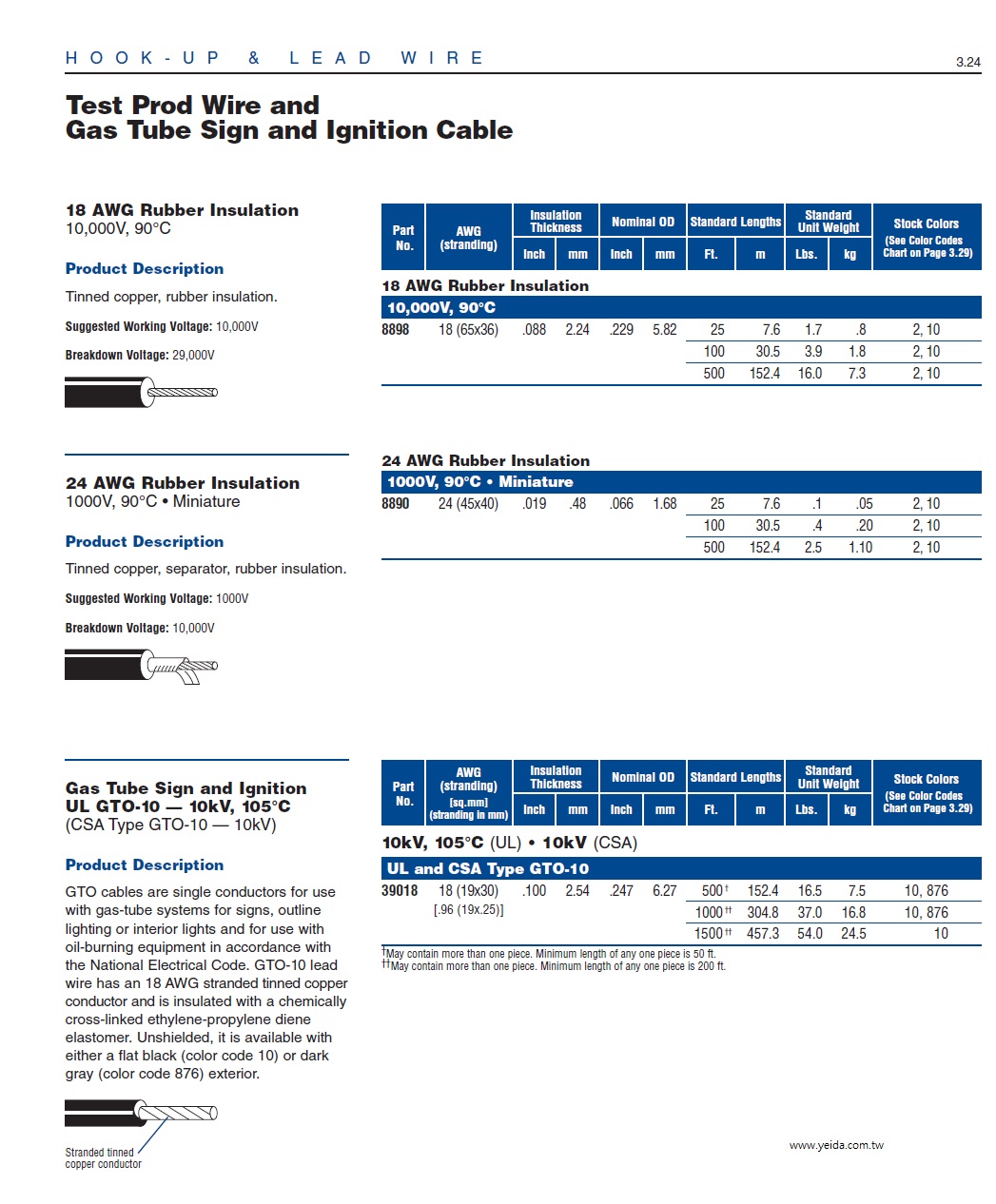

Belden-8890 AWG24 Rubber 90°C, 1,000V Hook-up/Lead - Test Prod Wire 探針測試棒電子線
8890 |
|
Hook-up/Lead - Test Prod Wire
Tinned copper conductor, separator, rubber insulation. |
For more Information
please call
1-800-Belden1 |
Item # |
Putup |
Ship Weight |
Color |
Notes |
Item Desc |
8890 002100 |
100 FT |
0.400 LB |
RED |
|
#24 STR EPDM RED |
8890 002500 |
500 FT |
2.500 LB |
RED |
|
#24 STR EPDM RED |
8890 010100 |
100 FT |
0.400 LB |
BLACK |
|
#24 STR EPDM BLK |
8890 010500 |
500 FT |
2.500 LB |
BLACK |
|
#24 STR EPDM BLK |
|
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors |
AWG |
Stranding |
Conductor Material |
1 |
24 |
45x40 |
TC - Tinned Copper |
|
Insulation
Insulation Material:
Insulation Material |
Wall Thickness (in.) |
Rubber |
.019 |
|
Overall Insulation
Overall Cabling
Overall Nominal Diameter: |
0.066 in. |
Mechanical Characteristics (Overall)
Non-UL Temperature Rating: |
90°C |
Bulk Cable Weight: |
3.300 lbs/1000 ft. |
Min. Bend Radius (Install)/Minor Axis: |
0.660 in. |
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
EU Directive 2000/53/EC (ELV): |
Yes |
EU Directive 2002/95/EC (RoHS): |
Yes |
EU RoHS Compliance Date (mm/dd/yyyy): |
01/01/2004 |
EU Directive 2002/96/EC (WEEE): |
Yes |
EU Directive 2003/11/EC (BFR): |
Yes |
CA Prop 65 (CJ for Wire & Cable): |
Yes |
MII Order #39 (China RoHS): |
Yes |
Plenum/Non-Plenum
Electrical Characteristics (Overall)
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/1000 ft) |
22.500 |
|
Breakdown Voltage: |
10, 000 V |
Suggested Working Voltage: |
1, 000 V |
|
|
|
|
|
